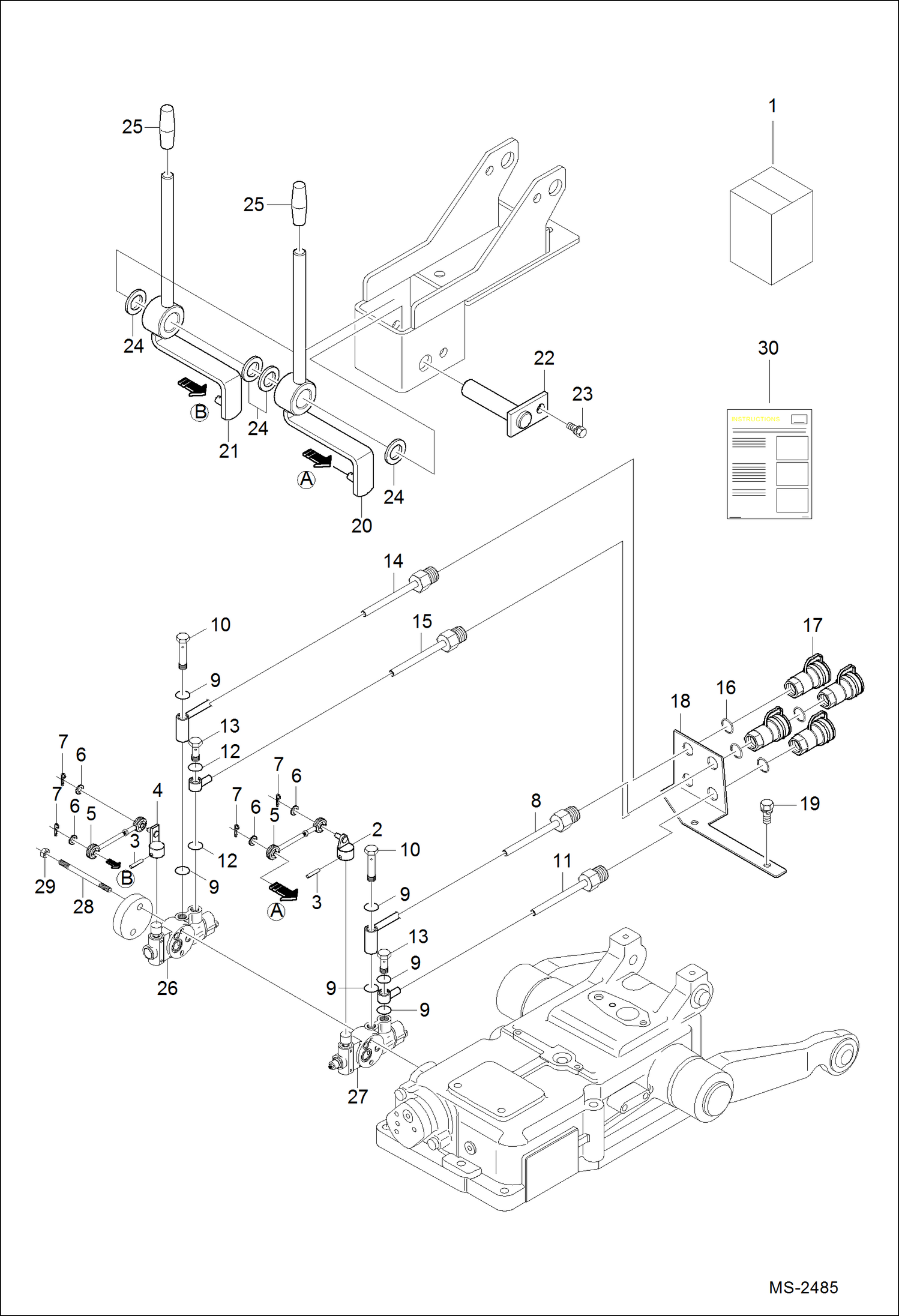

Запчасти Bobcat CT225 AUXILIARY HYDRAULICS KIT (Rear Dual) ACCESSORIES & OPTIONS

1

7150493

DOUBLE ACTING ASSY 2 Was 6698191 - A

2

6697406

LEVER DOUBLE ACTING

3

6694197

PIN SPRING

4

6697405

LEVER DOUBLE ACTING

5

6697565

ROD

6

6697774

WASHER

7

6697496

PIN SNAP Was 6696374 - A

8

7000261

TUBE, HYD A Use W/7000307 snap ring

9

6694137

O-RING

10

6697070

BOLT JOINT

11

7000262

TUBE, HYD B Use W/7000307 snap ring

12

6694137

O-RING

13

6695562

BOLT JOINT

14

7000263

TUBE, HYD C Use W/7000307 snap ring

15

7000264

TUBE, HYD D Use W/7000307 snap ring

16

7000307

RING, SNAP Use W/7000261, 7000262, 7000263, & 7000264 tube

17

6697652

SOCKET, COUPLER

18

6698008

SUPPORT, SOCKET

19

6693978

BOLT

20

6697408

LEVER, DOUBLE ACTING

21

6697419

LEVER, DOUBLE RH

22

6696611

SHAFT, POSITION DRAFT

23

6697053

BOLT

24

6696901

WASHER

25

6696053

HANDLE

26

6697827

VALVE, CONTROL Was 6697824 - B,D

27

6697824

VALVE, CONTROL detented

28

6697681

STUD M10*120MM

29

6697461

NUT, LOCK

30

6697731

TUBELINE, HYD Use W/6694128 washer seal

31

6697732

TUBE D HYD Use W/6694128 washer seal

32

6697729

TUBE A HYD Use W/6694128 washer seal

33

6697730

TUBE B HYD Use W/6694128 washer seal

34

6694128

WASHER SEAL Use W/6694129, 6694130, 6694131 & 6694132 tube

35

6986596

INSTRUCTIONS
