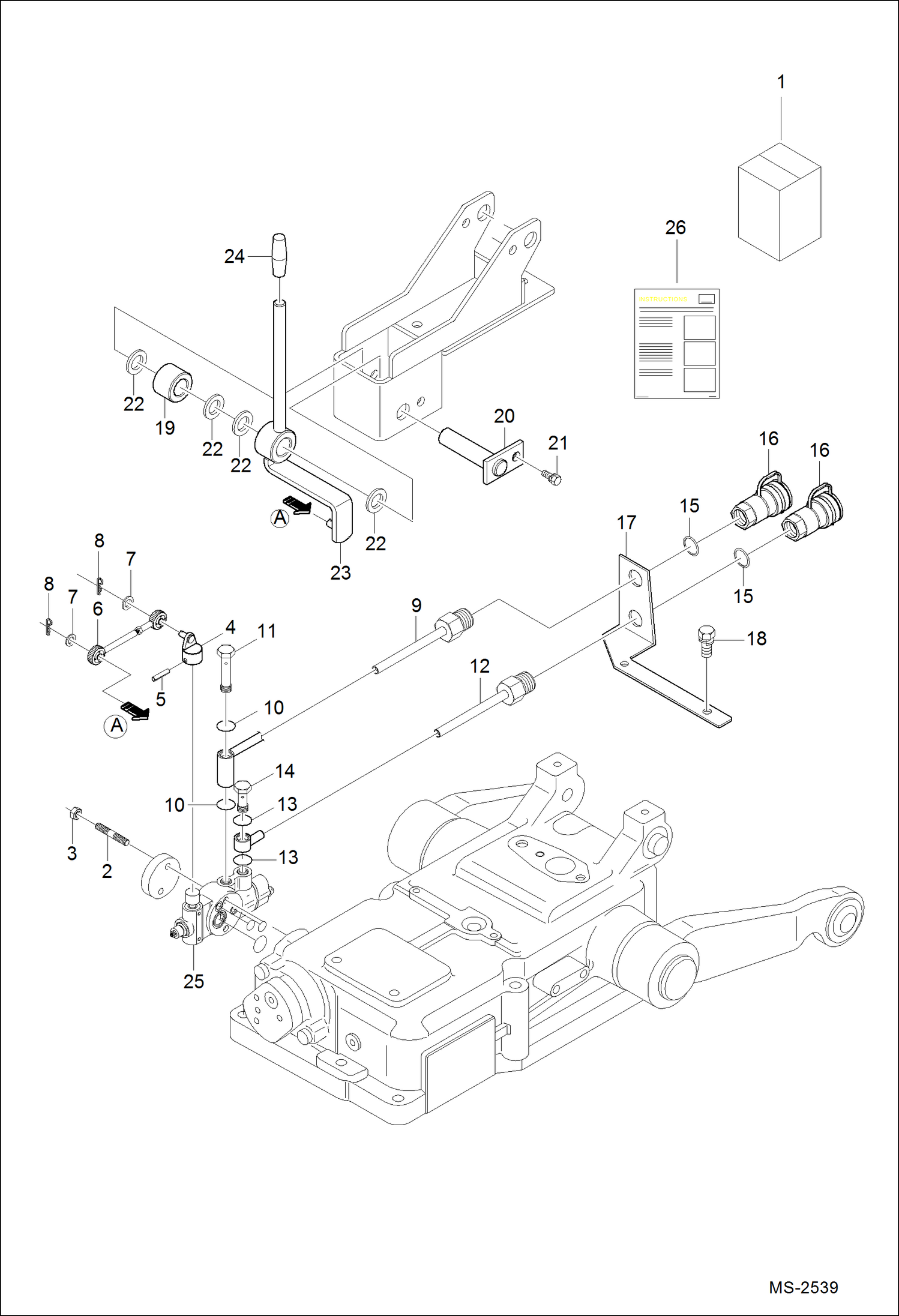

Запчасти Bobcat CT225 AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

1

7150492

KIT, AUX REAR DUAL Was 6698189 - A

2

6697680

STUD M10*73MM

3

6697461

NUT, LOCK

4

6697406

LEVER DOUBLE ACTING

5

6694197

PIN SPRING

6

6697565

ROD

7

6697774

WASHER

8

6697496

PIN SNAP Was 6696374 - A

9

7000261

TUBE, HYD A Use W/7000307 snap ring

10

6694137

O-RING

11

6697070

BOLT JOINT

12

7000262

TUBE, HYD B Use W/7000307 snap ring

13

6694137

O-RING

14

6695562

BOLT JOINT

15

7000307

RING, SNAP Use W/7000261 & 7000262 tube

16

6697652

SOCKET, COUPLER

17

6697703

SUPPORT SOCKET

18

6693978

BOLT

19

6696703

SPACER 1.18'' long plastic - use with 4 of Ref. 22 washer

19

7002849

SPACER Use with 1 of Ref. 22 washer

20

6696611

SHAFT, POSITION DRAFT

21

6697053

BOLT

22

6696901

WASHER

23

6697408

LEVER, DOUBLE ACTING

24

6696053

HANDLE

25

6697824

VALVE, CONTROL detented

26

6697729

TUBE A HYD Use W/6694128 washer seal

27

6697730

TUBE B HYD Use W/6694128 washer seal

28

6694128

WASHER SEAL Use W/6694129 & 6694130 tube

29

6986755

INSTRUCTIONS
