Запчасти Bobcat CT225 AIR CLEANER GROUP (S/N A59B11001 & Above) POWER UNIT

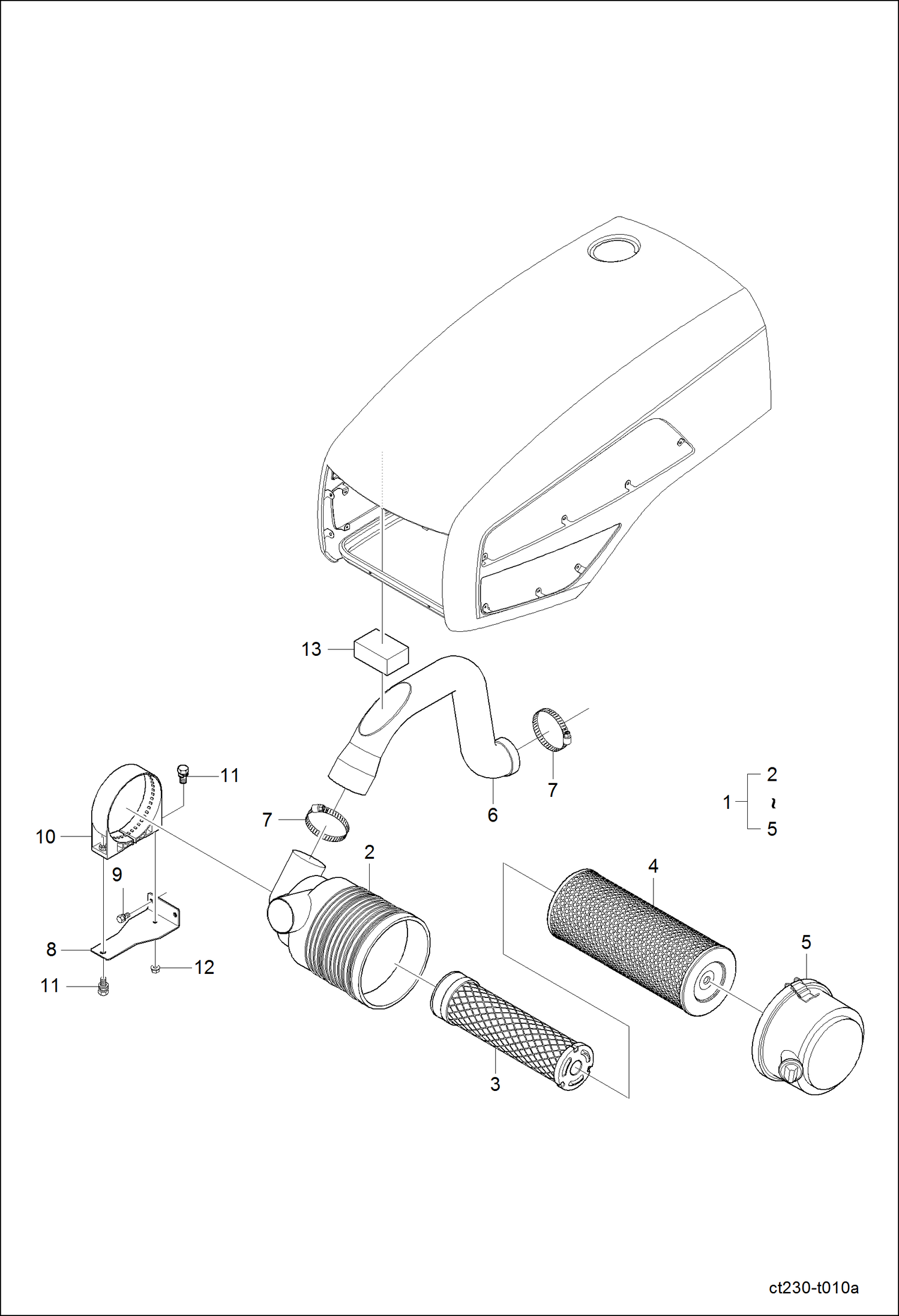

Схема запчастей Bobcat CT225 - AIR CLEANER GROUP (S/N A59B11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

7001980

FILTER, AIR CLEANER ASSY Was 6697221 - A

2

6695356

HOUSING, AIR CLEANER

3

6666334

FILTER, AIR INNER

4

6666333

FILTER, AIR OUTER

5

6695807

COVER

5

6675701

VALVE

6

6697355

HOSE, INLET

7

6695362

CLAMP

8

6695619

BRACKET (AIRCLEANER)

9

6697053

BOLT

10

6696095

BRACKET, AIR CLEANER

11

6693976

BOLT

12

6694062

NUT FLANGE

13

6695119

FOAM

Выбрано товаров: 14
