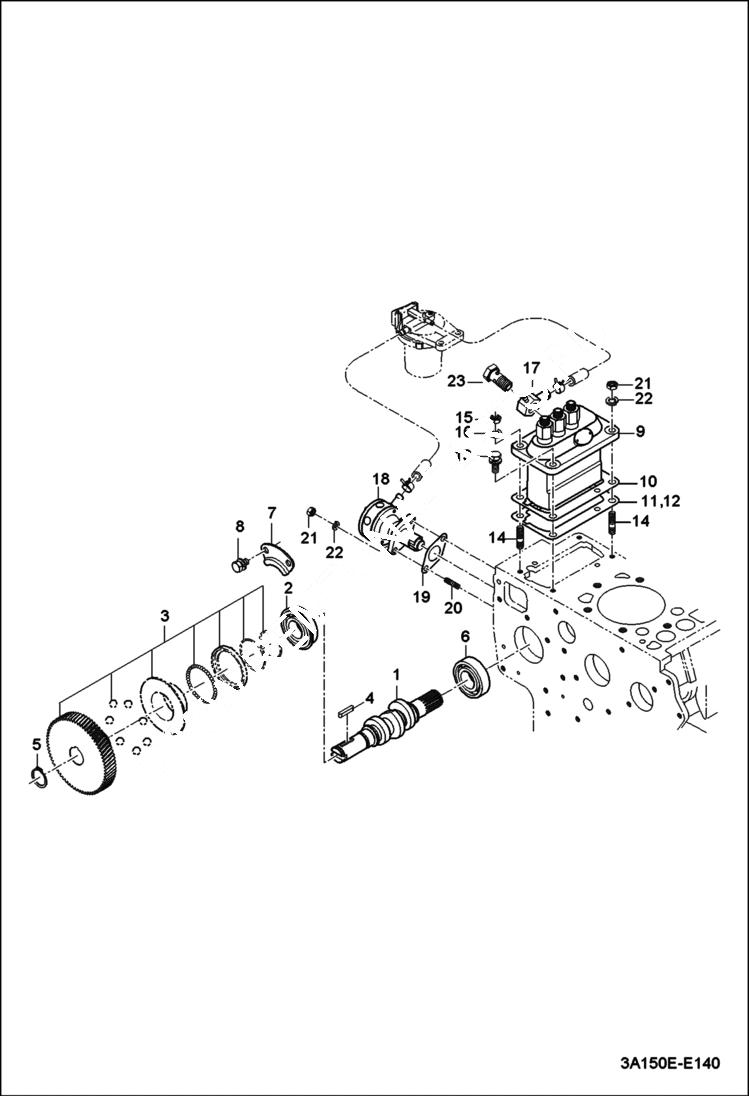

Запчасти Bobcat CT225 FUEL CAMSHAFT GROUP (S/N ABFJ11001 & Above) POWER UNIT

1

6696619

SHAFT FUEL CAM

2

6695465

BEARING BALL

3

6695325

GEAR INJECTION PUMP

4

6696168

KEY

5

6696688

RING SNAP

6

6695466

BEARING BALL

7

6695940

STOP

8

6693964

BOLT

9

7010229

PUMP, FUEL INJ Was 6697017 - C

10

6694603

SHIM, PUMP INJ 0.15 mm thick

11

6694604

SHIM 0.30 mm thick

12

6694753

SHIM, PUMP INJ 0.10 mm thick

13

6697055

BOLT

14

6694011

STUD

15

6694053

NUT

16

6697775

WASHER SPRING

17

6694767

JOINT, HOSE FUEL

18

6694329

PUMP, FUEL

19

6694759

GASKET, PUMP FUEL

20

6694007

STUD

21

6694040

NUT

22

6694092

WASHER SPRING

23

6695899

BOLT, EYE
