Запчасти Bobcat CT225 SPEED CONTROL PLATE GROUP (S/N ABFJ11001 & Above) POWER UNIT

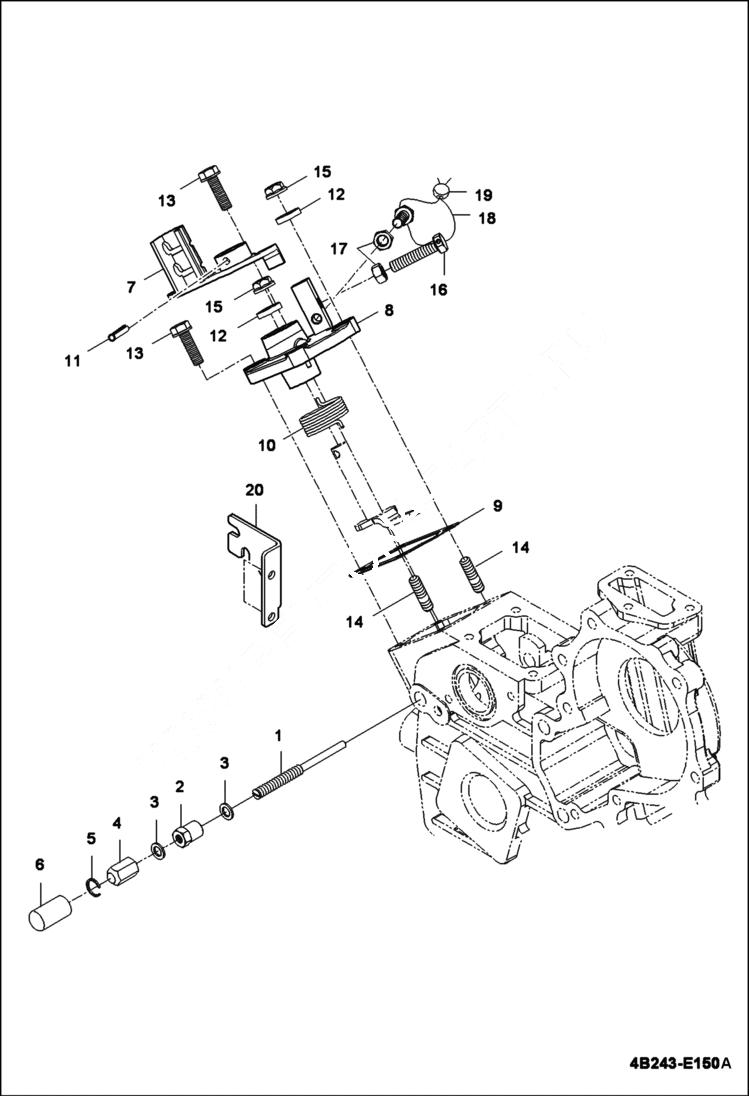

Схема запчастей Bobcat CT225 - SPEED CONTROL PLATE GROUP (S/N ABFJ11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6697071

BOLT ADJUSTING

2

6696251

NUT

3

6695953

GASKET

4

6695690

CAP NUT

5

6696690

RING SNAP

6

6695685

CAP security

7

6697429

LEVER SPEED CONTROL

8

6696440

PLATE SPEED CONTROL

9

6697263

GASKET, SPEED CONTROL

10

6696734

SPRING

11

6694193

PIN SPRING

12

6694333

OIL SEAL

13

6695558

BOLT FLANGE Was 6693946 - B

14

6694316

STUD

15

6696258

NUT FLANGE Was 6696243 - B

16

6694301

BOLT stop

17

6694040

NUT

18

6697786

WIRE

19

6697620

SEAL, LEAD

20

6697091

BRACKET CABLE

Выбрано товаров: 20
