Запчасти Bobcat CT225 WATER PUMP GROUP (S/N ABFJ11001 & Above) POWER UNIT

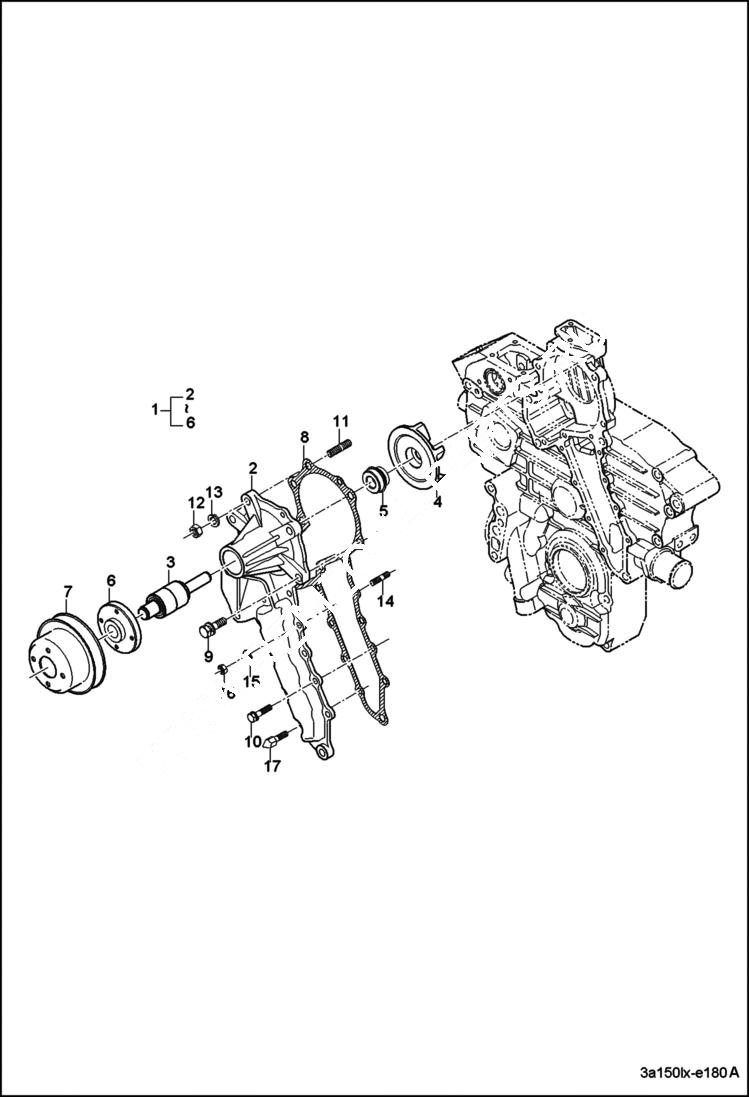

Схема запчастей Bobcat CT225 - WATER PUMP GROUP (S/N ABFJ11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6697555

PUMP WATER

2

HOUSING WATER PUMP NLA - Order Ref. 1

3

BEARING WATER PUMP NLA - Order Ref. 1

4

PUMP IMPELLAR NLA - Order Ref. 1

5

SEAL MECHANICAL NLA - Order Ref. 1

6

FLANGE NLA - Order Ref. 1

7

6696465

PULLEY FAN

8

6697265

GASKET, PUMP WATER

9

6695502

BOLT

10

6693945

BOLT

11

6696781

STUD

12

6694053

NUT

13

6697775

WASHER SPRING

14

6694316

STUD

15

6694092

WASHER SPRING

16

6694040

NUT

17

6696832

BOLT TIMING

Выбрано товаров: 17
