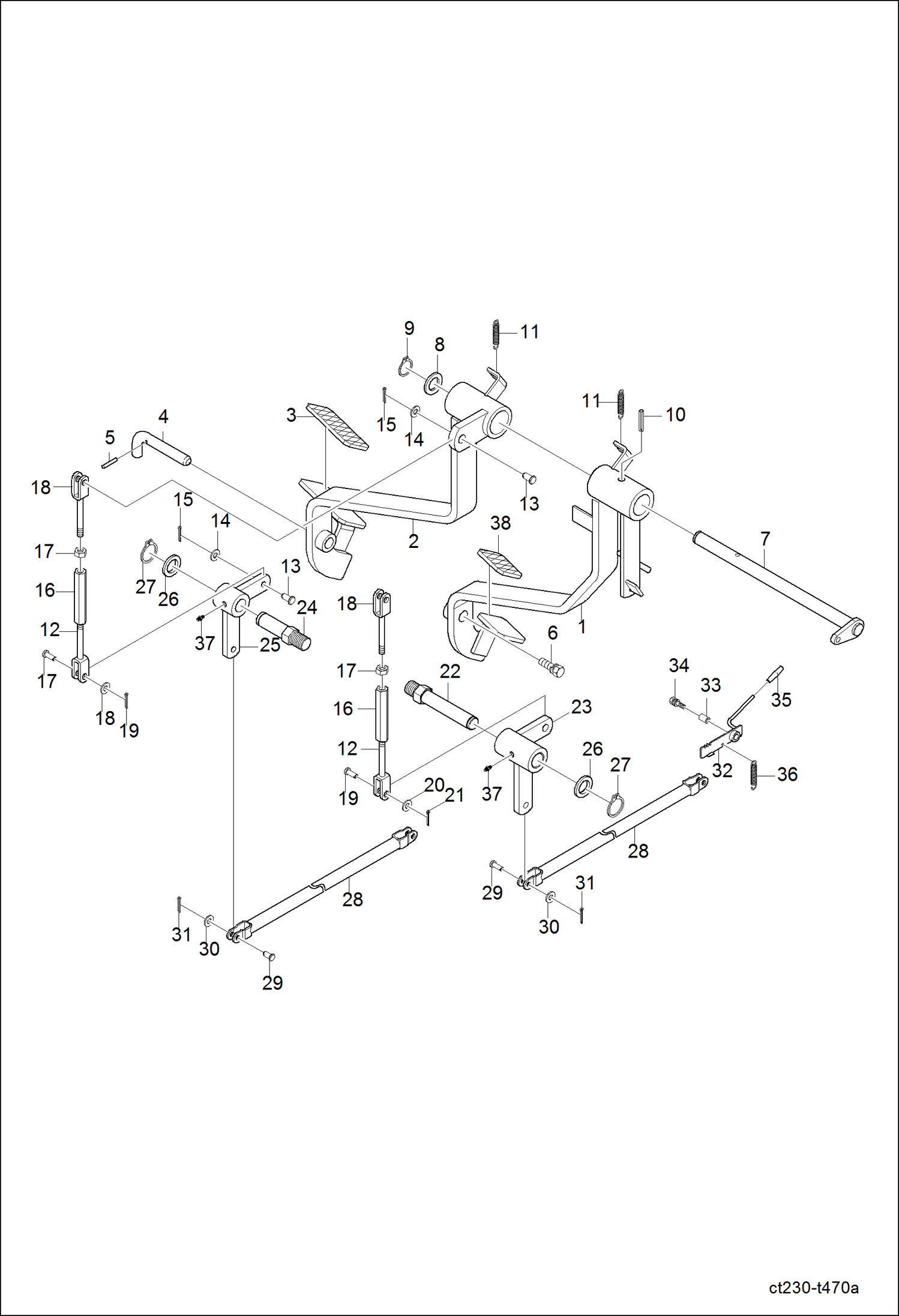

Запчасти Bobcat CT225 BRAKE PEDAL GROUP MAIN FRAME

1

7000833

PEDAL, BRAKE Was 6697474 - C

2

6697471

PEDAL, BRAKE RH

3

6695823

COVER, PEDAL

4

6695192

PIN, BRAKE PEDAL

5

6694192

PIN SPRING

6

6693958

BOLT

7

6697644

SHAFT, PEDAL BRAKE

8

6694432

SPACER

9

6694110

RING SNAP

10

6694203

PIN SPRING

11

6695194

SPRING, PEDAL CLUTCH

12

6696502

ROD BRAKE

13

6696361

PIN JOINT

14

6697780

WASHER

15

6694206

PIN SPLIT

16

6696880

TURNBUCKLE

17

6694048

NUT

17

6694059

NUT

18

6695631

ROD, BRAKE

19

6696361

PIN JOINT

20

6697780

WASHER

21

6694206

PIN SPLIT

22

6695632

SHAFT, BRAKE LH

23

6697416

LEVER BRAKE LH

24

6695633

SHAFT, BRAKE RH

25

6697415

LEVER, BRAKE RH

26

6697778

WASHER

27

6694109

RING SNAP

28

6697572

ROD BRAKE

29

6694184

PIN JOINT

30

6697774

WASHER

31

6697497

PIN SPLIT

32

7000271

LEVER, SET Was 6697426 - A

33

6695193

SPACER

34

6697058

BOLT

35

6695191

HANDLE GRIP

36

6694401

SPRING, RETURN

37

6694226

FITTING, GREASE

38

7000268

COVER, PEDAL
