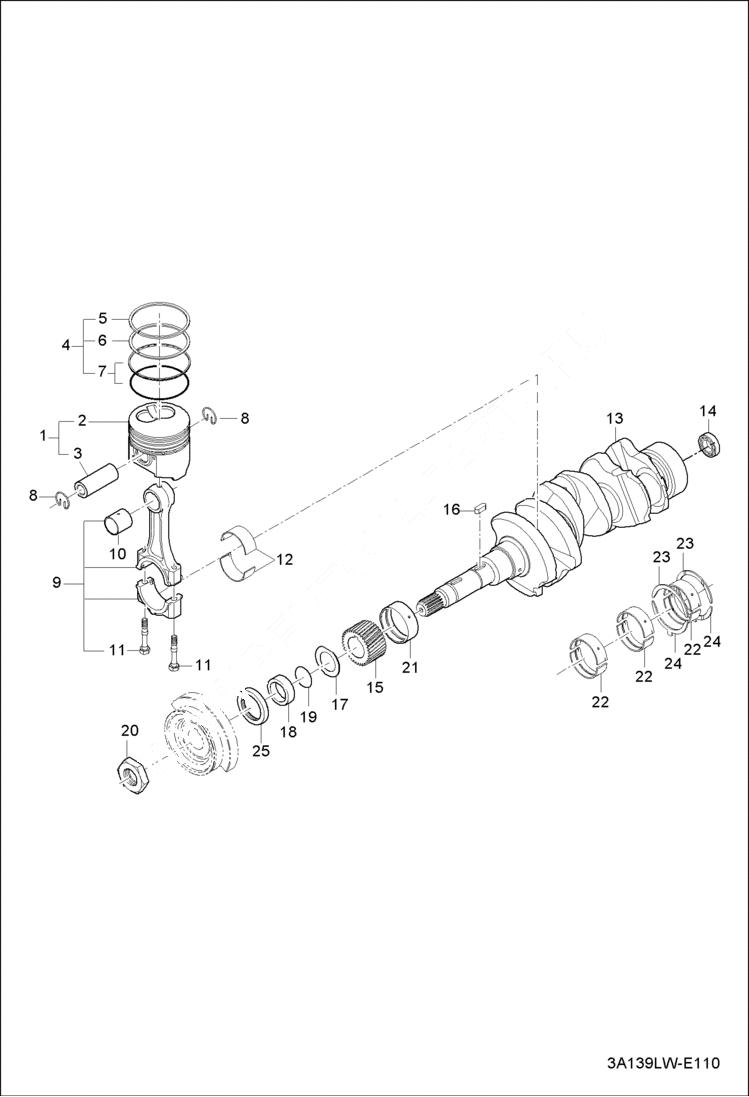

Запчасти Bobcat CT225 PISTON CRANKSHAFT GROUP (S/N ABFJ11001 & Above) POWER UNIT

1

7012669

PISTON, ENG W/Ref. 3

2

PISTON ASSY W PIN NLA - Order Ref. 1

3

6696403

PISTON, PIN

4

7000296

RING, OIL ENG set - Ref. 5-7

5

7000297

RING, PISTON

6

7000298

RING, PISTON

7

7000299

RING, OIL ENG

8

6695721

CLIP CIR

9

6697573

ROD CONNECTING

10

6695664

BUSHING, PIN PISTON

11

6697076

BOLT ROD

12

6696229

BEARING, CRANK PIN

13

6695405

CRANKSHAFT

14

6695459

BEARING BALL

15

6696010

GEAR CRANKSHAFT

16

6696169

KEY

17

6696298

PUMP, SLINGER OIL

18

6695758

BUSHING, CRANKSHAFT

19

6696273

O-RING

20

6695858

NUT CRANKSHAFT

21

6695856

BEARING CRANKSHAFT

22

6695857

BEARING CRANKSHAFT

23

6696679

BEARING, THRUST

24

6696680

BEARING THRUST

25

6696296

SEAL OIL
