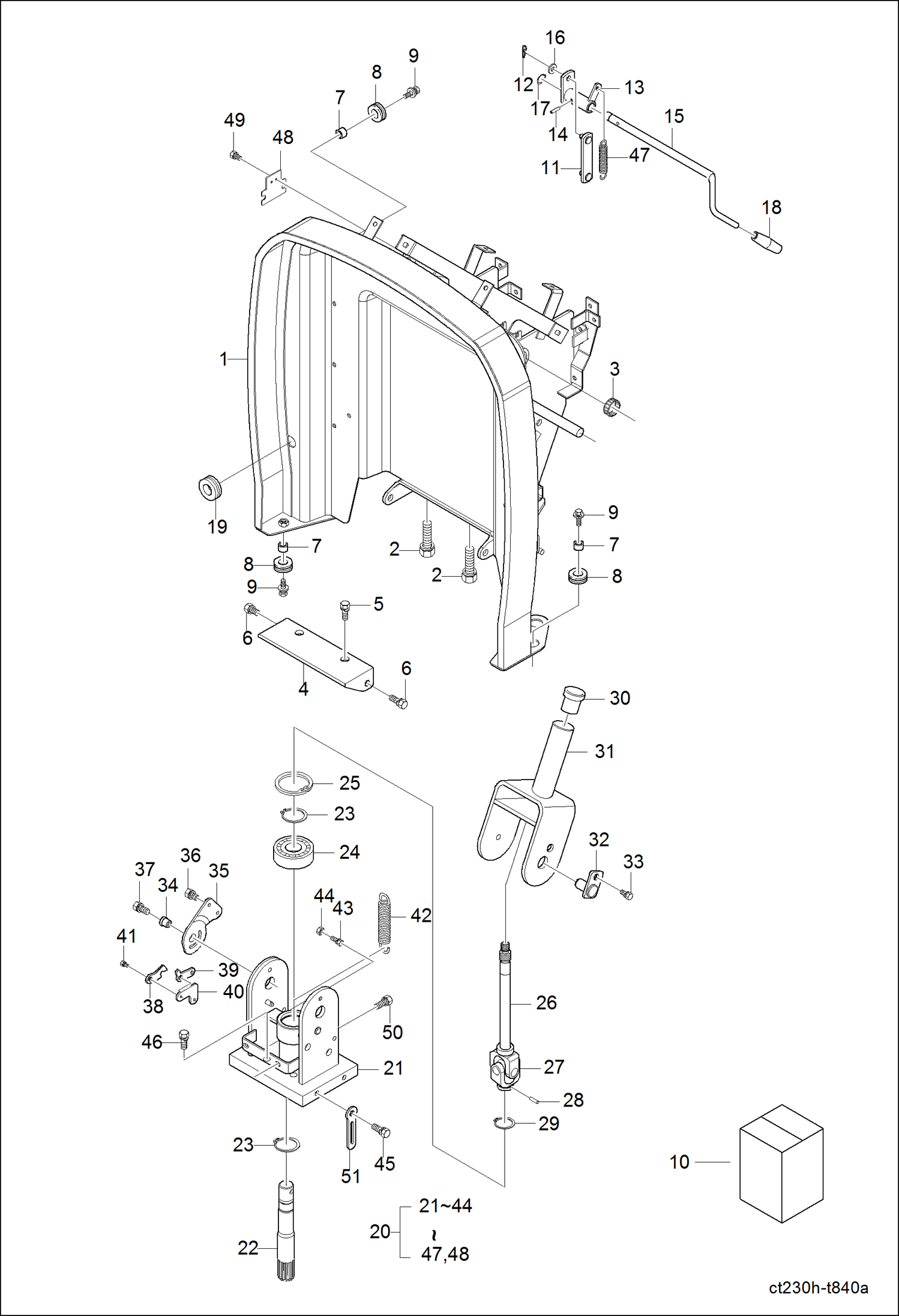

Запчасти Bobcat CT225 FRAME GROUP MAIN FRAME

1

6697228

FRAME

2

6693989

BOLT

3

6694272

BEARING NEEDLE

4

6697341

HOLDER, FRAME

5

6697061

BOLT

6

6695512

BOLT

7

6695127

SPACER

8

6695128

GROMMET

9

6693977

BOLT

10

6693975

BOLT

11

6696214

ROD, TILT

12

6694211

PIN, SNAP

13

6695287

ARM, CONNECT

14

6696382

PIN SPRING

15

6696193

LEVER, TILT

16

6696912

WASHER PLAIN

17

6697561

RING SNAP

18

6696053

HANDLE

19

6694353

GROMMET

20

6697675

CONTROLLER, STEERING ASSY

21

6697704

SUPPORT, STEERING

22

6696597

SHAFT

23

6694106

RING SNAP

24

6695461

BEARING BALL

25

6696492

RING SNAP

26

6697642

SHAFT STEERING

27

6695434

SWIVEL, U- JOINT

28

6696384

PIN SPRING

29

6694110

RING SNAP

30

6696543

BUSHING, RUBBER

31

6696763

COLUMN, STEERING

32

6696414

PLATE

33

6697053

BOLT

34

6696715

SPACER

35

6696034

GEAR SECTOR

36

6697059

BOLT

37

6693981

BOLT

38

6696033

LEVER, TILT

39

6696178

LEVER

40

6696415

PLATE

41

6697049

BOLT

42

6696754

SPRING, TILT

43

6695493

BOLT

44

6694047

NUT

45

6693979

BOLT

46

6693972

BOLT

47

6696742

SPRING

48

6695168

PLATE See Illustration ELECTRICAL SYSTEM 2 GROUP/ CT230-T940A

48

7015284

PLATE See Illustration ELECTRICAL SYSTEM 2 GROUP/ CT230-T940A

49

6693956

BOLT

50

6693957

BOLT
