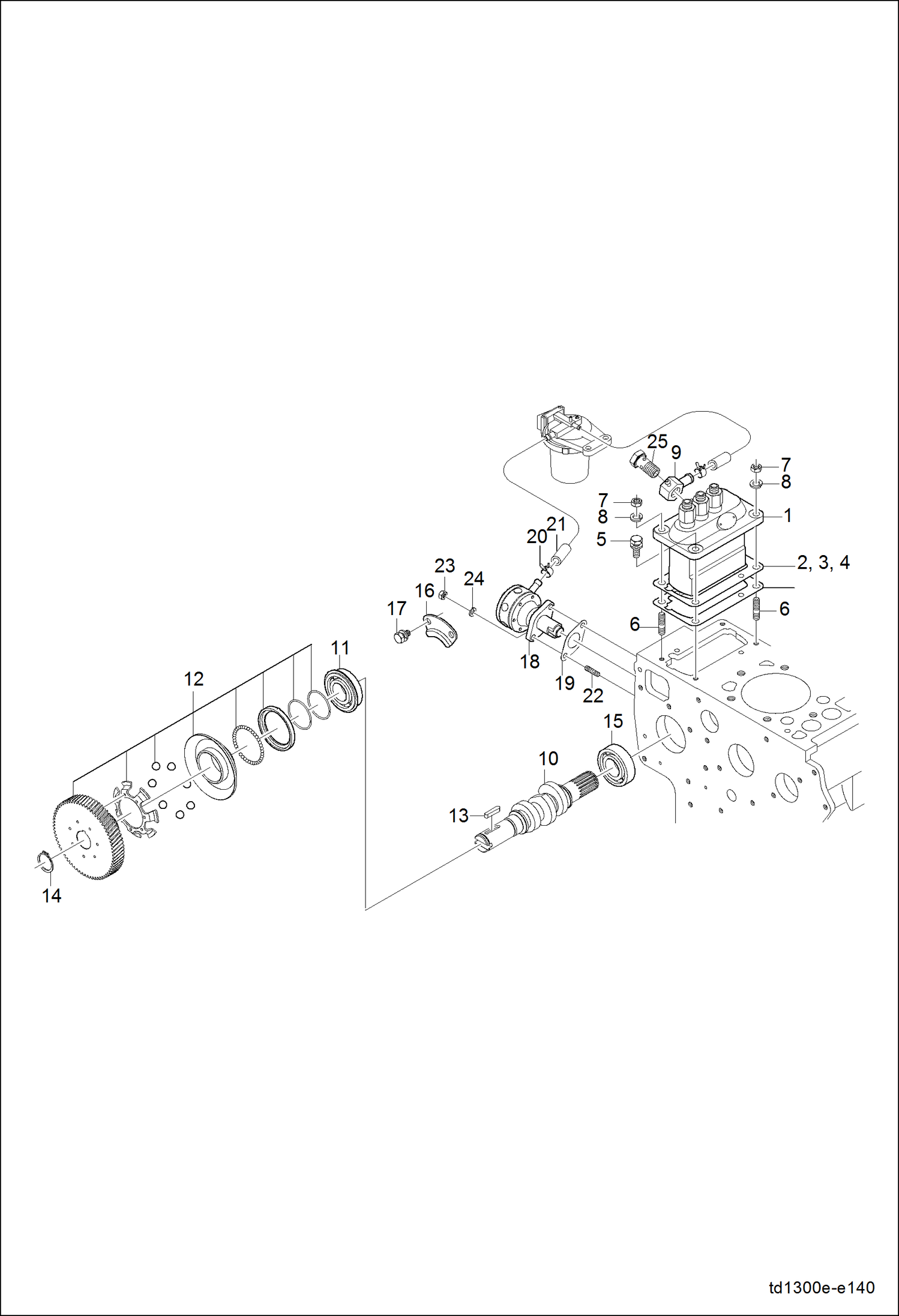

Запчасти Bobcat CT225 FUEL CAMSHAFT GROUP (S/N A59B11001 & Above) POWER UNIT

1

7010240

PUMP, FUEL INJ Was 6697553 - A

2

6694603

SHIM, PUMP INJ 0.15 mm thick

3

6694604

SHIM 0.30 mm thick

4

6694753

SHIM, PUMP INJ 0.10 mm thick

5

6697055

BOLT

6

6694011

STUD

7

6694053

NUT

8

6697775

WASHER SPRING

9

6694767

JOINT, HOSE FUEL

10

6696634

CAMSHAFT, FUEL

11

6695465

BEARING BALL

12

6696049

SLEEVE, ASSY GOVERNOR

13

6696168

KEY

14

6696688

RING SNAP

15

6695458

BEARING BALL

16

6695940

STOP

17

6693964

BOLT

18

6694329

PUMP, FUEL

19

6694759

GASKET, PUMP FUEL

20

6694297

CLAMP, HOSE

21

6697354

HOSE FUEL

22

6694007

STUD

23

6694040

NUT

24

6694092

WASHER SPRING

25

6695899

BOLT, EYE
