Запчасти Bobcat CT225 MAIN BEARING CASE GROUP (S/N A59B11001 & Above) POWER UNIT

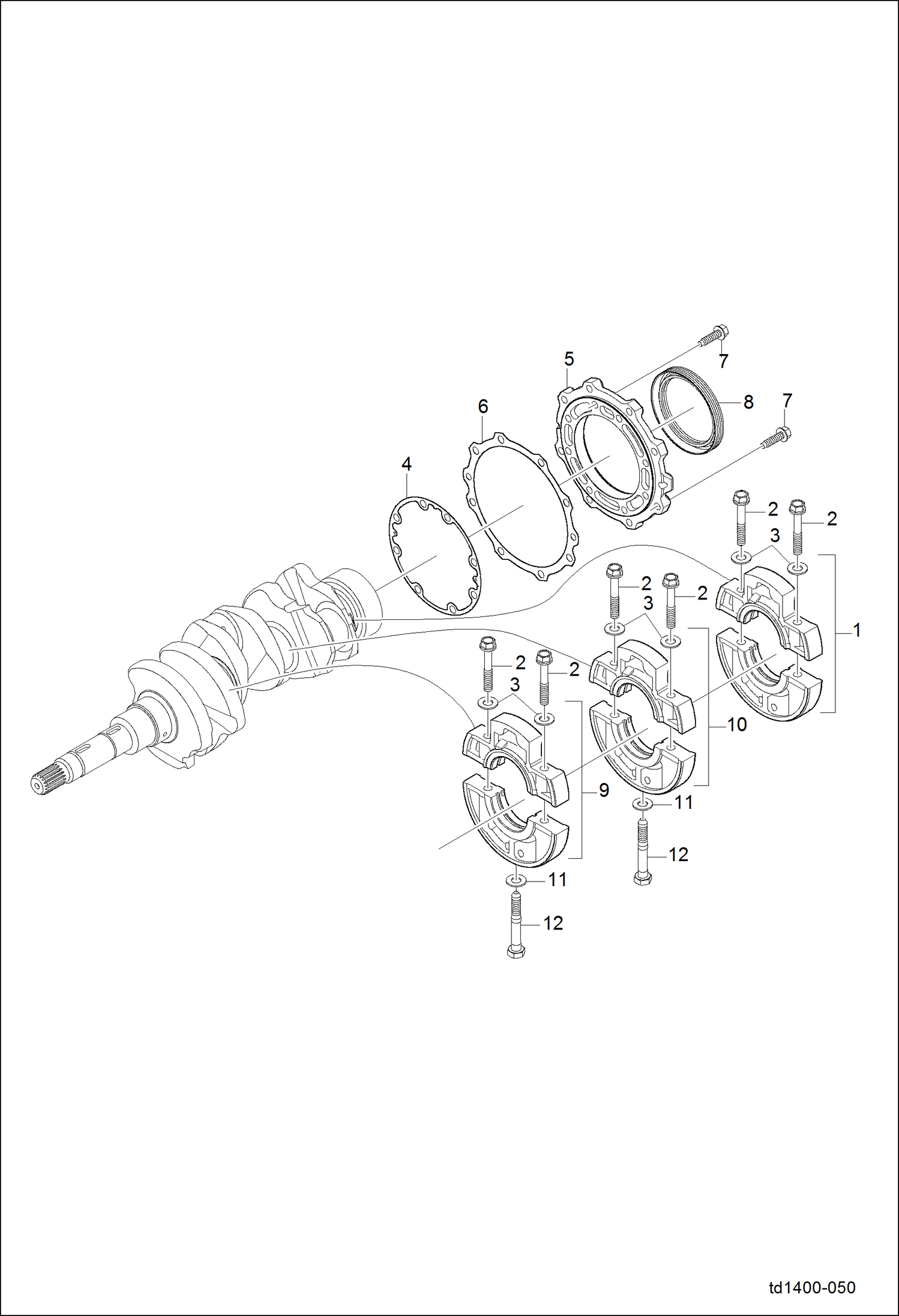

Схема запчастей Bobcat CT225 - MAIN BEARING CASE GROUP (S/N A59B11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6695419

HOUSING, MAIN BEARING

2

6695581

BOLT BEARING CASE1

3

6694339

WASHER PLAIN

4

6695966

GASKET, BEARING

5

6697186

COVER BEARING CASE

6

6697267

GASKET, COVER

7

6695921

BOLT FLANGE

8

6696295

SEAL OIL

9

6696216

HOUSING, BEARING MAIN ASSY

10

6696217

HOUSING MAIN BEARING ASSY

11

6695475

BOLT BEARINGCASE

12

6696916

WASHER PLAIN

Выбрано товаров: 12
