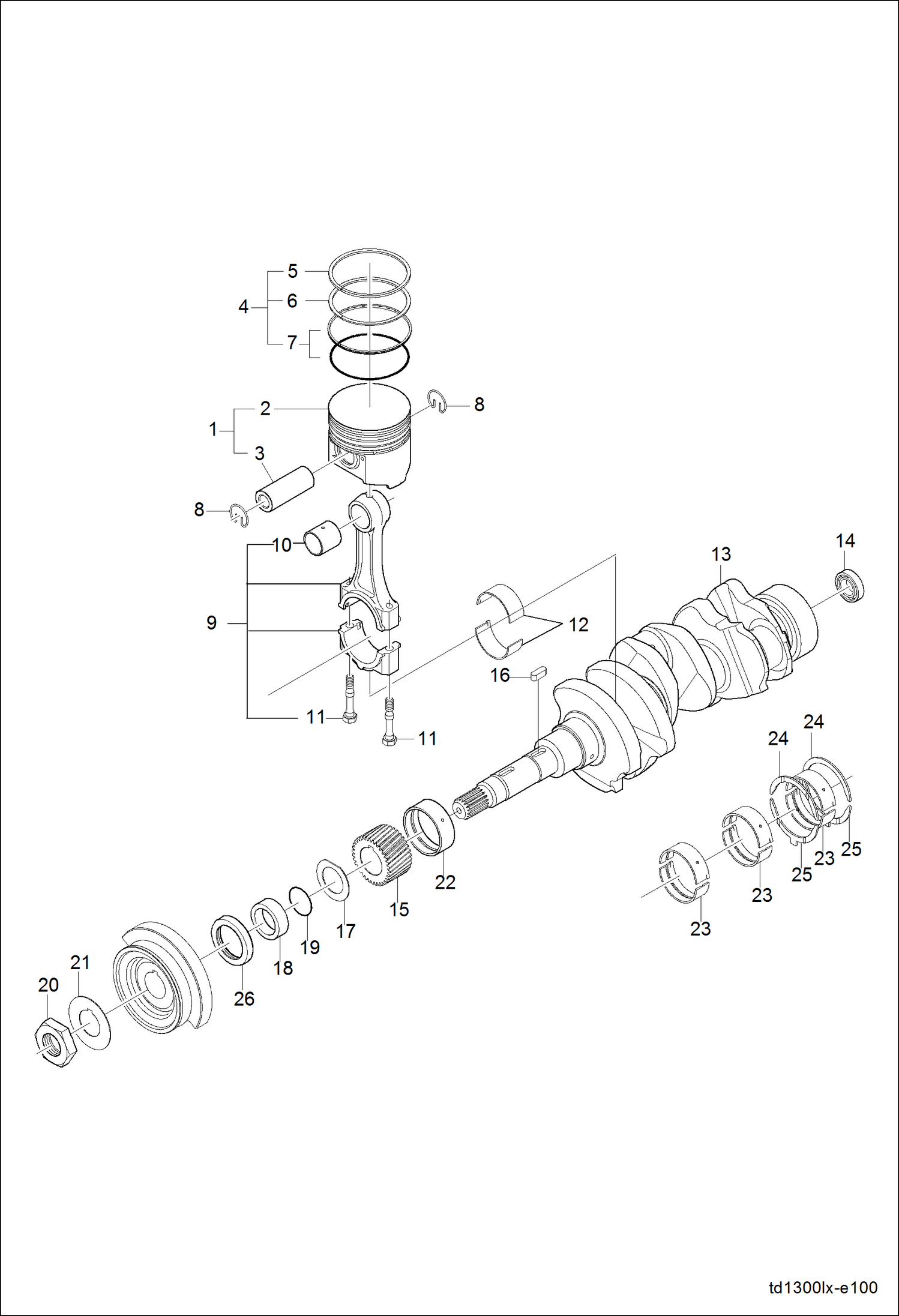

Запчасти Bobcat CT225 PISTON CRANK AXLE GROUP (S/N A59B11001 & Above) POWER UNIT

1

6695423

PISTON, ASSY W PIN

2

PISTON ASSY W PIN NLA - Order Ref. 1

3

6696369

PIN, PISTON ENG

4

6695429

RING PISTON

5

6696481

RING PISTON

6

6696483

RING PISTON

7

6695421

RING, OIL ASSY

8

6695720

CLIP CIR

9

6697570

ROD, CONNECTING ASSY

10

6695664

BUSHING, PIN PISTON

11

6697076

BOLT ROD

12

6696229

BEARING, CRANK PIN

13

6695405

CRANKSHAFT

14

6695459

BEARING BALL

15

6696010

GEAR CRANKSHAFT

16

6696169

KEY

17

6696298

PUMP, SLINGER OIL

18

6695758

BUSHING, CRANKSHAFT

19

6696273

O-RING

20

6695858

NUT CRANKSHAFT

21

6695856

BEARING CRANKSHAFT

22

6695857

BEARING CRANKSHAFT

23

6696679

BEARING, THRUST

24

6696680

BEARING THRUST

25

6696296

SEAL OIL
