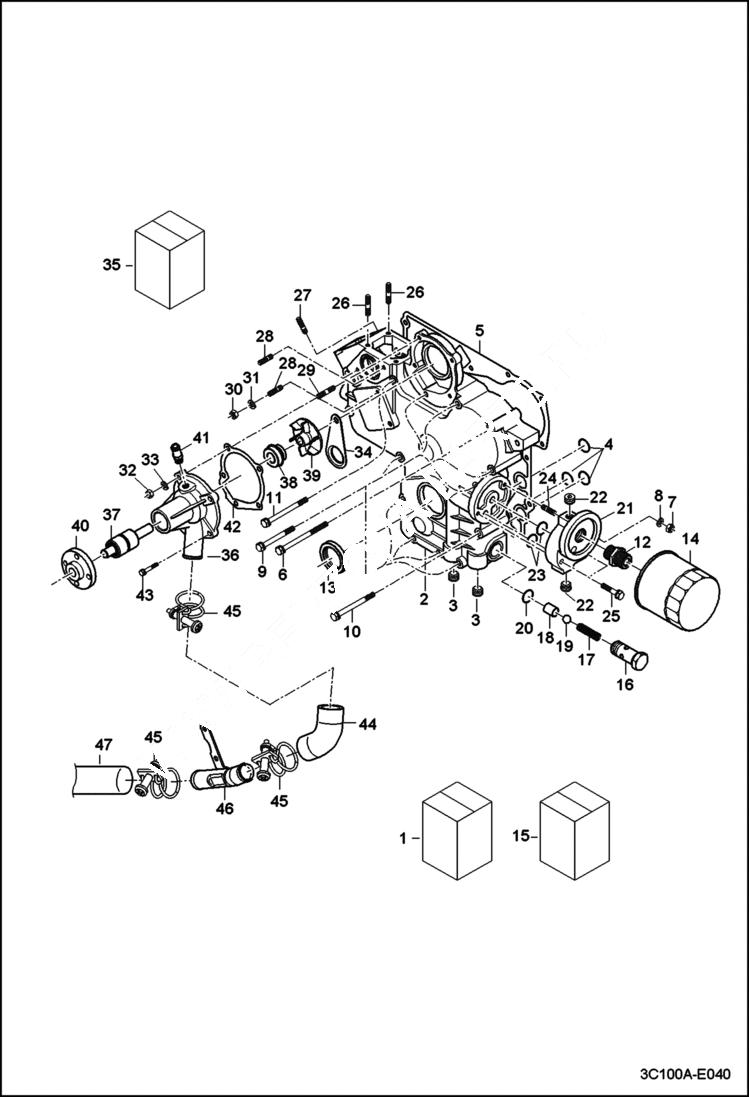

Запчасти Bobcat CT122 GEAR CASE GROUP (With Water Pump) POWER UNIT

1

7000901

GEARCASE ASSY

2

7000843

GEAR CASE

3

6694758

PLUG

4

6694154

SEAL O RING

5

7000844

GASKET,GEAR CASE

6

6694720

BOLT, W/WASHER

7

6694040

NUT

8

6694092

WASHER SPRING

9

6693952

BOLT

10

6693953

BOLT

11

6693954

BOLT

12

6694510

TUBE CONNECTING

13

6694276

SEAL OIL

14

6694509

FILTER ENGINE OIL

15

7000831

ASSY, RELIEF VALVE

16

6697039

HOUSING BODY

17

6694318

SPRING

18

6694649

SEAT VALVE

19

6694233

BALL STEEL

20

6694134

SEAL O RING

21

6694645

SUPPORT OIL FILTER

22

6694758

PLUG

23

6694153

SEAL O RING

24

6694007

STUD

25

6693949

BOLT

26

6694007

STUD

27

6694007

STUD

28

6695539

STUD

29

6695539

STUD

30

6694040

NUT

31

6694092

WASHER SPRING

32

6694040

NUT

33

6694092

WASHER SPRING

34

6694575

CLAMP HOSE

35

7000895

ASSY PUMP,WATER

36

7000896

MAIN BODY,WATER PUMP

37

6694581

BEARING

38

6694755

SEAL, MECHANICAL

39

7000898

WATER PUMP IMPELLER

40

6694580

FLANGE, WATER PUMP

41

6694672

HOSE WATER RETURN

42

7000897

WATER PUMP GASKET

43

6693947

HEATER CASING

44

6694571

HOSE 3 WATER

45

6694702

CLAMP HOSE

46

7000893

HOSE, WATER

47

6694570

HOSE 2 WATER
