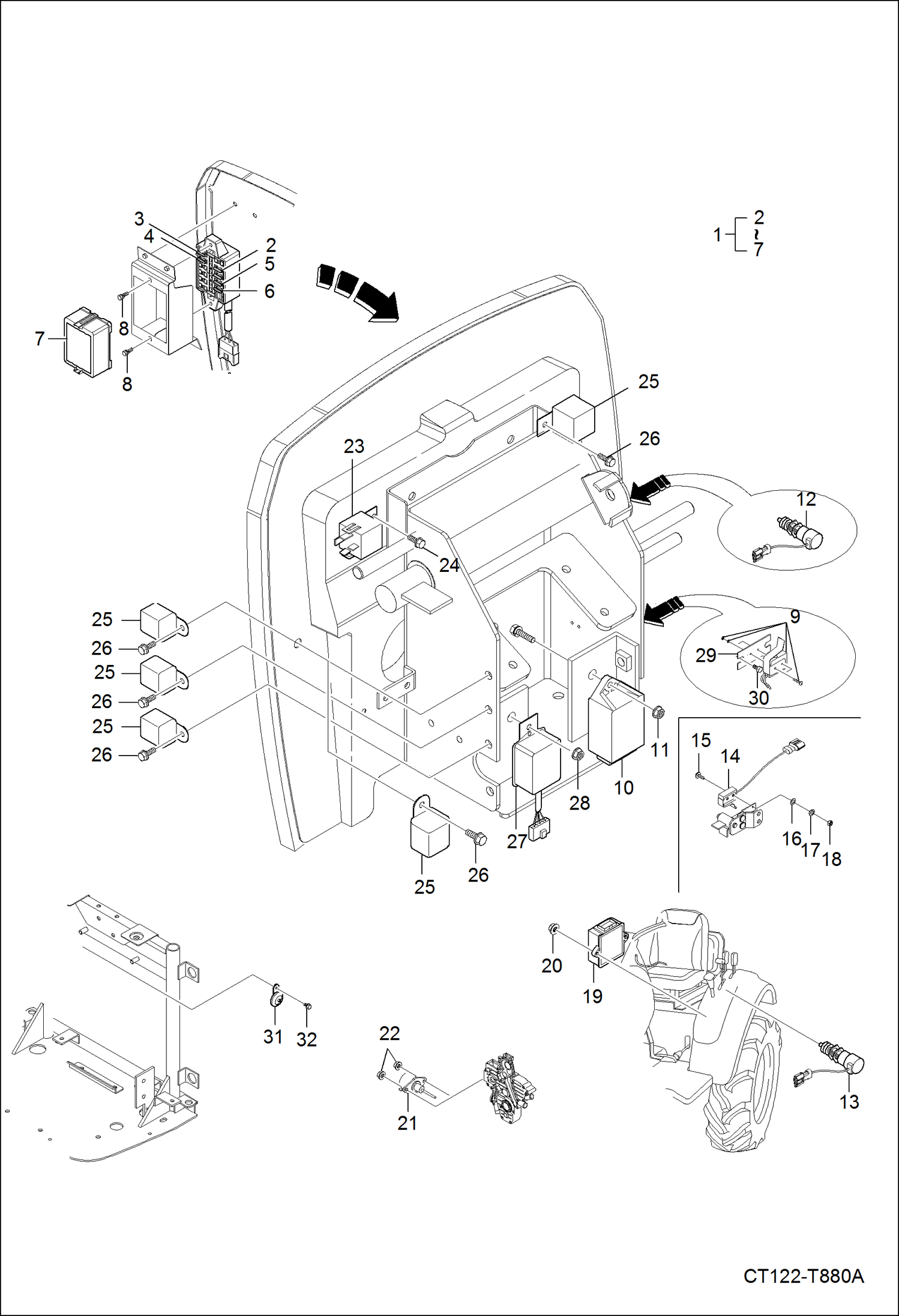

Запчасти Bobcat CT122 ELECTRICAL SYSTEM 2 GROUP ELECTRICAL SYSTEM

1

6697080

PANEL, FUSE BOX

2

6654803

FUSE 5A Was 6697237 - A

3

6625575

FUSE, 20A Was 6694380 - A

4

6654806

FUSE, 15A Was 6694371 - A

5

6654805

FUSE 10A Was 6697235 - A

6

7001051

FUSE 7.5A Was 6697234 - A

7

6694395

COVER

8

6693946

BOLT

9

SWITCH MICRO NLA - Order 7013181 switch and 7015284 plate - Was 6694391 - A

9

7013181

SWITCH, MICRO

10

6697980

FLASHER

11

6696243

NUT

12

7000912

ASSY SWITCH,STOP

13

6697995

SWITCH, SAFETY STARTER

14

6697715

SWITCH, MICRO

15

6694068

BOLT SCREW

16

6694075

WASHER PLAIN

17

6696922

WASHER SPRING

18

6694036

NUT

19

7000274

CONTROLLER, OPERATING UNIT

20

6696258

NUT FLANGE

21

7002157

SOLENOID, ENG STOP 3 prong connector - Was 6697653 - A

22

6696258

NUT FLANGE

23

7013278

RELAY Was 6697556 - A

24

6694024

BOLT FLANGE

25

6697557

RELAY - A

26

6694024

BOLT FLANGE

27

6697546

RELAY, PREHEATER

28

6696258

NUT FLANGE

29

6695168

PLATE

30

6697049

BOLT

31

6697823

HORN

32

6697049

BOLT
