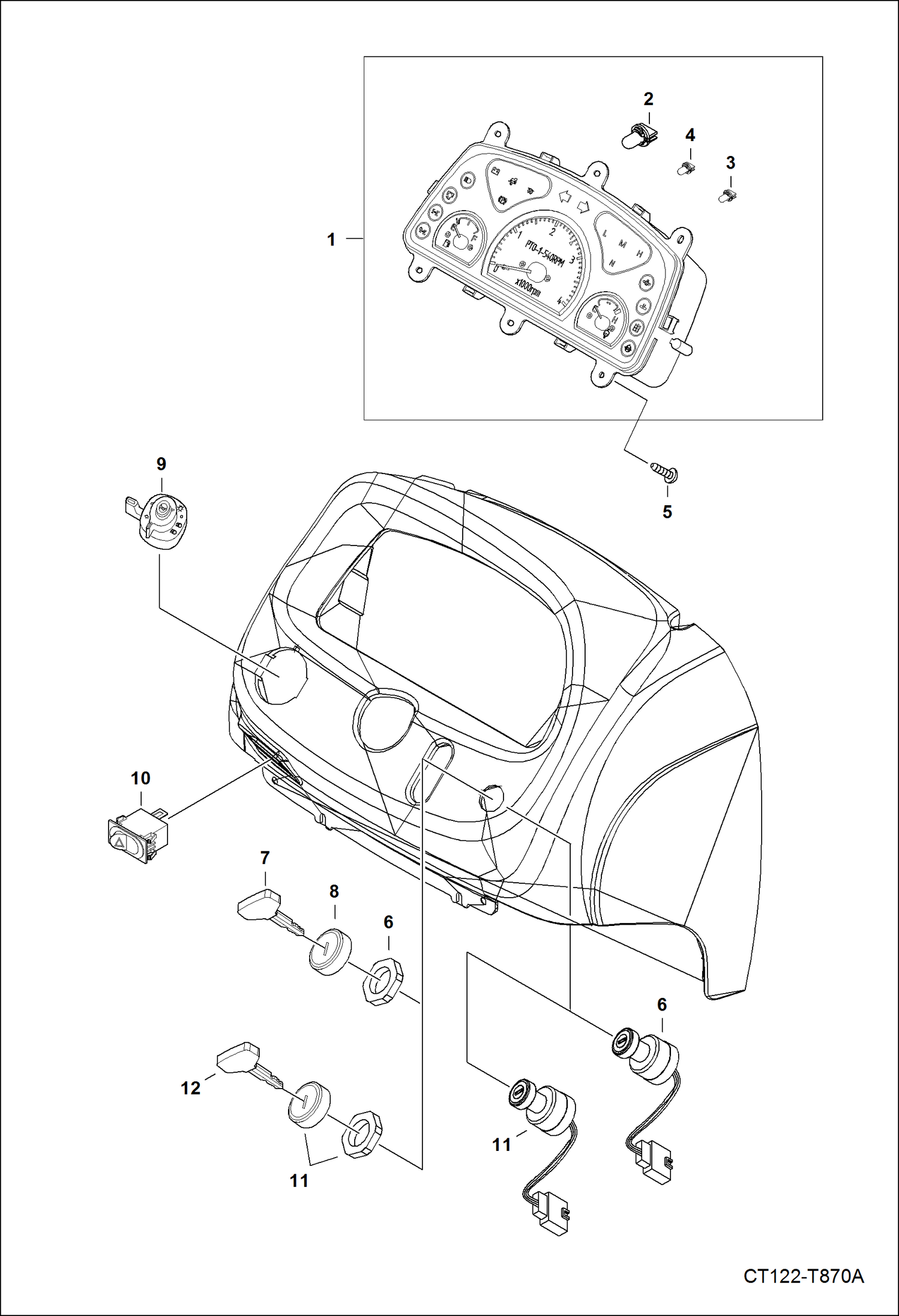

Запчасти Bobcat CT122 ELECTRICAL SYSTEM 1 GROUP ELECTRICAL SYSTEM

1

7000953

ASSY PLATE,METER

2

6697432

LIGHT, BULB 12V 34W

3

6695652

LIGHT, BULB 14V/ 14W

4

6697430

LIGHT

5

6694386

SCREW

6

6697720

SWITCH STARTER W/Ref. 7

7

6697386

2 KEYS 2 keys - W/ring - use W/Ref. 6 NLA 6697720 switch

8

7010199

COVER, SWITCH optional

9

6697713

SWITCH, COMBINATION

10

6697719

SWITCH, HAZARD

11

7025591

SWITCH, IGN W/Ref. 12

12

7025594

KEY, IGN use W/Ref. 11
