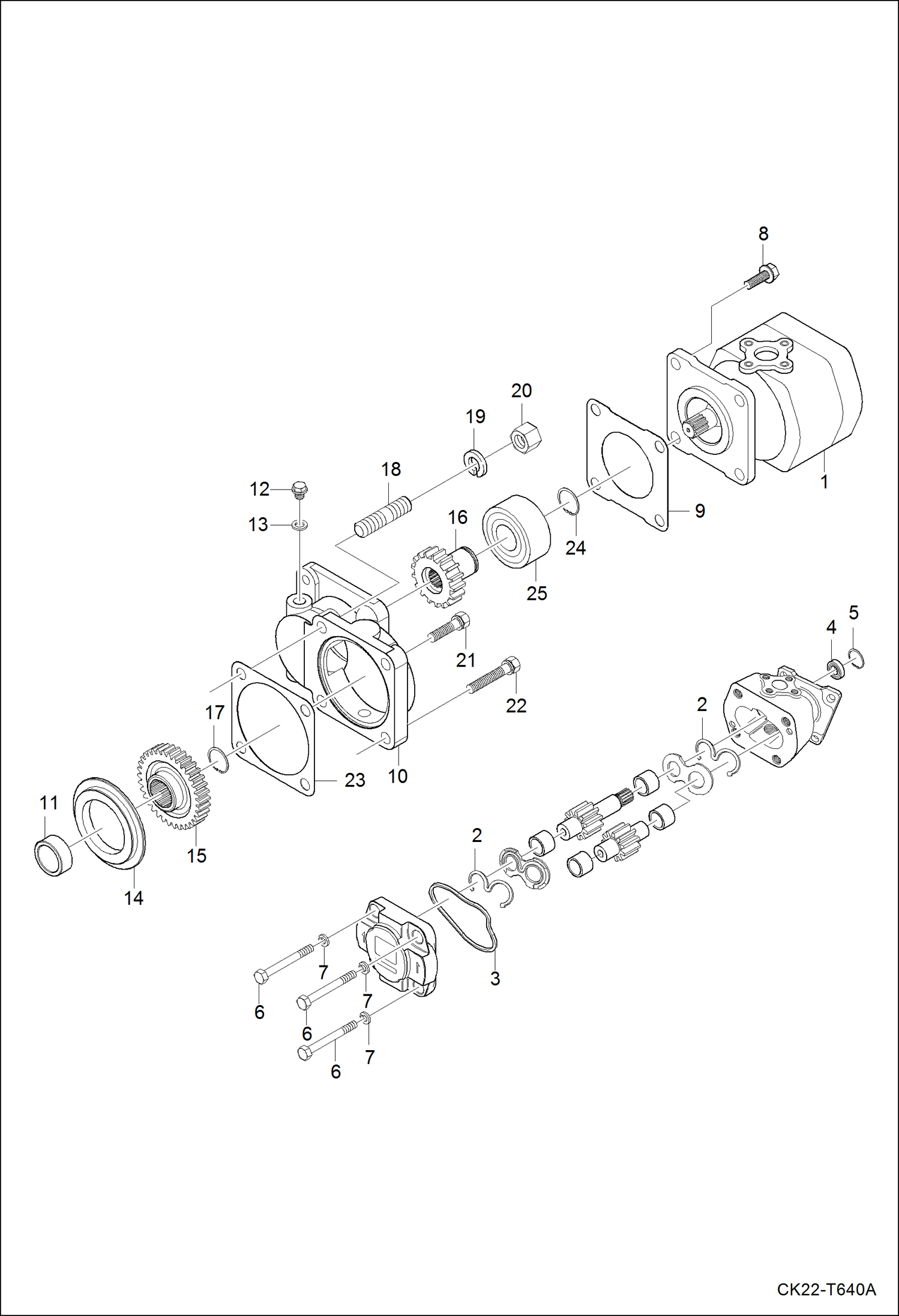

Запчасти Bobcat CT122 GEAR PUMP GROUP HYDRAULIC SYSTEM

1

6695257

PUMP, GEAR

1

7025277

PUMP, GEAR

2

6694405

SEAL CHANNER

3

6694408

SEAL, SQUARE

4

6694406

SEAL, LIP

5

6694444

RING RETAINING

6

6694440

BOLT

7

6694441

WASHER SPRING

8

6697055

BOLT

9

6697254

GASKET

10

7000939

HOLDER,HYD. PUMP

11

6695256

SPACER

12

6694222

PLUG

13

6694123

GASKET

14

6694521

BUSHING

15

6695254

GEAR 29

16

6695255

GEAR, SHAFT

17

6694108

RING SNAP

18

6694011

STUD

19

6697775

WASHER SPRING

20

6694053

NUT

21

6697055

BOLT

22

6693967

BOLT

23

7000872

FUEL CAMSHAFT COVER GASKET

24

6694109

RING SNAP

25

6694256

BEARING BALL
