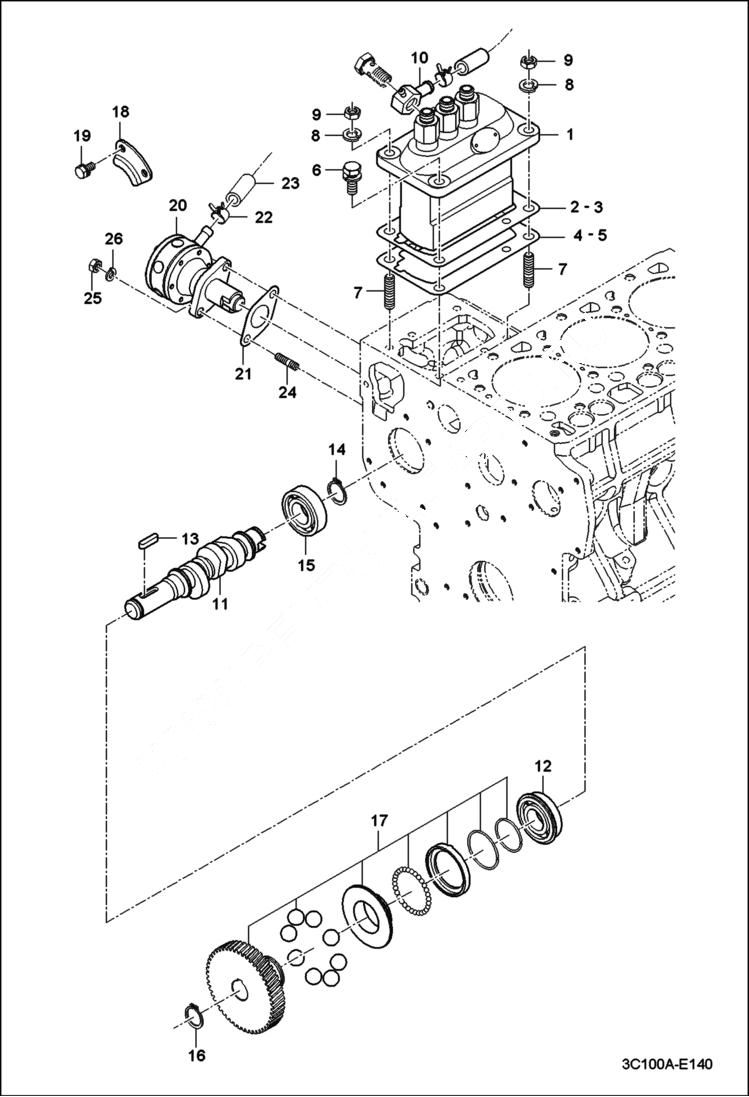

Запчасти Bobcat CT122 FUEL CAMSHAFT GROUP POWER UNIT

1

7010239

PUMP, FUEL INJ Was 7000874 - A

2

6694603

SHIM, PUMP INJ 0.15 mm thick

3

6694604

SHIM 0.30 mm thick

4

6694324

SHIM 10 INJ PUMP

5

6694753

SHIM, PUMP INJ 0.10 mm thick

6

6697055

BOLT

7

6694011

STUD

8

6697775

WASHER SPRING

9

6694053

NUT

10

6694767

JOINT, HOSE FUEL

11

7000856

SHAFT,CAM

12

6694255

BEARING BALL

13

6694219

KEY

14

6694107

RING SNAP

15

6694251

BEARING (6004C3)

16

6694108

RING SNAP

17

6694680

SLEEVE, GOVERNOR

18

6694479

PLUG, STOPPER FUEL

19

6697049

BOLT

20

6694329

PUMP, FUEL

21

6694759

GASKET, PUMP FUEL

22

6694297

CLAMP, HOSE

23

7000815

HOSE 1, FUEL

24

6694007

STUD

25

6694040

NUT

26

6694092

WASHER SPRING
