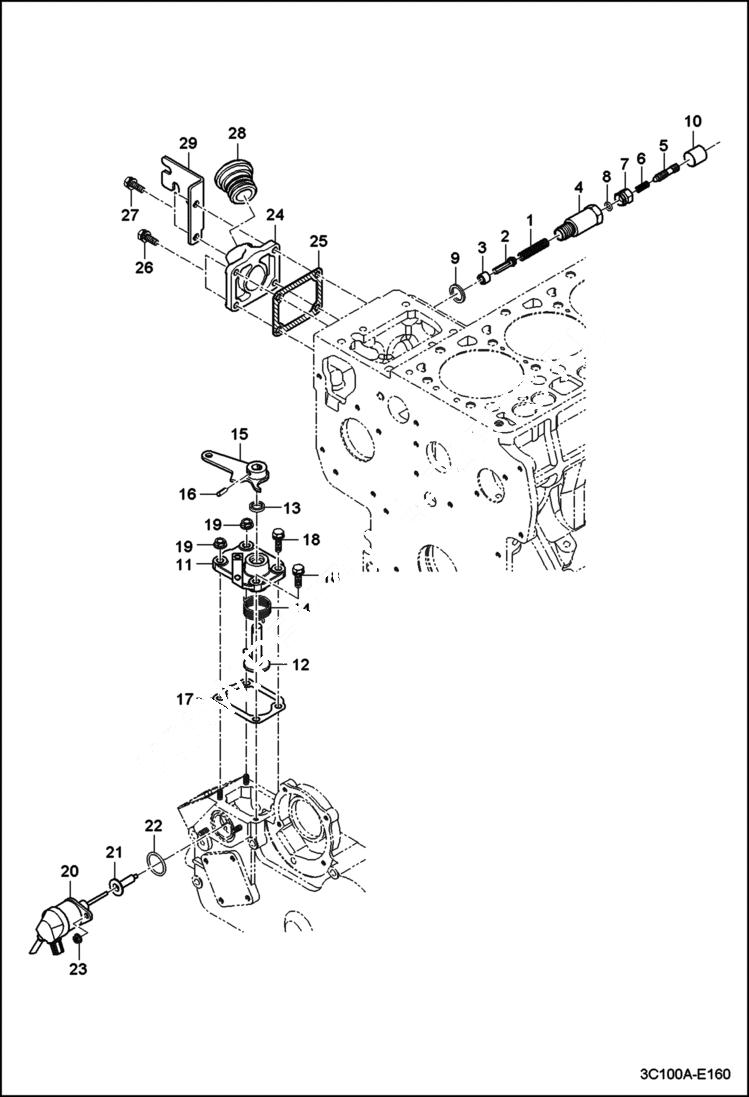

Запчасти Bobcat CT122 ENGINE STOP LEVER GROUP POWER UNIT

1

7000881

START SPRING

2

6696623

SHAFT, IDLE ADJUST

3

6697120

BUSHING

4

6697382

HOUSING, IDLE ADJUST

5

6696143

BOLT IDLE ADJUSTING

6

7000879

SPRING/IDLE

7

6696250

NUT

8

6696265

O-RING

9

6694130

SEAL, PACKING

10

6694536

CAP security

11

6696440

PLATE SPEED CONTROL

12

6697409

LEVER ENGINE STOP

13

6694333

OIL SEAL

14

6696734

SPRING

15

6696769

LEVER, STOP ENG

16

6694193

PIN SPRING

17

6697263

GASKET, SPEED CONTROL

18

6694024

BOLT FLANGE Was 6693946 - B

19

6696258

NUT FLANGE Was 6696243 - B

20

6696694

SOLENOID, SHUTOFF FUEL 2 prong connector

20

7002157

SOLENOID, ENG STOP 3 prong connector

21

7000882

ENGINE STOP SOLENOIDE GUIDE

22

6696280

O-RING

23

6696243

NUT

24

7000871

COVER,INJECTION PUMP

25

6697241

GASKET

26

6695557

BOLT, FLANGE Was 6697050 - B

27

6694024

BOLT FLANGE Was 6697051 - B

28

6696458

PLUG, OIL press in

28

6694597

PLUG, FILL threaded

29

7000884

CABLE BRACKET
