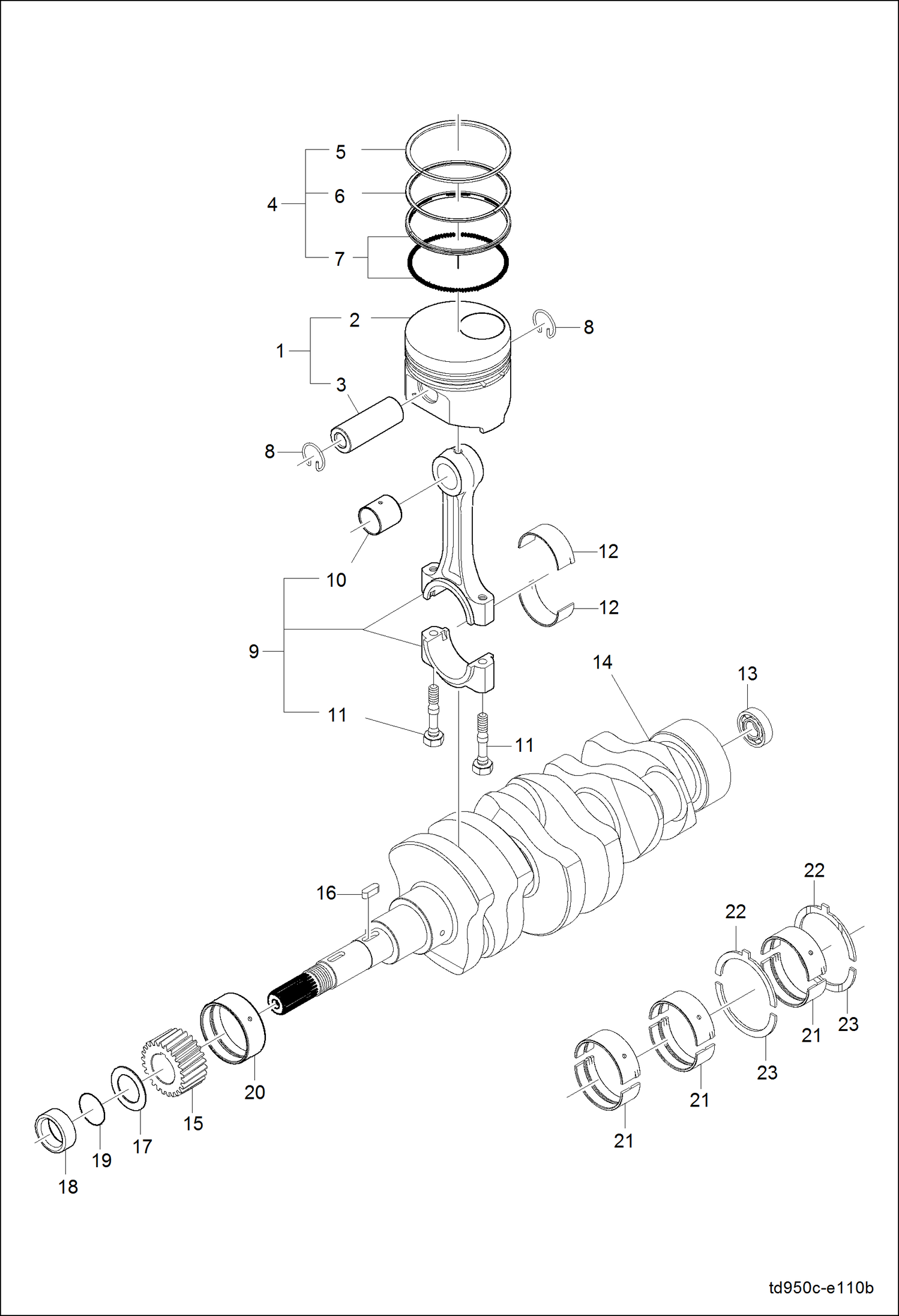

Запчасти Bobcat CT120 PISTON & CRANKSHAFT GROUP POWER UNIT

1

6694632

PISTON ASSY W PIN

2

PISTON NLA - Order Ref. 1

3

6694481

PIN PISTON

4

6694633

RING PISTON

5

6694631

RING 1 PISTON

6

6694634

RING 2 PISTON

7

6694636

RING OIL ASSY

8

6694482

CLIP CIR

9

6697574

ROD CONNECTING

10

6694483

BUSHING PISTON PIN

11

6697075

BOLT ROD

12

6694487

BEARING, METAL

13

6694253

BEARING BALL

14

6694685

CRANKSHAFT, ASSY

15

6694499

GEAR CRANK SHAFT

16

6694218

KEY

17

6694490

PUMP SLINGER OIL

18

6694640

RETAINER, CRANKSHAFT

19

6694160

SEAL O RING

20

6694493

BEARING, ENG CRANKSHAFT

21

6694494

BEARING 2 CRANK SHAFT

22

6694495

BEARING, THRUST SIDE SIDE

23

6694496

BEARING THRUST SIDE 2
