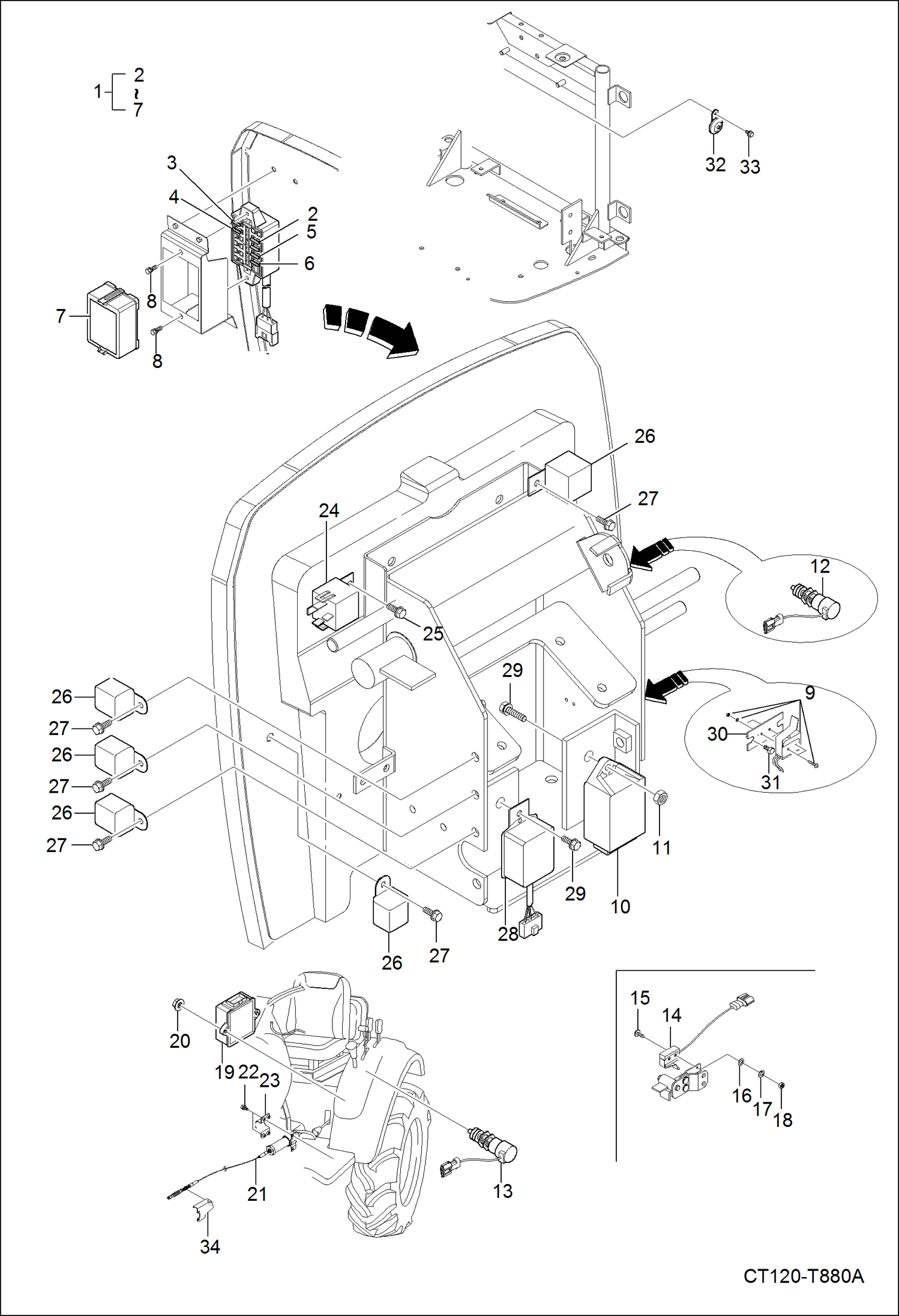

Запчасти Bobcat CT120 ELECTRICAL SYSTEM 2 GROUP ELECTRICAL SYSTEM

1

6697080

PANEL, FUSE BOX

2

6654803

FUSE 5A Was 6697237 - A

3

6625575

FUSE, 20A Was 6694380 - A

4

6654806

FUSE, 15A Was 6694371 - A

5

6654805

FUSE 10A Was 6697235 - A

6

7001051

FUSE 7.5A Was 6697234 - A

7

6694395

COVER

8

6693946

BOLT

9

SWITCH MICRO NLA - Order 7013181 switch and 7015284 plate - Was 6694391 - A

10

6697980

FLASHER

11

6696243

NUT

12

6697716

SWITCH, BRAKE SAFETY

13

6697995

SWITCH, SAFETY STARTER

14

6697715

SWITCH, MICRO

15

6694068

BOLT SCREW

16

6694075

WASHER PLAIN

17

6696922

WASHER SPRING

18

6694036

NUT

19

7000274

CONTROLLER, OPERATING UNIT Was 6697144 - A

20

6696258

NUT FLANGE

21

6698596

SOLENOID, SHUTOFF FUEL Was 6697309 - A

22

6697050

BOLT

23

6697098

BRACKET, SOLENOID

24

7013278

RELAY Was 6697556 - A

25

6694024

BOLT FLANGE

26

6697557

RELAY - A

27

6694024

BOLT FLANGE

28

6697547

CONTROLLER PREHEATER

29

6697974

BOLT

30

6695168

PLATE

31

6697049

BOLT

32

6697823

HORN

33

6697049

BOLT

34

6697090

BRACKET CABLE
