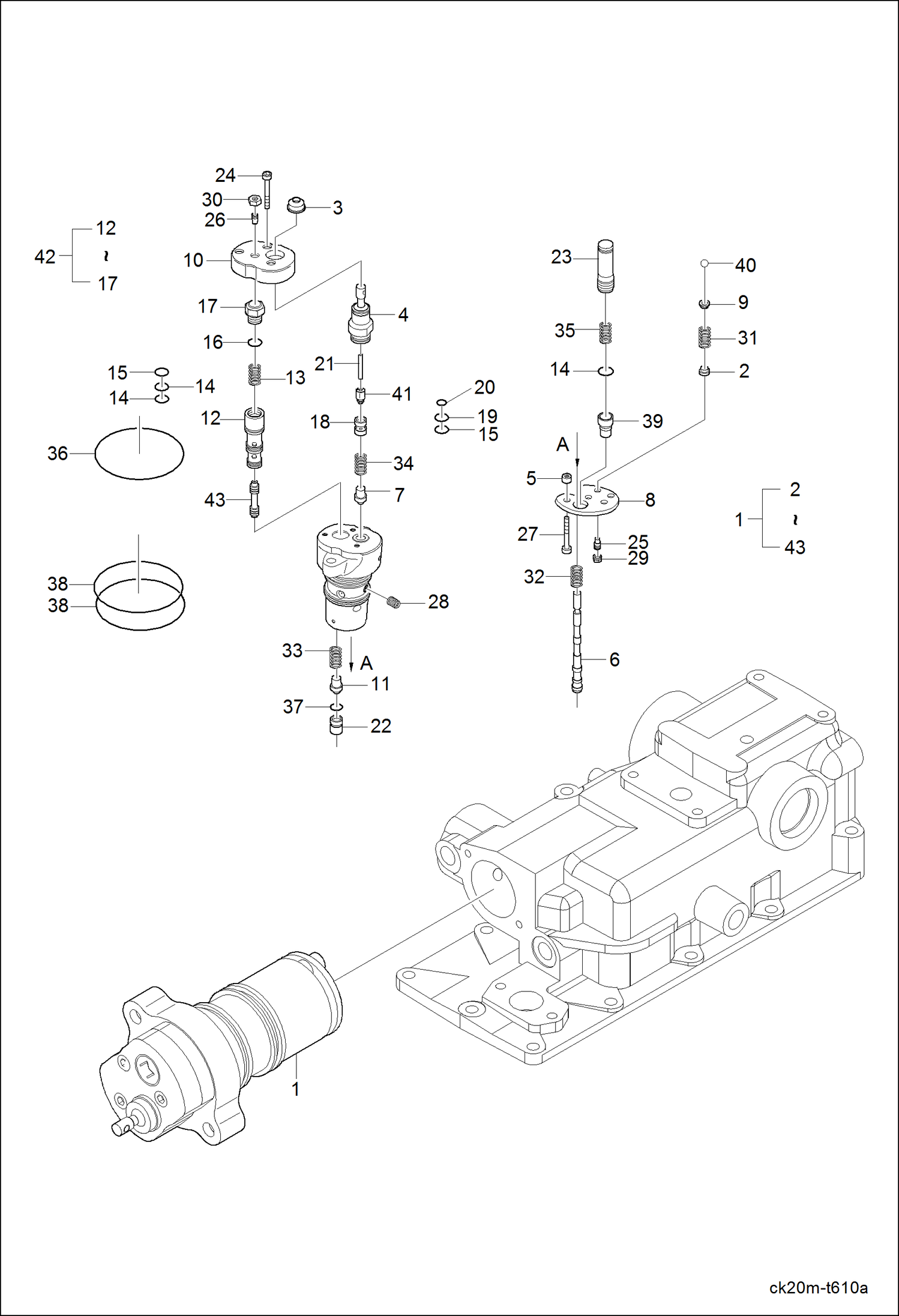

Запчасти Bobcat CT120 MAIN DISTRIBUTOR VALVE GROUP HYDRAULIC SYSTEM

1

7000808

CONTROL VALVE TYPE MLS Was 6694293 - A

2

6694281

SPACER

3

6694282

GUIDE, RUBBER

4

6697826

KIT, LEVER lever assy

5

6694283

SPACER

6

6697821

SPOOL

7

6694284

VALVE

8

6694285

PLATE

9

6694287

SPACER

10

6694288

COVER

11

6694289

VALVE

12

6694290

VALVE

13

6694367

SPRING

14

6694375

O-RING

15

6694376

O-RING

16

6694378

O-RING

17

6696442

PLUG

18

6694291

VALVE, SEAT

19

6694373

O-RING

20

6694374

O-RING

21

6694393

PIN

22

6694292

VALVE SEAT

23

6697819

SEAT

24

6694343

SCREW, ADJUSTING

25

6694344

SCREW ADJUSTING

26

6694345

SCREW

27

6694346

SCREW ADJUSTING

28

6694347

SCREW

29

6694348

NUT

30

6694349

NUT

31

6694363

SPRING

32

6694364

SPRING

33

6694365

SPRING

34

6694366

SPRING

35

6694368

SPRING

36

6694372

PIN 10X65 DIN1481

37

6694377

O-RING

38

6694379

O-RING

39

6694390

PLUG

40

6694392

BALL

41

6694286

VALVE

42

6697820

VALVE assy - Ref. 12-17

43

6697825

SPOOL
