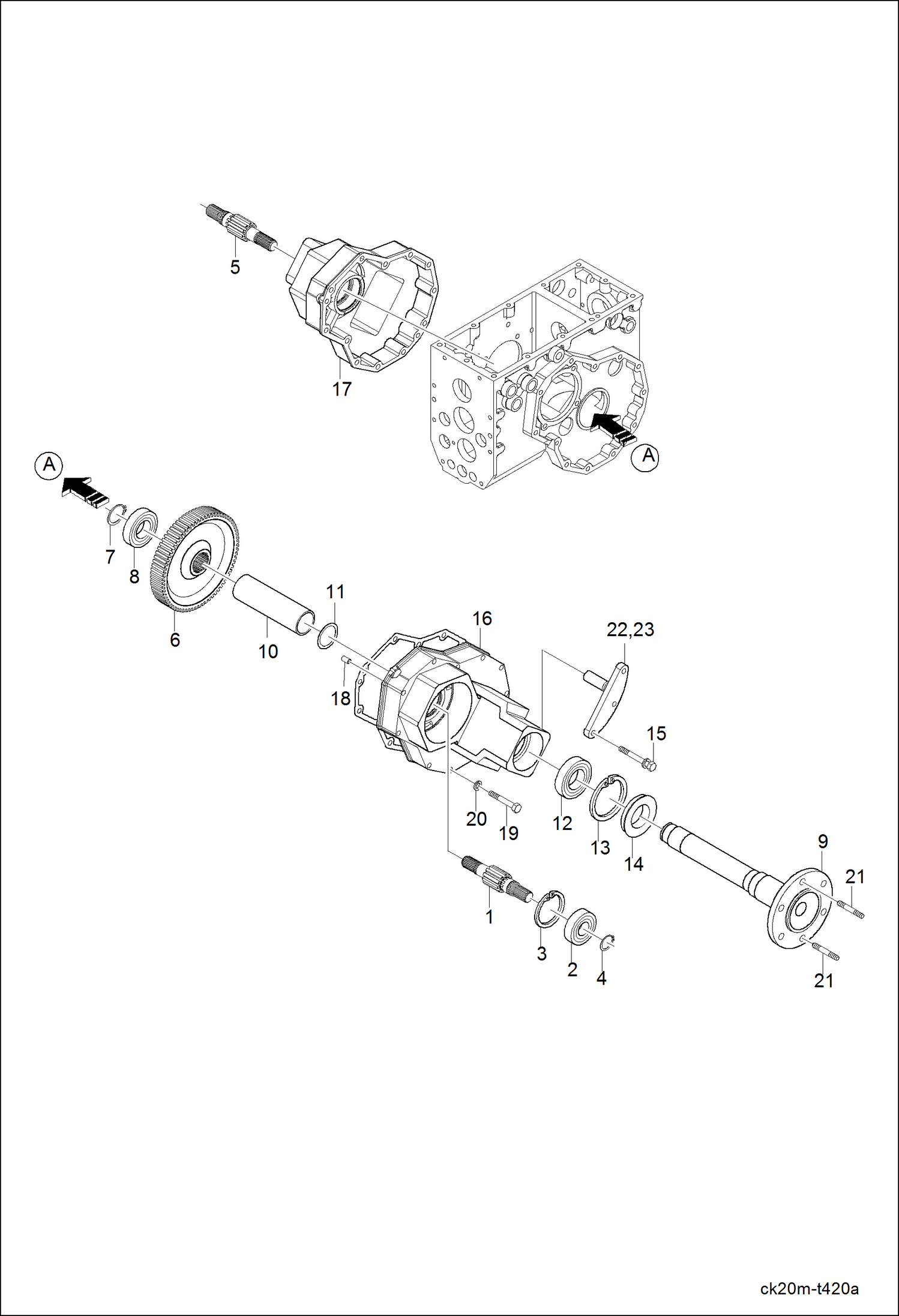

Запчасти Bobcat CT120 REAR AXLE GROUP DRIVE TRAIN

1

6694981

SHAFT LH-GEAR11

2

6694249

BEARING BALL

3

6694103

RING SNAP

4

6694112

RING SNAP

5

6694982

SHAFT GEAR11(RH)

6

6697280

GEAR 72

7

6694115

RING SNAP

8

6694244

BEARING BALL

9

6694984

SHAFT, AXLE

10

6694985

SPACER

11

6696711

SPACER

12

6694245

BEARING BALL

13

6694104

RING SNAP

14

6694863

SEAL OIL

15

6693986

BOLT

16

6697379

HOUSING, SHAFT REAR LH

17

6697371

HOUSING, AXLE REAR RH

18

6694171

PIN STRAIGHT

19

6693997

BOLT

20

6694093

WASHER SPRING

21

6697679

STUD 2.25'' (57 mm) long

22

6694874

BRACKET, HITCH LH

23

6694875

BRACKET, HITCH RH
