HOOD (Engine)

Запчасти Bobcat CT120 HOOD (Engine) MAIN FRAME

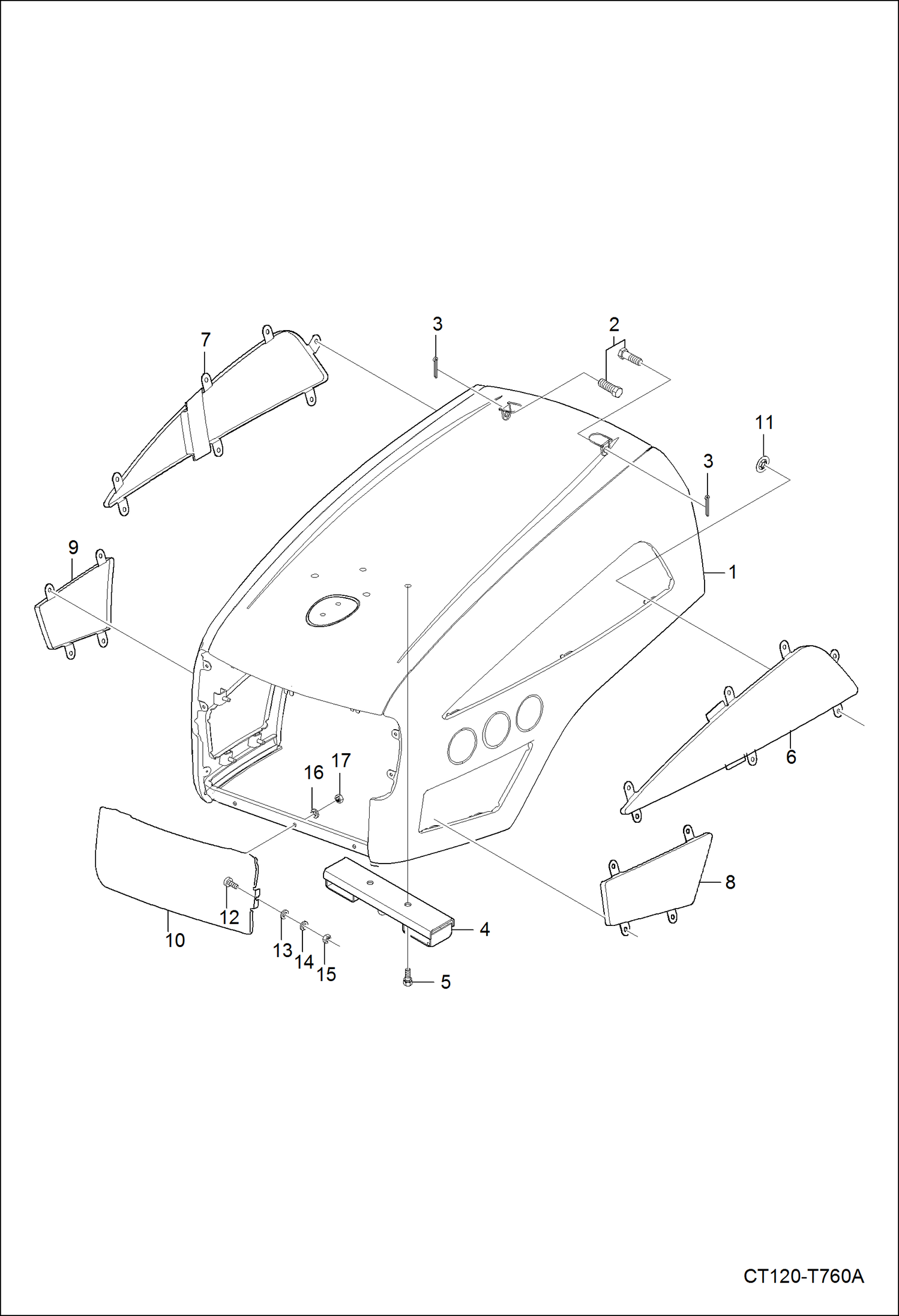

Схема запчастей Bobcat CT120 - HOOD (Engine) MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7010610

COVER, HOOD Was 6697349 - A

2

6695131

BOLT HOOD

3

6694208

PIN SPLIT

4

6695129

HOLDER, HOOD

5

6697057

BOLT

6

6697604

SCREEN LH

7

6697596

SCREEN RH

8

6697594

SCREEN

9

6697597

SCREEN RH

10

6697595

SCREEN

11

6696775

STOP

12

6694069

BOLT SCREW

13

6694080

WASHER PLAIN

14

6694091

WASHER SPRING

15

6696237

NUT Was 6694046 - A

16

6694092

WASHER SPRING

17

6696237

NUT Was 6694047 - B
