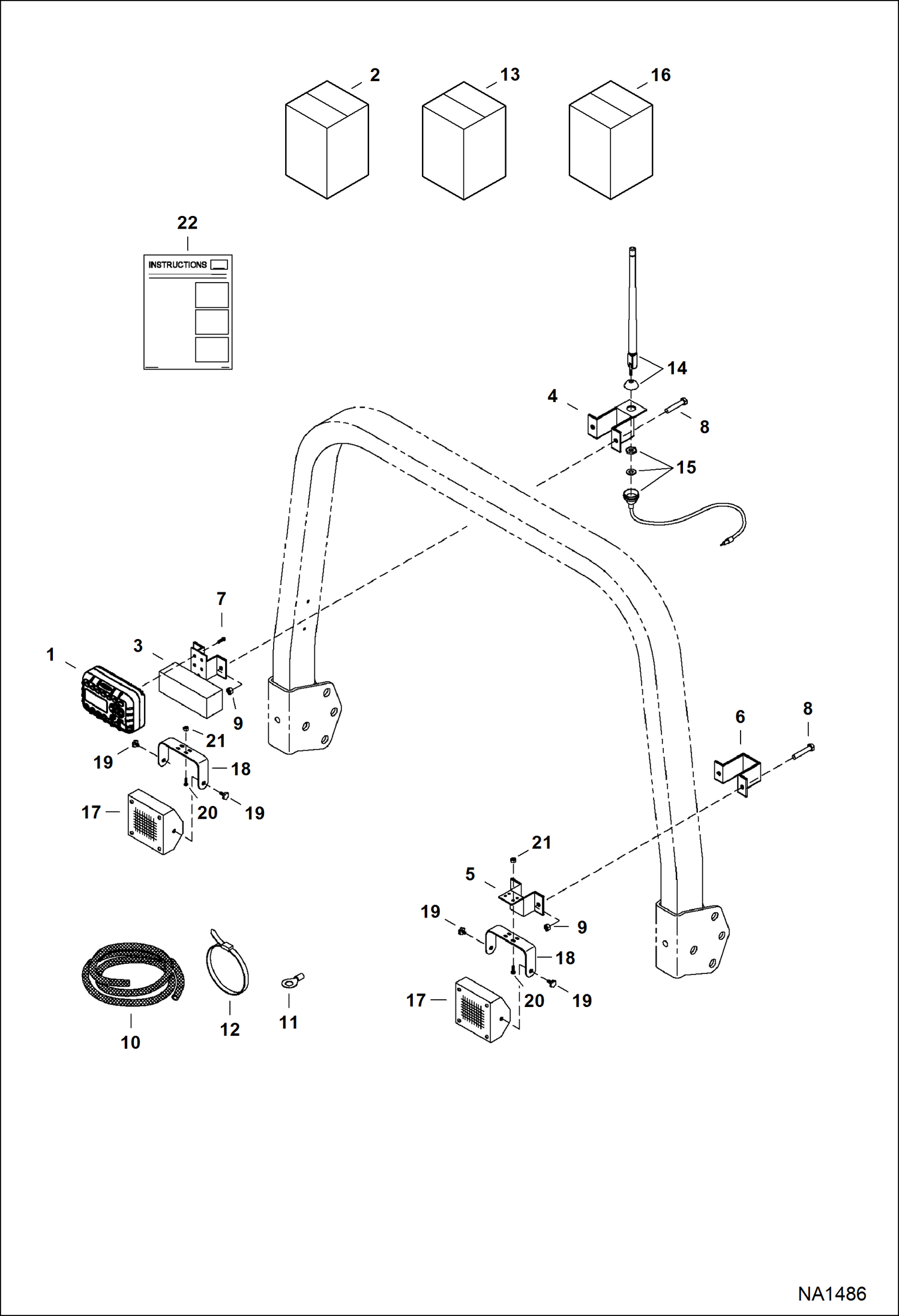

Запчасти Bobcat CT120 RADIO (For ROPS) ACCESSORIES & OPTIONS

1

6983067

RADIO, MINI WEATHERPROOF

2

6988065

KIT, INSTALL FOR 6983067 IN ROPS EQUIP Ref. 3-11

3

BRACKET NSS - radio mounting - Order Ref. 2

4

BRACKET NSS - antenna mounting - Order Ref. 2

5

BRACKET NSS - speaker mounting - Order Ref. 2

6

BRACKET NSS - speaker mounting - Order Ref. 2

7

SCREW NSS - Order Ref. 2

8

BOLT NSS - #10 x 2-1/2'' - Order Ref. 2

9

LOCKNUT NSS - Order Ref. 2

10

HARNESS NSS - Order Ref. 2

11

EYELET NSS - Order Ref. 2

12

TIE STRAP

13

6676114

ANTENNA, RADIO kit - Ref. 14 & 15

14

ANTENNA NSS - Order Ref. 13

15

CABLE, ANTENNA NSS - Order Ref. 13

16

6988063

SPEAKERS, WEDGE3-1/3'' COAXIAL Ref. 17-21

17

SPEAKER NSS - Order Ref. 16

18

BRACKET NSS - speaker mounting - Order Ref. 16

19

SCREW, THUMB NSS - Order Ref. 16

20

BOLT NSS - #10 x 1/2'' - Order Ref. 16

21

LOCKNUT NSS - Order Ref. 16

22

6987413

INSTRUCTIONS
