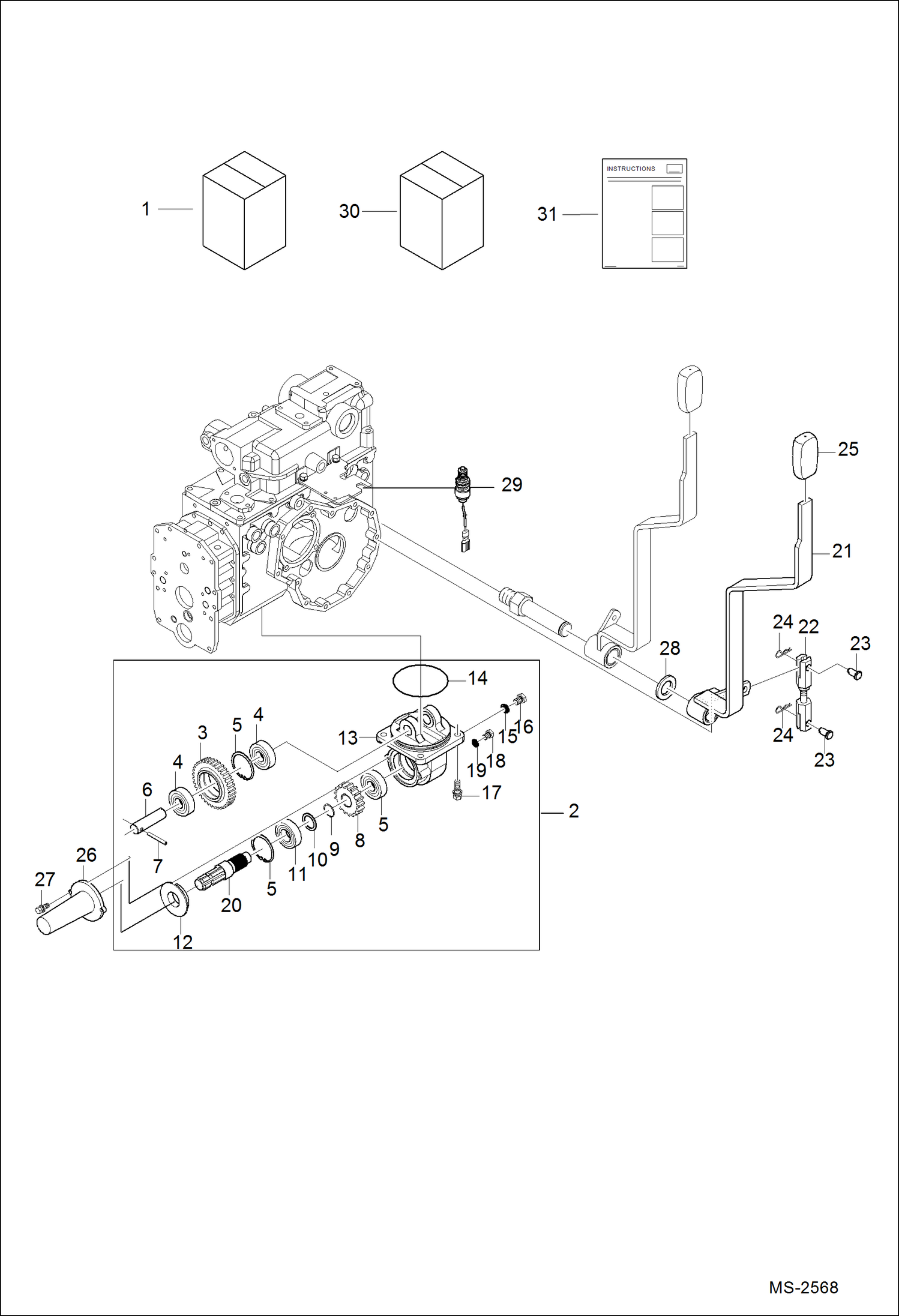

Запчасти Bobcat CT120 MID PTO KIT ACCESSORIES & OPTIONS

1

7150476

KIT, PTO MID Ref. 2-29 & 32

2

6697019

PTO, MID Ref. 3-20

3

6694930

GEAR 37

4

6694247

BEARING BALL

5

6694100

RING SNAP

6

6694929

SHAFT, COUNTER MID PTO

7

6694201

PIN SPRING

8

6694931

GEAR 23

9

6694110

RING SNAP

10

6694802

SPACER

11

6694241

BEARING BALL

12

6694806

SEAL OIL

13

6694926

HOUSING, MID PTO

14

6694164

SEAL O RING

15

6694126

WASHER SEAL

16

6694223

PLUG

17

6693982

BOLT

18

6694222

PLUG

19

6694125

WASHER, SEALING

20

6697635

SHAFT MID PTO

21

6697396

LEVER

22

6694936

BAR

23

6697774

WASHER

24

6697496

PIN SNAP

25

6694967

HANDLE, GRIP

26

6694932

COVER MID PTO

27

6697053

BOLT

28

6697778

WASHER

29

6697717

SWITCH, STARTER SAFETY

30

6694935

ROD CONNECTING not in kit

31

6697492

PIN JOINT not in kit

32

6986751

INSTRUCTIONS
