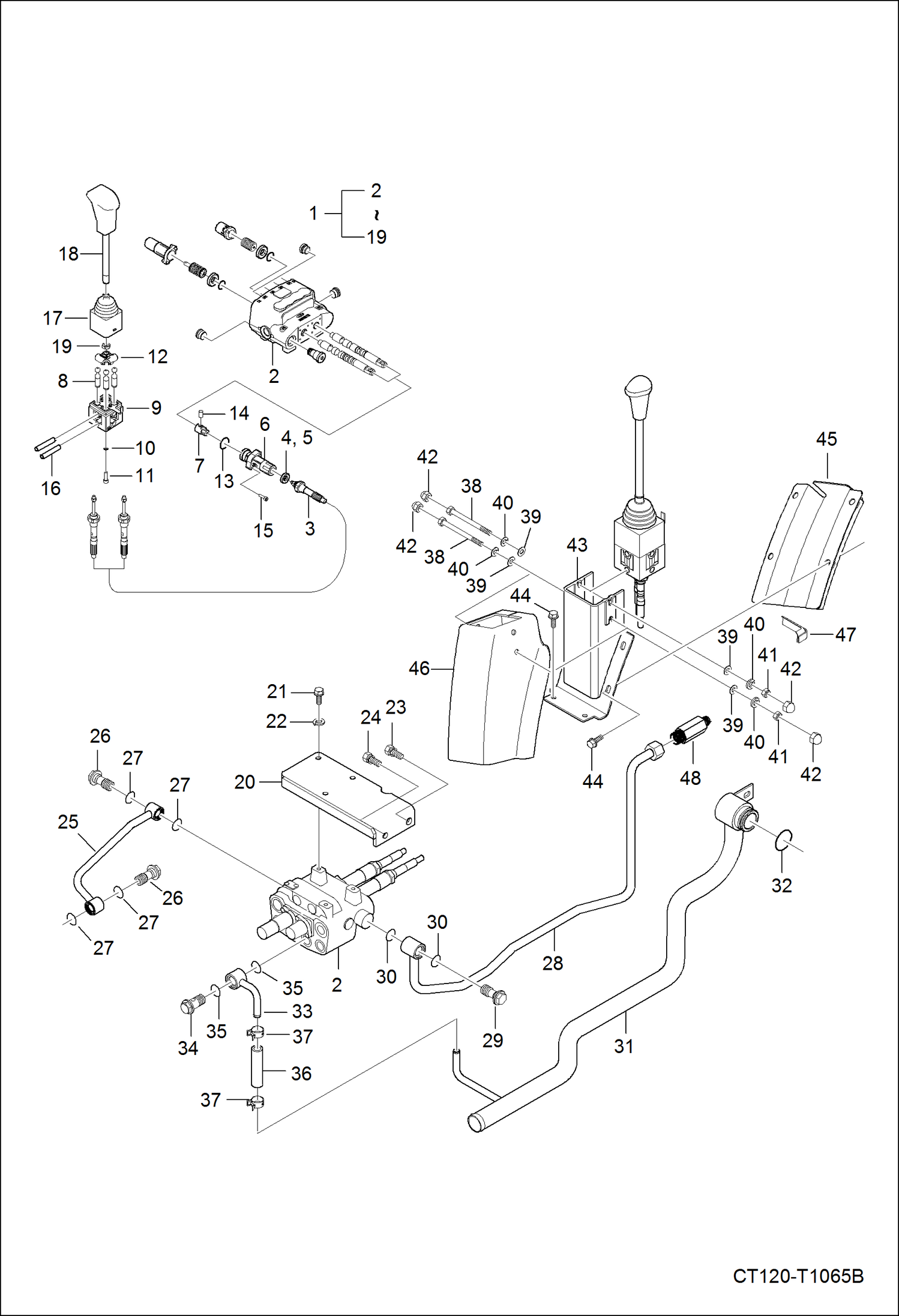

Запчасти Bobcat CT120 JOYSTICK VALVE GROUP (Hydrotech Valve) ACCESSORIES & OPTIONS

1

VALVE, JOYSTICK ASSY NLA - Order individual components Ref. 2-19 - Was 6697769 - A

2

7023163

VALVE, JOYSTICK Was 7015526 - B,D

3

7000829

CABLE, PUSH-PULL

4

7000813

WASHER, SEAL

5

7000824

FLANGE, MOUNTING

6

7000823

ENDCAP

7

7000826

CONNECTOR

8

7000827

PISTON, VALVE JOYSTICK

9

7000817

HOUSING, JOYSTICK Was 6697041 - A

10

7000822

WASHER, SPRING Was 6697773 - A

11

7000821

BOLT Was 6697067 - A

12

7000825

SELECTOR

13

7000818

O RING

14

6696332

PIN

15

7000820

BOLT

16

7000819

RING Was 6697559 - A

17

7000828

BOOT, RUBBER

18

7000816

ASSY HANDLE Was 6697399 - A

19

7008988

NUT Was 6697462 - A

20

6697108

BRACKET, VALVE

21

6695575

BOLT

22

6697775

WASHER SPRING

23

6693980

BOLT

24

6697061

BOLT

25

6697755

TUBE P1 HYDRAULIC

26

6696165

BOLT JOINT

27

6694137

O-RING

28

6697745

TUBE HYD

29

6697074

BOLT JOINT

30

6694137

O-RING

31

6697759

TUBELINE, SUCTION

32

6697463

SEAL O-RING

33

6697756

TUBE RETURN

34

6695562

BOLT JOINT

35

6694137

O-RING

36

7000917

HOSE, RETURN

37

7000814

CLAMP, HOSE Was 6694674 - A

38

6695520

BOLT

39

6694088

WASHER PLAIN

40

6697775

WASHER SPRING

41

6694053

NUT

42

6695694

CAP, NUT

43

6697230

FRAME, JOYSTICK

44

6697058

BOLT

45

6697162

COVER, HOSE

46

6697192

COVER JOYSTICK

47

6697590

SUPPORT RUBBER

48

CONNECTOR, FILTER
