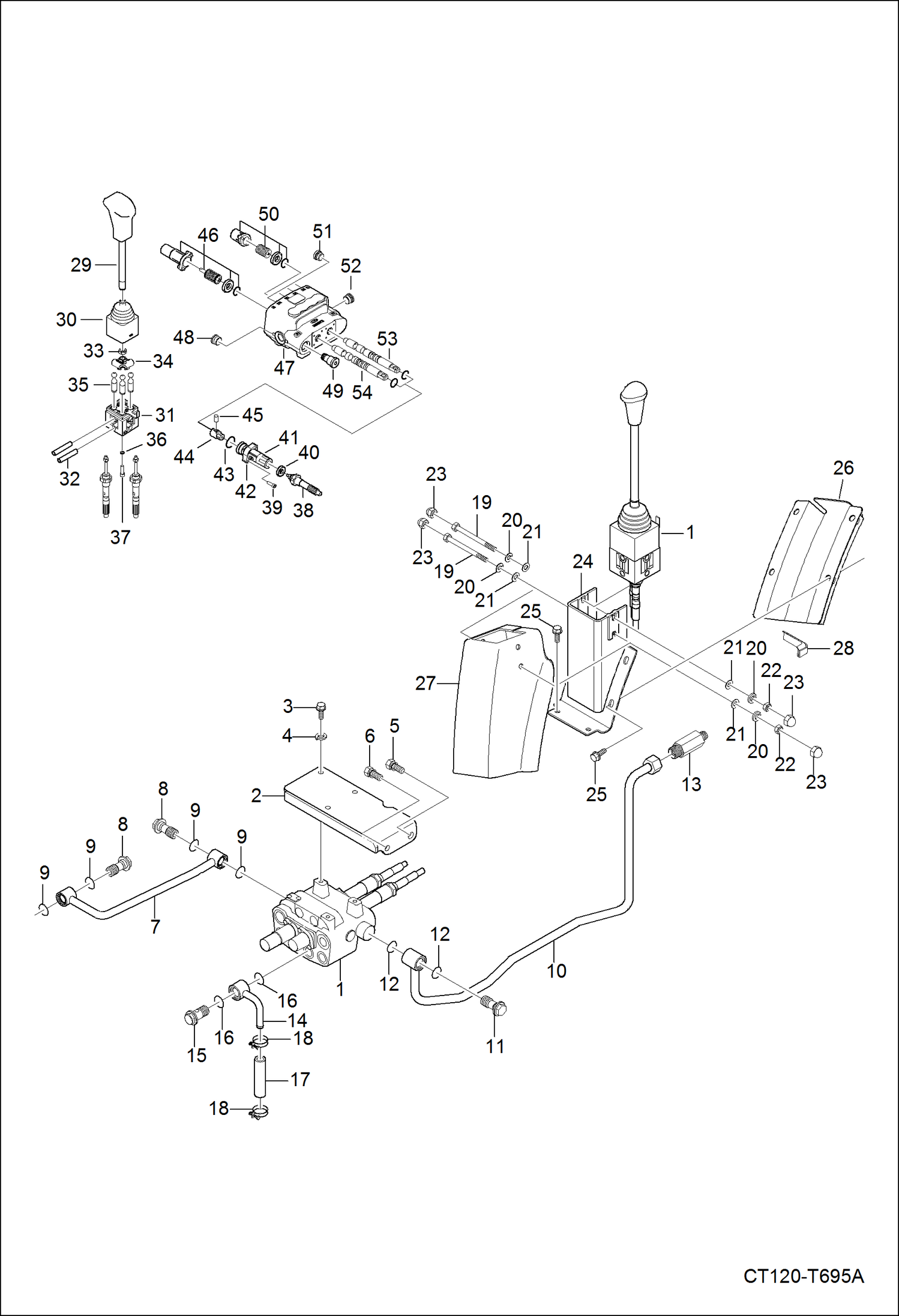

Запчасти Bobcat CT120 JOYSTICK VALVE GROUP (Walvoil Valve) ACCESSORIES & OPTIONS

1

VALVE, JOYSTICK ASSY NLA - Order individual components - Ref. 29-47 - Was 6697769 - A

2

6697108

BRACKET, VALVE

3

6695575

BOLT

4

6697775

WASHER SPRING

5

6693980

BOLT

6

6697061

BOLT

7

6697755

TUBE P1 HYDRAULIC

8

6696165

BOLT JOINT

9

6694137

O-RING

10

6697745

TUBE HYD

11

6697074

BOLT JOINT

12

6694137

O-RING

13

6695007

CONNECTOR, FILTER

14

6697756

TUBE RETURN

15

6695562

BOLT JOINT

16

6694137

O-RING

17

6697359

HOSE RETURN

18

7000814

CLAMP, HOSE Was 6694674 - A

19

6695520

BOLT

20

6694088

WASHER PLAIN

21

6697775

WASHER SPRING

22

6696241

NUT

23

6695694

CAP, NUT

24

6697230

FRAME, JOYSTICK

25

6697058

BOLT

26

6697162

COVER, HOSE

27

6697192

COVER JOYSTICK

28

6697590

SUPPORT RUBBER

29

7000816

ASSY HANDLE Was 6697399 - A

30

6697079

BOOT

31

7000817

HOUSING, JOYSTICK Was 6697041 - A

32

7000819

RING Was 6697559 - A

33

7008988

NUT Was 6697462 - A

34

7000825

SELECTOR Was 6697387 - A

35

7000827

PISTON, VALVE JOYSTICK

36

7000822

WASHER, SPRING Was 6697773 - A

37

7000821

BOLT Was 6697067 - A

38

6697121

CABLE

39

6697066

BOLT

40

7000813

WASHER, SEAL

40

6697772

WASHER

41

6696835

KIT, ADAPTER

41

7000823

ENDCAP

42

7000824

FLANGE, MOUNTING

43

7000818

O RING

44

7000826

CONNECTOR

45

6696332

PIN

46

6696727

CAP, END ASSY

47

VALVE, CONTROL NLA - Ref. 47-54 - Order 7023163 - Was 7015526 - B

47

6695483

HOUSING, ASSY

48

6696449

PLUG

49

6697539

PLUG

50

6697391

KIT SPOOL CONTROL does not inlcude cap

51

6696448

PLUG

52

6696449

PLUG

53

6697661

SPOOL

54

6696725

SPOOL
