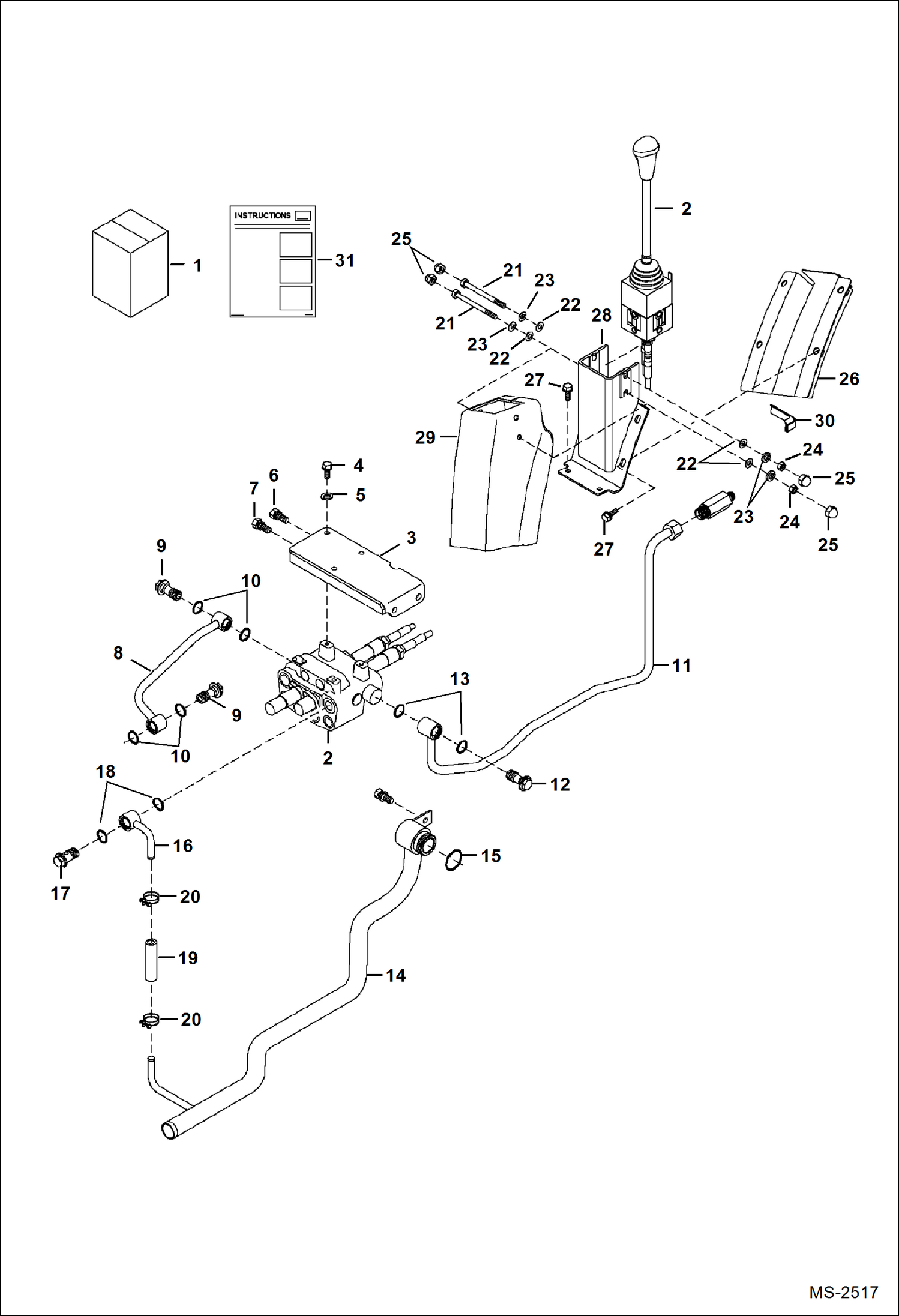

Запчасти Bobcat CT120 JOYSTICK VALVE GROUP ACCESSORIES & OPTIONS

1

KIT, JOYSTICK VALVE NLA - W/Walvoil valve - Ref. 2-31 - Order 7199759 - Was 7150477

1

7199759

KIT, JOYSTICK VALVE W/Hydrotech valve - Ref. 2-31

2

VALVE, JOYSTICK See Illustration JOYSTICK VALVE GROUP/ CT120-T695A - NLA - W/Walvoil valve - Order individual components - Was 6697766

2

VALVE, JOYSTICK See Illustration JOYSTICK VALVE GROUP/ CT120-T1065B - NLA - W/Hydrotech valve - Order individual components

3

6697108

BRACKET, VALVE

4

6695575

BOLT

5

6697775

WASHER SPRING

6

6693980

BOLT

7

6697061

BOLT

8

6697755

TUBE P1 HYDRAULIC

9

6696165

BOLT JOINT

10

6694137

O-RING

11

6697745

TUBE HYD

12

6697074

BOLT JOINT

13

6694137

O-RING

14

6697759

TUBELINE, SUCTION

15

6697463

SEAL O-RING

16

6697756

TUBE RETURN

17

6695562

BOLT JOINT

18

6694137

O-RING

19

6697359

HOSE RETURN

20

7000814

CLAMP, HOSE Was 6694674 - A

21

6695520

BOLT

22

6694088

WASHER PLAIN

23

6697775

WASHER SPRING

24

6696241

NUT

25

6695694

CAP, NUT

26

6697230

FRAME, JOYSTICK

27

6697058

BOLT

28

6697162

COVER, HOSE

29

6697192

COVER JOYSTICK

30

6697590

SUPPORT RUBBER

31

6986752

INSTRUCTIONS
