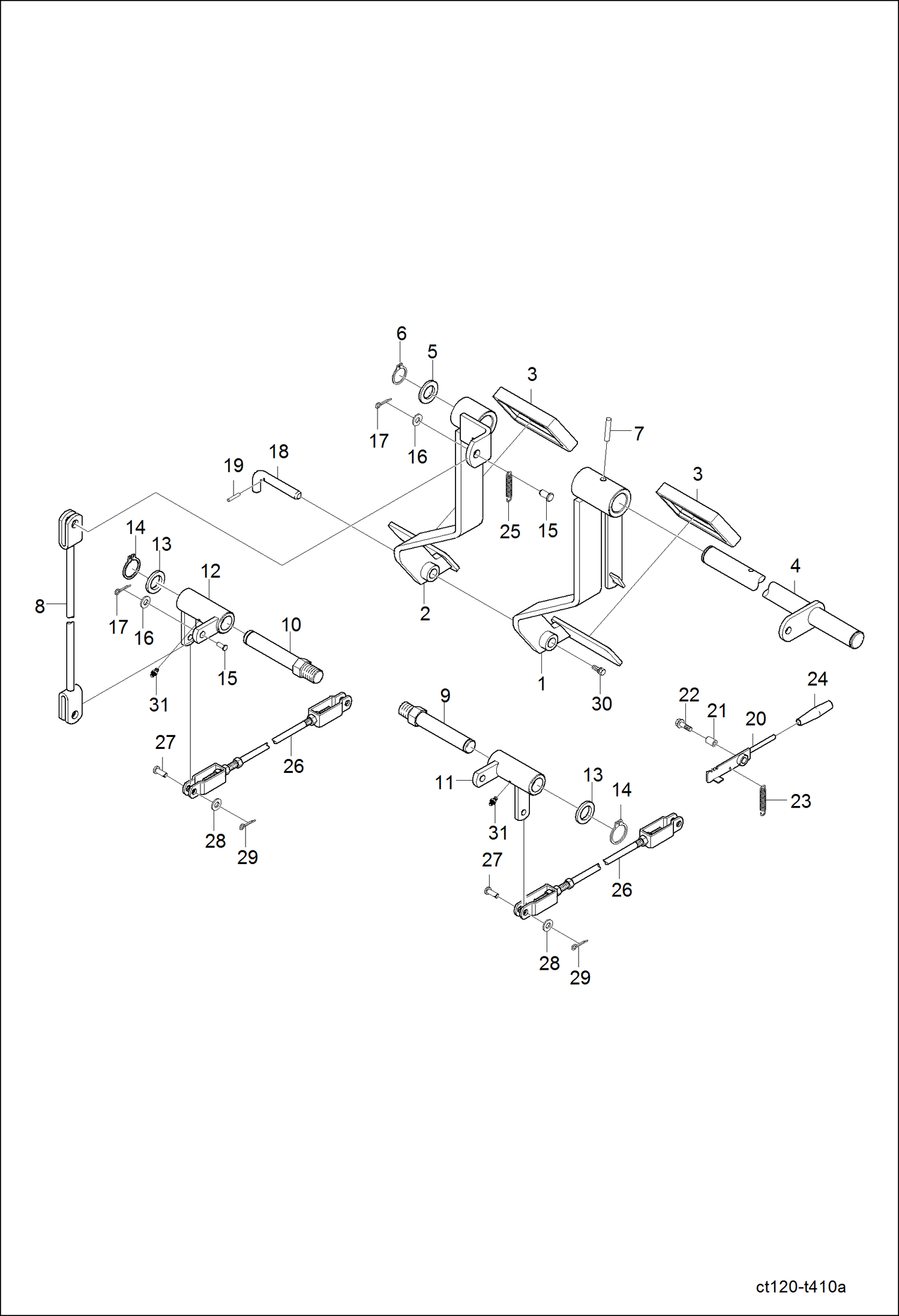

Запчасти Bobcat CT120 BRAKE PEDAL GROUP MAIN FRAME

1

6697475

PEDAL BRAKE

2

6697476

PEDAL BRAKE RH

3

6695842

COVER, PEDAL RUBBER

4

6695180

SHAFT, PEDAL

5

6694432

SPACER

6

6694110

RING SNAP

7

6694203

PIN SPRING

8

6695181

ROD BRAKE

9

6695185

SHAFT BRAKE(LH)

10

6695186

SHAFT BRAKE(RH)

11

7000934

LEVER, BRAKE LH Was 6697417 - A

12

7000935

LEVER, BRAKE RH Was 6697402 - A

13

6694084

WASHER PLAIN

14

6694109

RING SNAP

15

6694186

PIN JOINT Was 6694187 - B

16

6697780

WASHER

17

6696379

PIN SPLIT Was 6694206 - B

18

6695192

PIN, BRAKE PEDAL

19

6694192

PIN SPRING

20

7000936

LEVER,SET Was 6697428 - A

21

6695193

SPACER

22

6693976

BOLT

23

6694401

SPRING, RETURN

24

6695191

HANDLE GRIP

25

6695194

SPRING, PEDAL CLUTCH

26

6695187

ROD BRAKE

27

6697492

PIN JOINT Was 6694186 - B,D

28

6697774

WASHER Was 6697780 - B,D

29

6697497

PIN SPLIT Was 6694206 - B,D

30

6693958

BOLT

31

6694226

FITTING, GREASE
