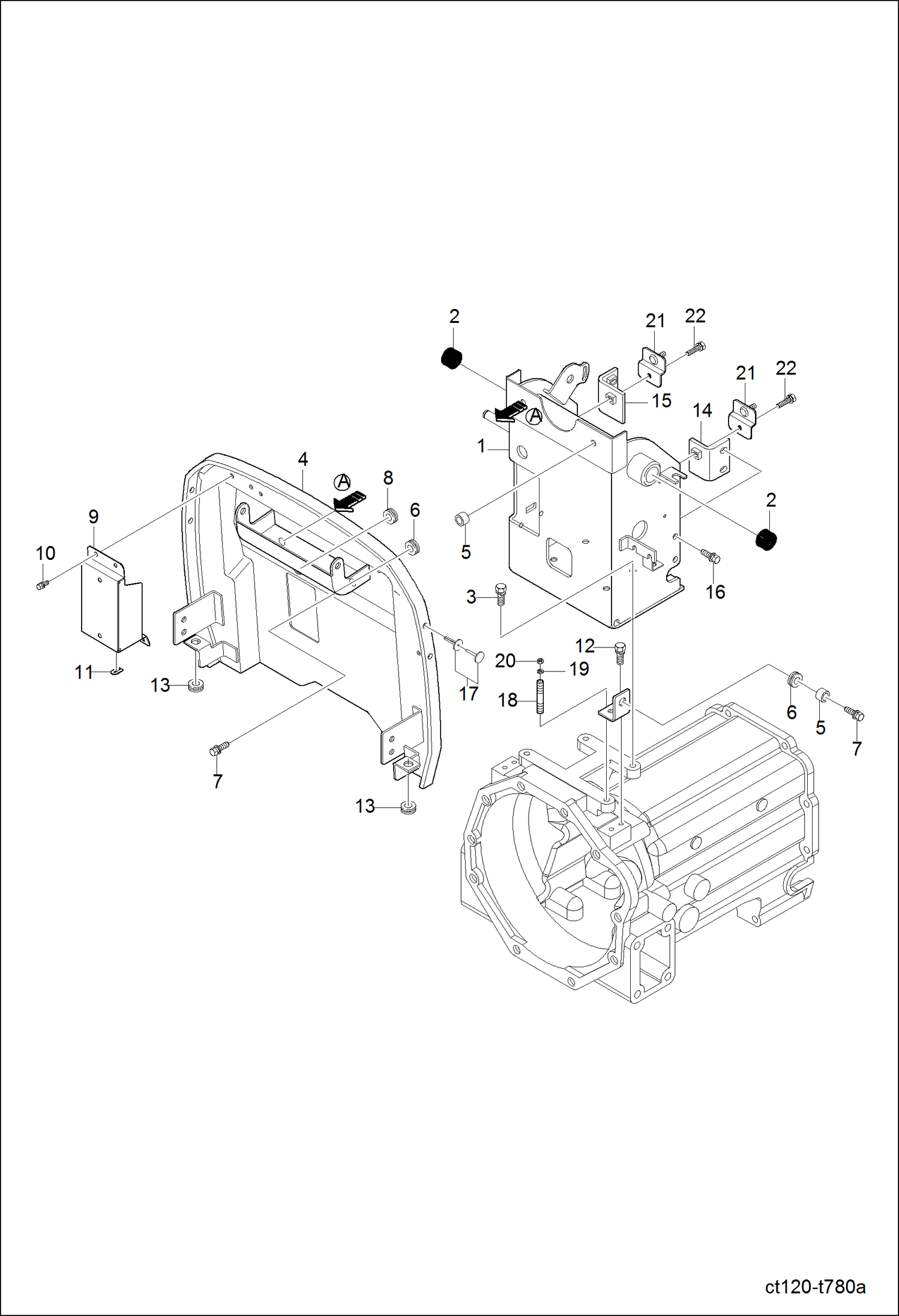

Запчасти Bobcat CT120 FRAME GROUP MAIN FRAME

1

6697229

FRAME

2

6694272

BEARING NEEDLE

3

6693980

BOLT

4

7000924

PLATE,CUT-OFF Was 6697525 - A

5

6695127

SPACER

6

6695128

GROMMET

7

6693977

BOLT

8

6694353

GROMMET

9

6697191

COVER FUSE BOX

10

6697049

BOLT

11

6695167

SPACER RUBBER U

12

6693979

BOLT

13

6696060

GROMMET

14

6697335

HOLDER, LH

15

6697336

HOLDER, RH

16

6697051

BOLT

17

6697530

PLUG

18

6694013

STUD

19

6694093

WASHER SPRING

20

6694059

NUT Was 6694048 - B

21

6697008

ARM FEEDBACK

22

6697049

BOLT
