HYDRAULIC FILTER & VALVES

Запчасти Bobcat BCA24 HYDRAULIC FILTER & VALVES HYDRAULIC SYSTEM

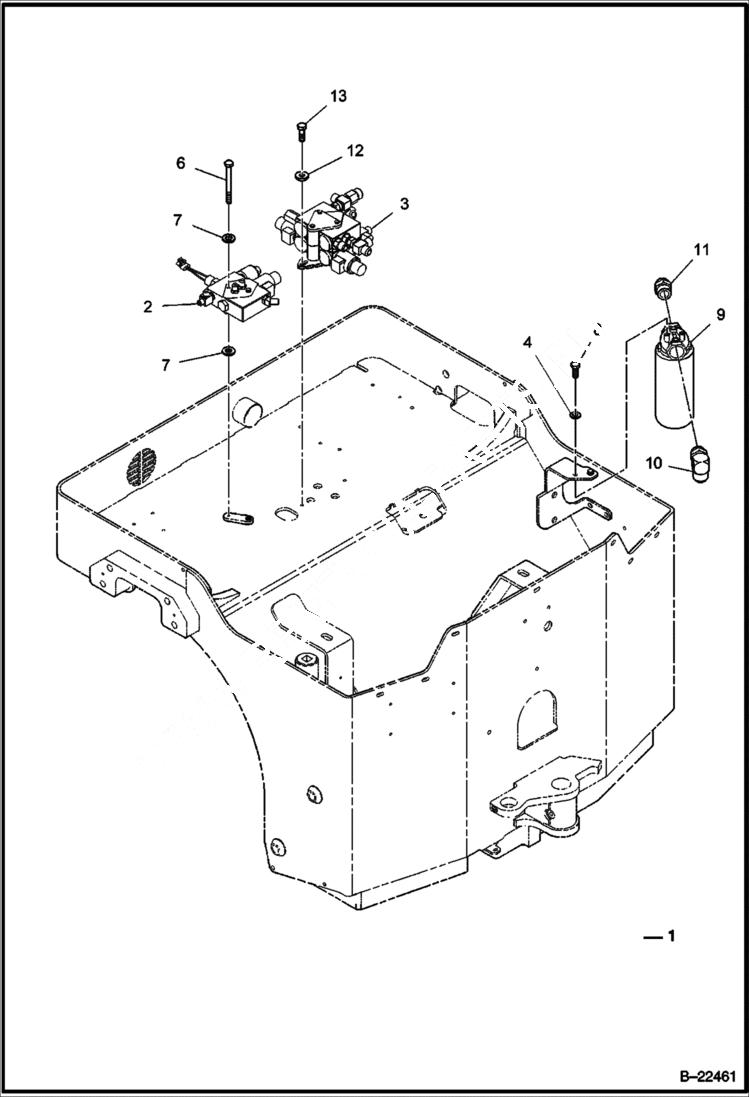

Схема запчастей Bobcat BCA24 - HYDRAULIC FILTER & VALVES HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

BRAKE VALVE See Illustration BRAKE VALVE ASSEMBLY/ B22462

3

VIBRATION VALVE See Illustration VIBRATION VALVE ASSEMBLY/ B22463

4

IR96712898

WASHER Was IR96741038 - A

6

IR96706817

BOLT

7

IR96741053

WASHER

8

IR96702824

BOLT

9

IR59259051

FILTER ASSY

9

IR59764498

Element

9

IR59213033

Filter Head suction

10

IR95280194

ADAPTER

11

IR95329983

ADAPTER

12

IR96712674

Washer

13

IR96702659

BOLT
