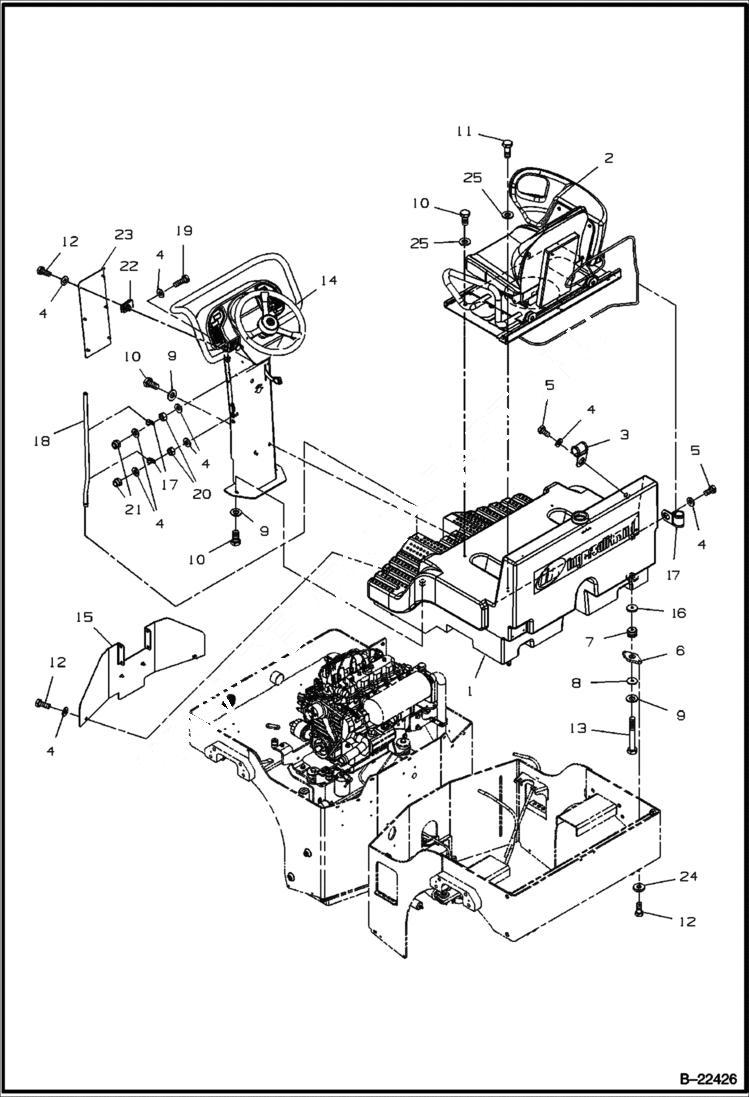

Запчасти Bobcat BCA24 OPERATORS PLATFORM CONSOLE

1

IR13227111

WATER TANK operator platform

1

IR54489000

WATER TANK CAP Was IR13264247 - A

1

IR13264254

DRAIN PLUG

1

IR59277210

Water Strainer Optional

2

Seat Assy See Illustration SEAT ASSEMBLY/ B22427

3

IR59117317

CLAMP

4

IR96712898

WASHER Was IR96741038 - A

5

IR96702816

BOLT

6

IR59184077

ISOLATOR MOUNT

7

IR59653543

SHOCK MOUNT

8

IR59302919

WASHER

9

IR96714308

WASHER Was IR96741046 - A

10

IR96702279

BOLT

13

IR96704713

BOLT

14

PEDESTAL ASSY See Illustration PEDESTAL ASSEMBLY/ B22428

15

IR59226530

FRONT PLATE

16

IR13163779

PLATFORM spacer

17

IR59121855

CLAMP

18

IR59227181

SIGHT TUBE ASSY

18

IR59656678

Adapter male

18

IR59226654

BALL FLOAT

18

IR59227181

SIGHT TUBE ASSY Was IR59226647 - A

18

IR59093351

FILTER breather

19

IR96702659

BOLT

20

IR96701370

Nut

21

IR96728431

LOCKNUT

22

IR59214650

U-nut

23

IR59259200

PEDESTAL COVER

24

IR96740188

WASHER

25

IR95922233

WASHER
