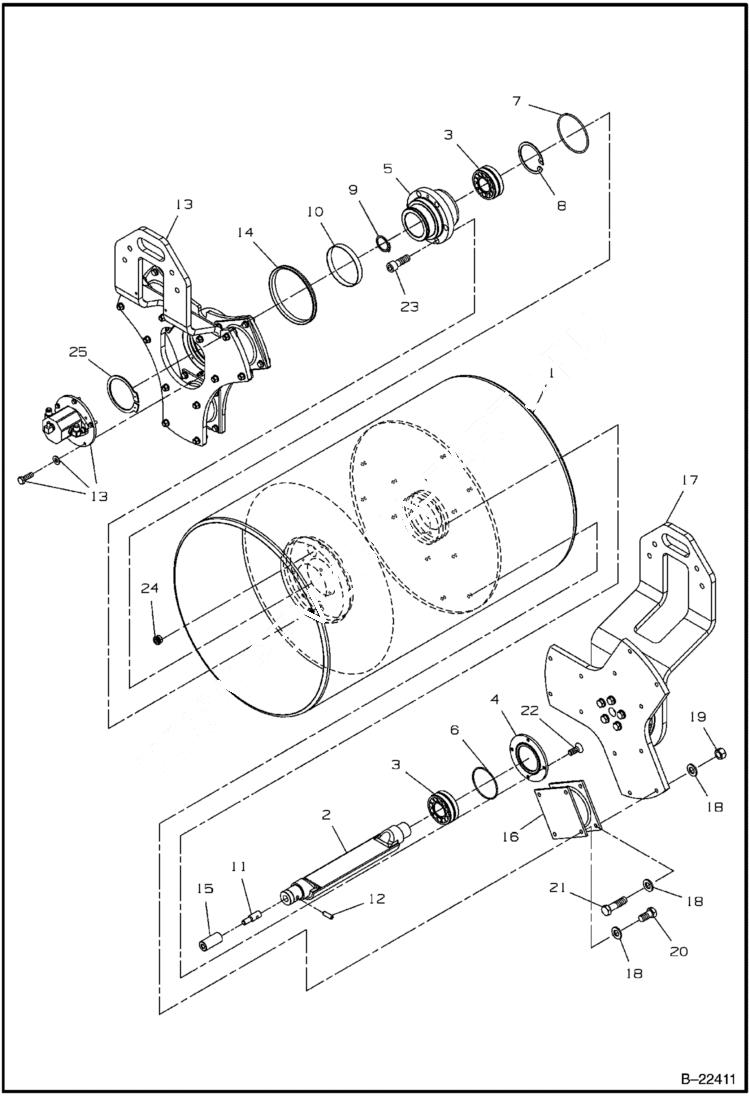

Запчасти Bobcat BCA24 DRUM ASSEMBLY DRUM

1

IR13227491

DRUM 49'' Drum

1

IR13227517

DRUM 47'' drum - optional

2

IR13214606

WEIGHT eccentric

3

IR13185756

BEARINGS eccentric

4

IR59389239

COVER bearing

5

IR59278028

HOUSING bearing

6

IR95988879

O-RING

7

IR95989612

O-RING

8

IR95223178

RING

9

IR95223434

RETAINING RING

10

IR59539064

WEAR SLEEVE

11

IR59475087

SPLINE SHAFT

12

IR95098695

ROLL PIN

13

VIBRATION DRIVE See Illustration VIBRATION DRIVE ASSEMBLY/ B22412 ASSY

14

IR59027755

V-RING SEAL

15

IR59278036

COUPLING

16

IR59600205

SHOCK

17

DRIVE MOTOR See Illustration DRIVE MOTOR ASSEMBLY/ B22413 ASSY

18

IR96738596

washer

19

IR96704291

Nut

20

IR96701495

SCREW

21

IR96702667

BOLT

22

IR96718069

BOLT

23

IR96708284

BOLT

24

IR59144428

MAGNETIC PLUG

25

IR96711510

RETAINING RING
