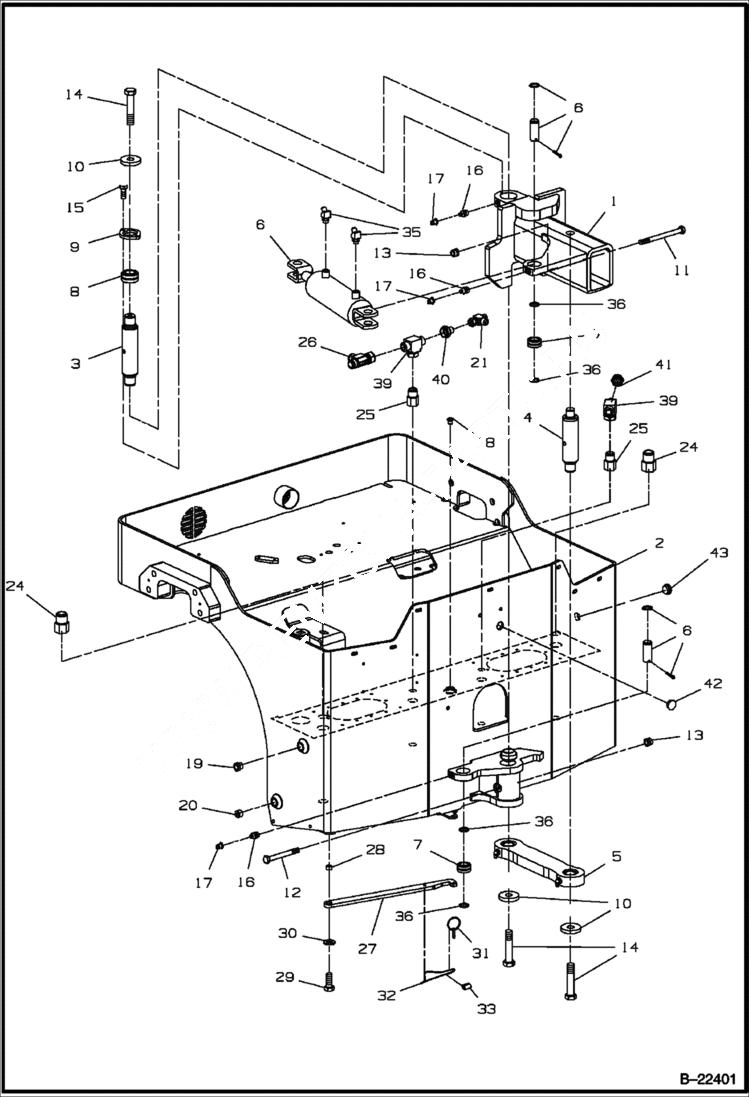

Запчасти Bobcat BCA24 MAIN FRAME MAIN FRAME

1

IR13275417

REAR FRAME

2

IR13290846

FRONT FRAME BCA 24

2

IR59918482

GASKET tank cover

2

IR59024208

CLEAN OUT LID

2

IR96721196

BOLT

3

IR59265959

PIN

4

IR59265942

PIN

5

Swivel Link See Illustration SWIVEL LINK ASSEMBLY/ B22402 - NLA - assembly - Was IR59211300 - D

6

IR59269563

CYLINDER steering

6

IR95077467

NUT

6

IR54505854

Cotter Pin

6

IR54505862

Retaining Ring

6

IR54505870

Clevis Pin

6

IR54505896

SEAL KIT

7

IR50275445

Bearing

8

IR50268127

BEARING

9

IR59271320

LOCKPLATE

10

IR59180992

CAP

11

IR96712104

BOLT

12

IR96713474

BOLT Was IR96704739 - A

13

IR96712807

LOCKNUT Was IR96704614 - A

14

IR96705066

BOLT

15

IR96702824

BOLT

16

IR95201547

GREASE FITTING

17

IR50270248

Cap

18

IR59093351

FILTER breather filtered vent

19

IR59121954

Sight Plug

20

IR95263190

Pipe Plug

21

IR95416731

TEE SWIVEL

24

IR95279022

FITTING

25

IR95293320

ADAPTER

26

IR95739306

TEE

27

IR59214544

LOCKBAR

28

IR59214585

BUSHING

29

IR96702287

BOLT

30

IR96714308

WASHER hardened - Was IR96741046 - A

31

IR59214270

Hitch Pin

32

IR59436741

CABLE

33

IR59214775

SLEEVE cable

35

IR95363339

Elbow 45 degree

36

IR59258079

SPACER

39

IR95657730

TEE

40

IR59672709

ADAPTER

41

IR59743013

REDUCER

42

IR59876219

PLUG

43

IR59328195

PLUG
