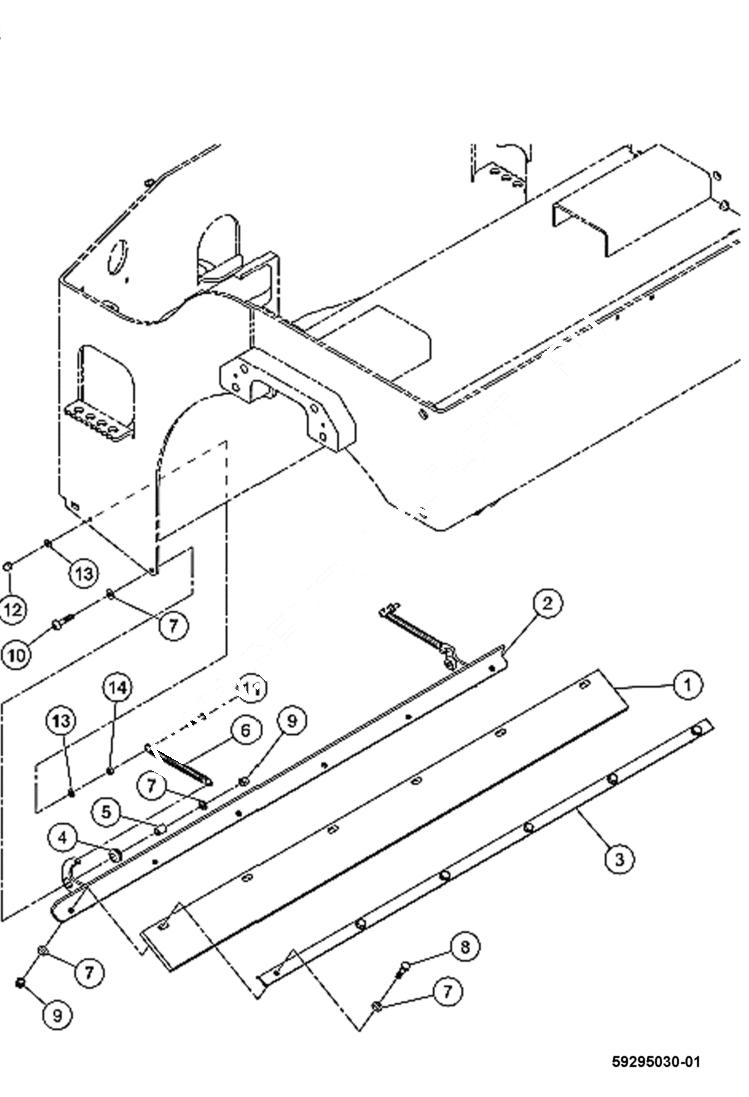

Запчасти Bobcat BCA24 INSIDE SCRAPER (Optional) MAIN FRAME

1

IR59272419

INSIDE SCRAPER 47''

1

IR13171954

SCRAPER inside - 49''

1

IR13166996

SCRAPER urethane - optional - 47''

1

IR13213202

SCRAPER inside - urethane - optional - 47''

1

IR13172044

SCRAPER, URETHANE optional - 49''

1

IR13213210

SCRAPER inside - urethane - 49''

1

IR59272443

INSIDE SCRAPER 52''

1

IR13212725

SCRAPER inside - 54''

1

IR13167002

SCRAPER urethane - 52''

1

IR13213186

SCRAPER inside - urethane - 52''

1

IR13212733

SCRAPER urethane - 54''

1

IR13213194

SCRAPER inside - urethane - 54''

2

IR59271841

SUPPORT scraper - 47''

2

IR13171970

SUPPORT scraper - 49''

2

IR59272401

SUPPORT scraper - 52''

2

IR13212709

SUPPORT scraper - 54''

3

IR59272088

BACKING BAR 47''

3

IR13171962

BACKING BAR 49''

3

IR59272229

BACKING PLATE 52''

3

IR13209747

BAR backing - 54''

4

IR54494638

Grommet

5

IR59256966

BUSHING

6

IR59946111

SPRING

7

IR96714308

WASHER

8

IR96713342

CAPSCREW

9

IR96712807

LOCKNUT

10

IR96740048

BOLT

11

IR96740030

BOLT

12

IR96740055

NUT

13

IR96712898

WASHER

14

IR96701370

Nut
