INSIDE SCRAPER (Optional)

Запчасти Bobcat BCA14 INSIDE SCRAPER (Optional) HYDRAULIC SYSTEM

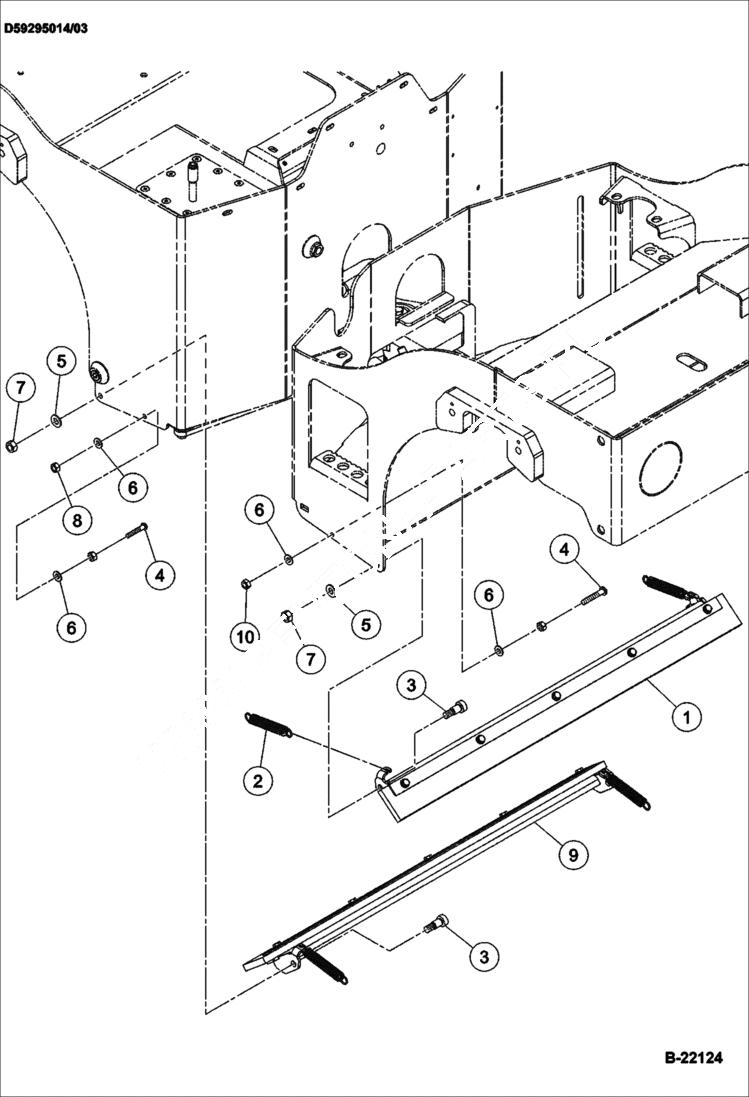

Схема запчастей Bobcat BCA14 - INSIDE SCRAPER (Optional) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Scraper Assy See Illustration REAR INSIDE SCRAPER ASSEMBLY/ B22125 - rear inside

2

IR54590831

Spring extension

3

IR96739594

Screw

4

IR96740030

BOLT

5

IR96714308

WASHER Was IR96741046 - A

6

IR96712898

WASHER Was IR96741038 - A

7

IR96704812

NUT

8

IR96701370

Nut

9

Scraper Assy See Illustration FRONT INSIDE SCRAPER ASSEMBLY/ B22126 - front inside

10

IR96740055

NUT
