Запчасти Bobcat BCA14 TURN SIGNAL & HAZARD LAMP (Optional) ELECTRICAL SYSTEM

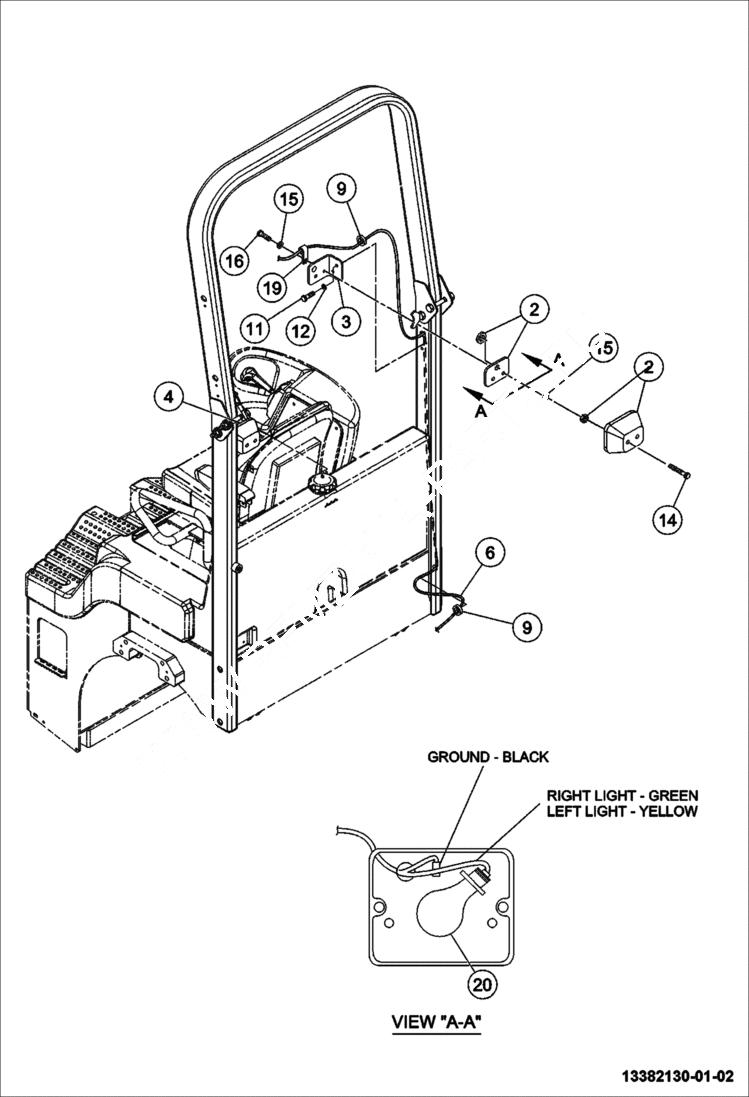

Схема запчастей Bobcat BCA14 - TURN SIGNAL & HAZARD LAMP (Optional) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

2

IR13929328

LAMP rear

2

IR13247366

BULB rear lamp

2

IR13247374

BULB 5 watt - rear lamp

3

IR13250550

BRACKET RH Light

4

IR13250568

BRACKET LH Light

6

IR13282603

HARNESS turn signal/hazard light

6

IR59465591

FUSE 5 amp

9

IR54514716

GROMMET

11

IR96705587

BOLT

12

IR96712898

WASHER Was IR96741038 - A

14

IR13236906

NUT

15

IR96738547

washer

16

IR96743653

SCREW

19

IR59371922

CLAMP

20

IR13250386

LIGHT BULB

Выбрано товаров: 15
