SEAT ASSEMBLY

Запчасти Bobcat BCA14 SEAT ASSEMBLY CONSOLE

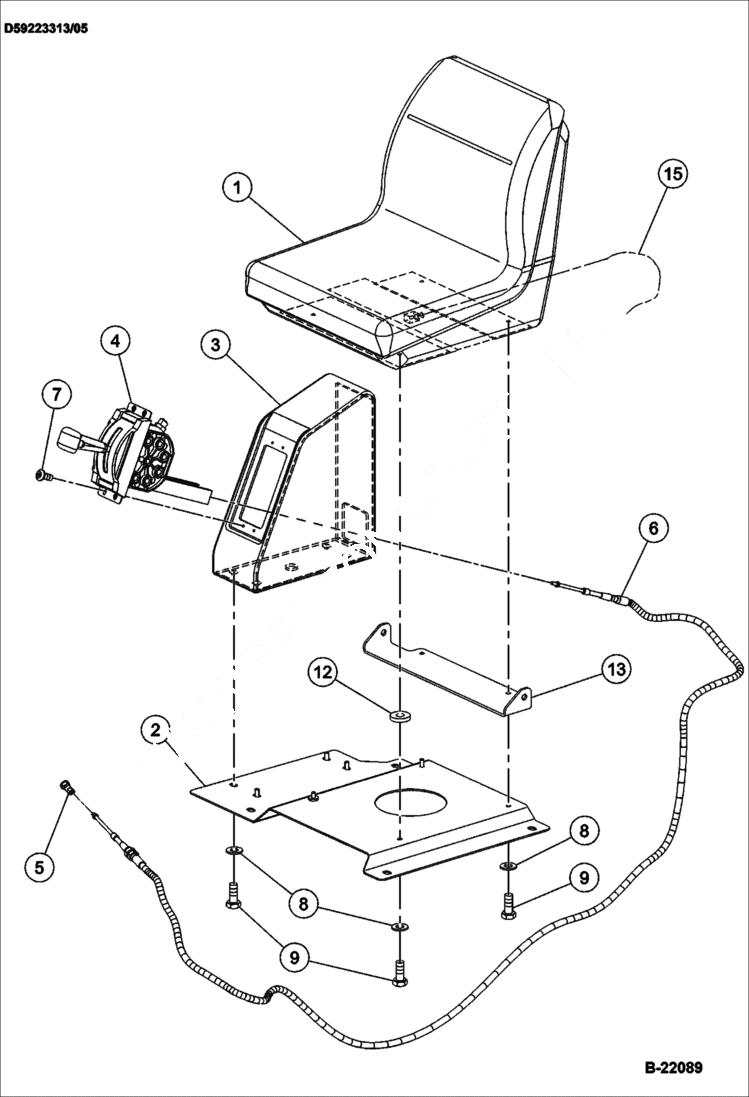

Схема запчастей Bobcat BCA14 - SEAT ASSEMBLY CONSOLE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SEAT NLA - Was IR13198221 - A

1

IR59142174

SEAT SWITCH shut-off kit

2

IR59266932

Seat Plate

3

IR59257121

F-S-R HOUSING

4

IR13316377

CONTROL See Illustration F-STOP-R CONTROL/ B22132 F-STOP-R - Was IR59257790 - A

5

IR59463786

BALL JOINT

6

IR59214312

F-S-R CABLE

7

IR13198015

BOLT

8

IR96712898

WASHER Was IR96741038 - A

9

IR96702824

BOLT

12

IR96712674

Washer

13

IR59266858

Bracket seat belt

15

IR59093203

Harness seat switch
