TRACTION SYSTEM

Запчасти Bobcat BCA14 TRACTION SYSTEM POWER UNIT

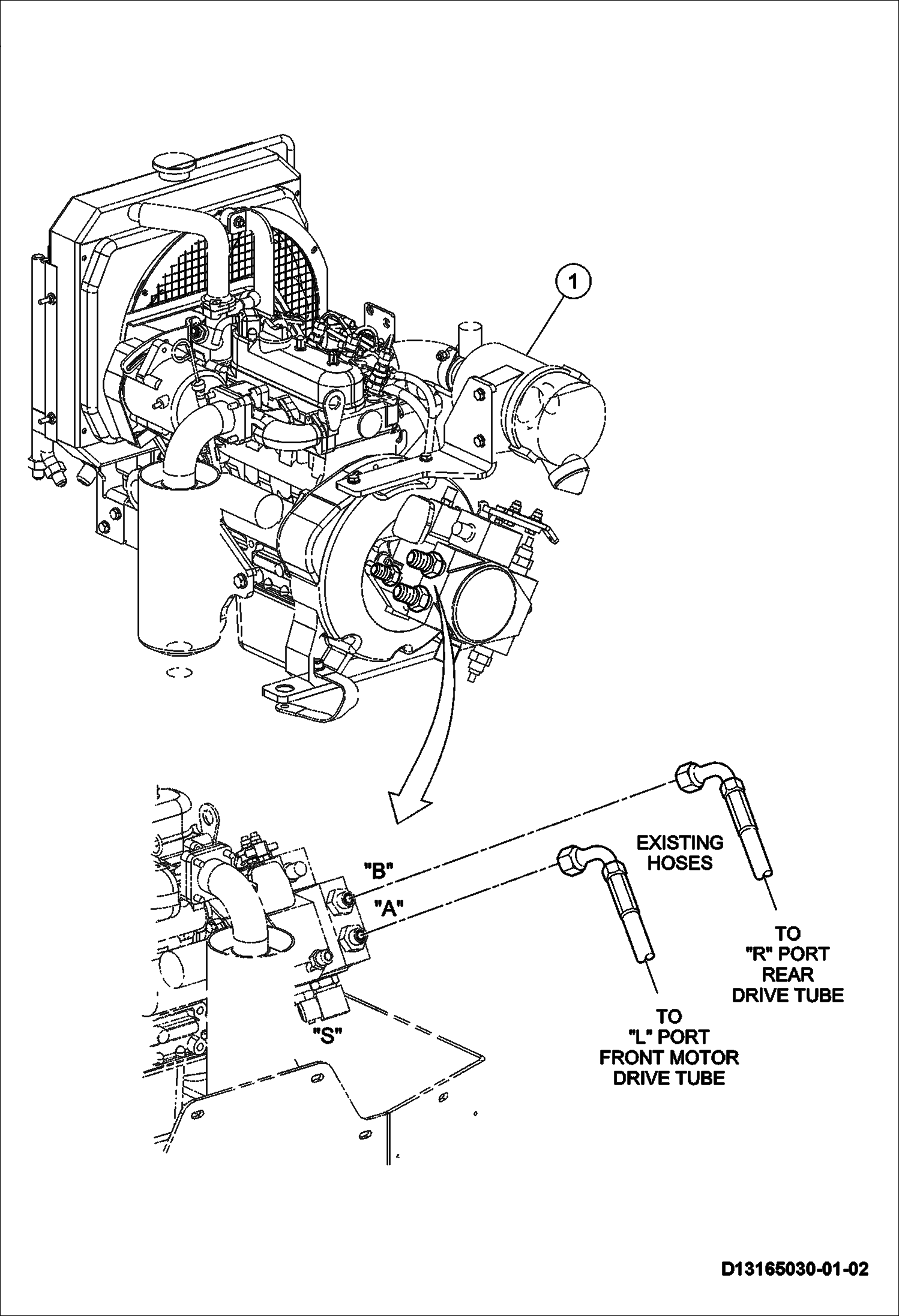

Схема запчастей Bobcat BCA14 - TRACTION SYSTEM POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ENGINE NSS - traction system assy

1

ENGINE See Illustration ENGINE & ATTACHING PARTS/ B22077 - assembly

1

IR59210260

Pump See Illustration PROPULSION PUMP/ B22128 - propulsion

1

IR59271221

BRACKET propulsion cable mounting

1

IR59271239

ARM LEVER propulsion

1

IR96702261

SCREW

1

IR96704606

NUT

1

IR59922518

ADAPTER straight
