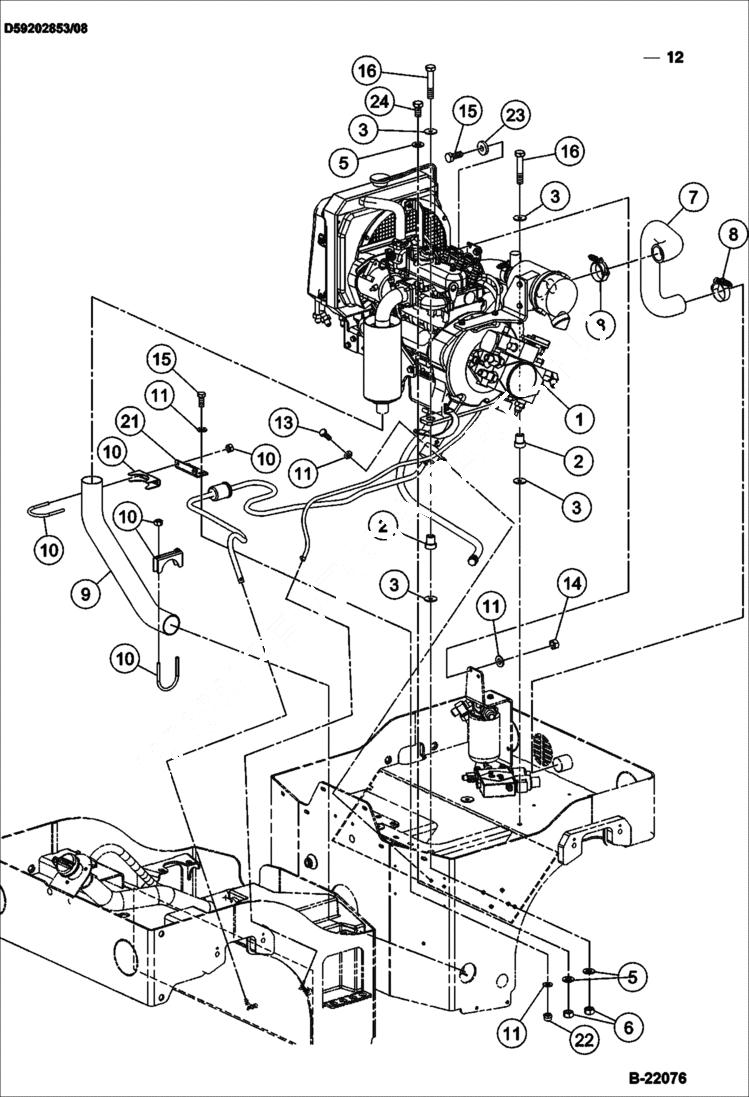

Запчасти Bobcat BCA14 ENGINE POWER UNIT

1

ENGINE See Illustration ENGINE & ATTACHING PARTS/ B22077

2

IR59223495

SHOCK MOUNT

3

IR59302927

WASHER

5

IR96714308

WASHER Was IR96741046 - A

6

IR96704812

NUT

7

IR59213959

INTAKE HOSE intake hose

8

IR54680038

CLAMP t-bolt spring - Was IR59184903 - A

9

IR13250717

PIPE, EXHAUST Was IR59258806 - D

10

IR59495010

CLAMP

11

IR96712898

WASHER Was IR96741038 - A

12

IR96741053

WASHER not shown

13

IR96701958

BOLT

14

IR96701370

Nut

15

IR96702824

BOLT

16

IR96704317

BOLT

21

IR59258814

BRACKET exhaust

22

IR96704606

NUT

23

IR96712674

Washer

24

IR96702279

BOLT
