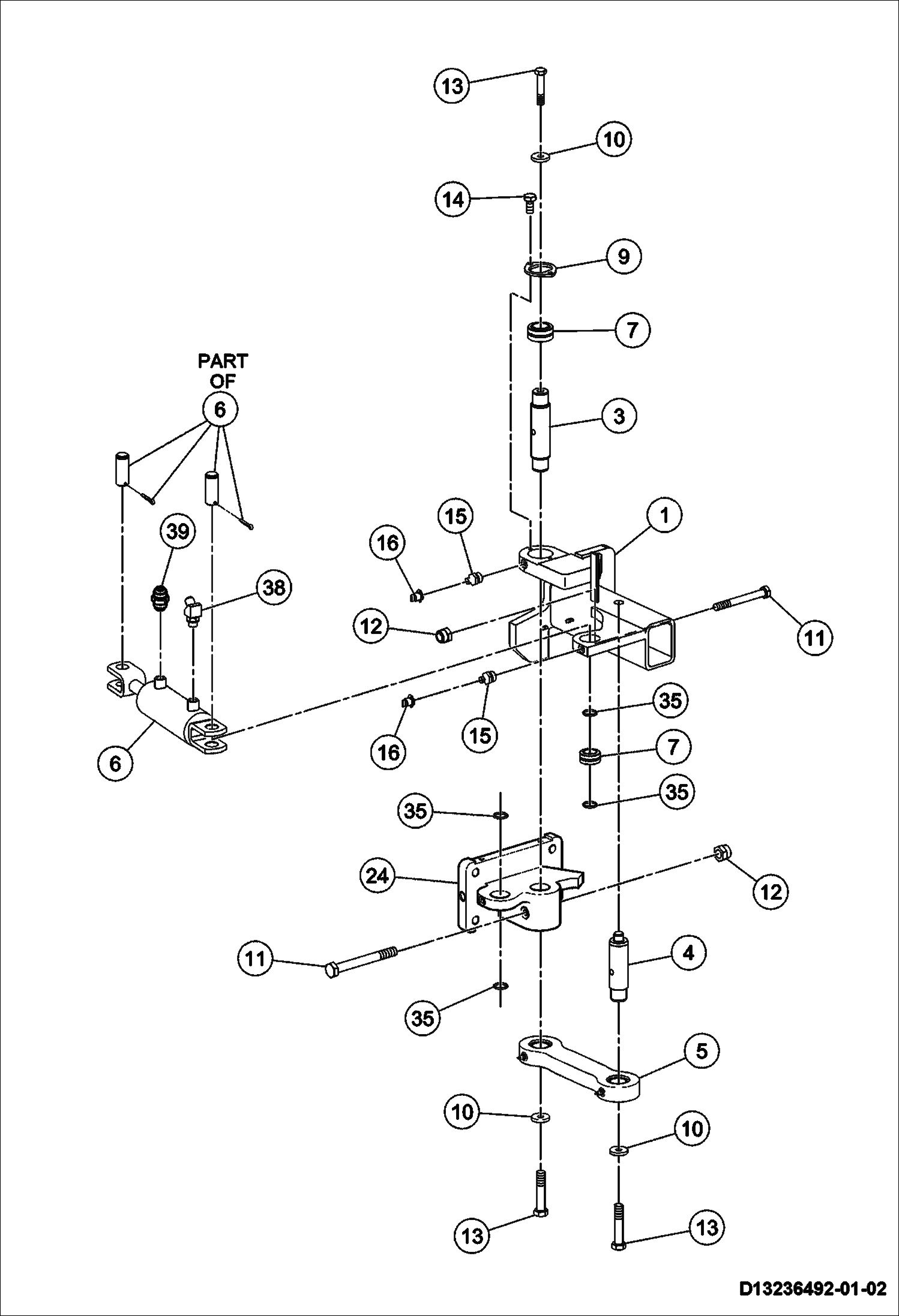

Запчасти Bobcat BCA14 OFFSET & SWIVEL INSTALLATION OPTIONAL MAIN FRAME

1

IR13279963

REAR FRAME

3

IR59265975

PIN

4

IR59265991

PIN

5

SWIVEL LINK ASSEMBLY See Illustration SWIVEL LINK ASSEMBLY/ B22067

6

IR59269555

Cylinder steering

6

IR54505854

Cotter Pin

6

IR54505821

Nut

6

IR54505862

Retaining Ring

6

IR13444005

PIN, CLEVIS 3.41''

6

IR13444013

PIN 2.56''

6

IR54505888

Seal Kit

7

IR96738612

washer

9

IR59180646

LOCKPLATE

10

IR59180992

CAP

11

IR96704739

BOLT

12

IR96712807

LOCKNUT Was IR96704614 - A

13

IR96705066

BOLT

14

IR96702816

BOLT

15

IR95201547

GREASE FITTING

16

IR50270248

Cap

24

OFFSET SWIVEL ASSEMBLY See Illustration OFFSET SWIVEL ASSEMBLY/ D13292271-00

35

IR59258079

SPACER

38

IR95363339

Elbow 45 degree

39

IR95365078

ADAPTER
