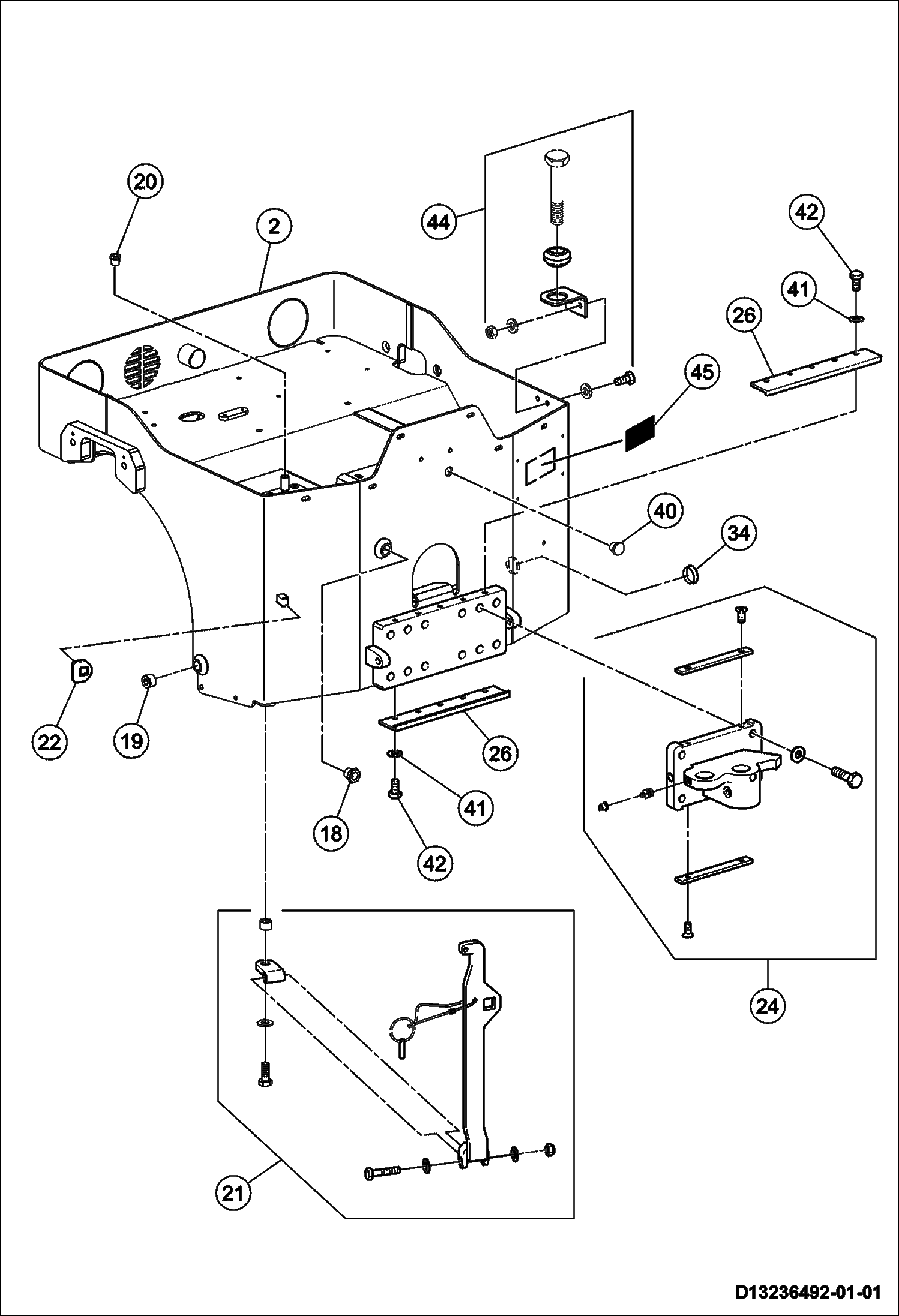

Запчасти Bobcat BCA14 OFFSET & SWIVEL INSTALLATION - OPTIONAL OPTIONAL MAIN FRAME

2

IR13206933

FRAME front - offset

2

IR13305099

GASKET tank cover

2

IR59272138

CLEAN OUT LID

2

IR96721196

BOLT

18

IR59121954

Sight Plug

19

IR95263190

Pipe Plug

20

IR59093351

FILTER vent breather

21

LOCKBAR ASSEMBLY See Illustration LOCKBAR ASSEMBLY/ D13292289-00

22

IR13236278

LOCKBAR rubber

24

OFFSET SWIVEL ASSEMBLY See Illustration OFFSET SWIVEL ASSEMBLY/ D13292271-00

26

IR13222005

SIDE CHANNEL side

34

IR59328195

PLUG hole

40

IR59992677

PLASTIC PLUG

41

IR96712898

WASHER Was IR96741038 - A

42

IR96705587

BOLT

44

IR13292347

ASSSEMBLY adjust bolt stowage

44

IR13279336

BRACKET stowage

44

IR59636985

GROMMET rubber

44

IR96740592

BOLT

44

IR96710470

WASHER

44

IR96711965

SCREW

44

IR96704705

NUT

45

IR13282249

DECAL for offset function
