Запчасти Bobcat BCA14 HOOD & TRIM (S/N 4917 11051 & Above) MAIN FRAME

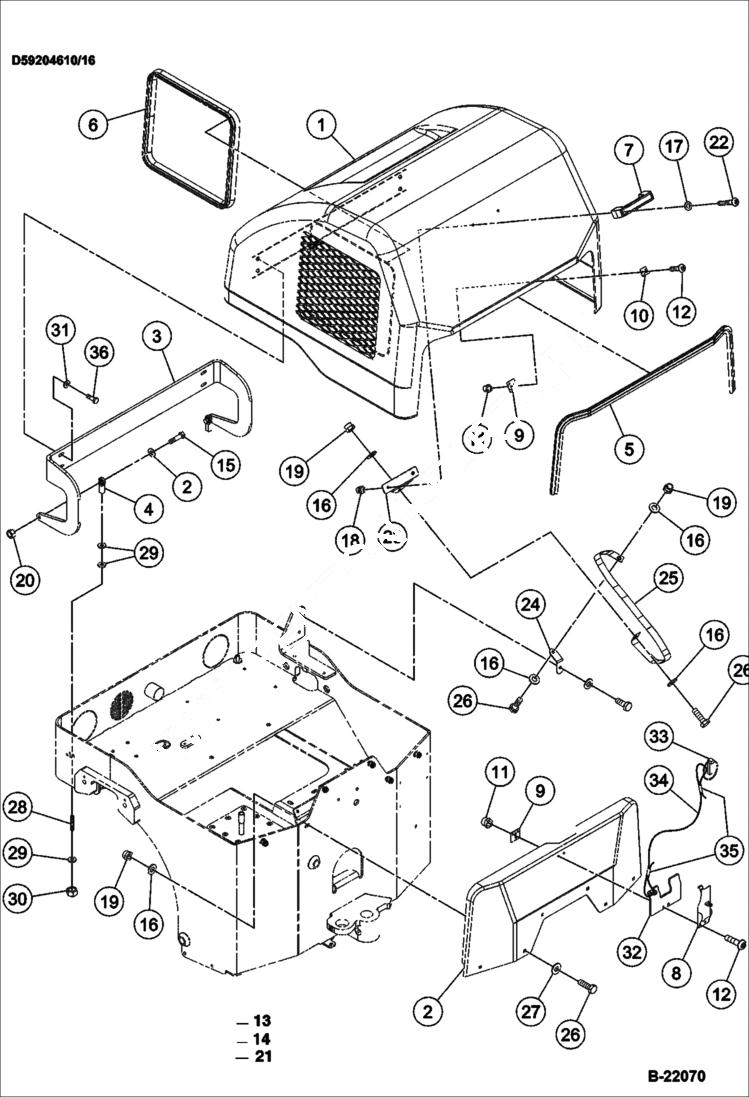

Схема запчастей Bobcat BCA14 - HOOD & TRIM (S/N 4917 11051 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

IR13396346

HOOD Was IR59208710 - A

2

IR13274915

PLATE filler - Was IR59208728 - A

3

IR59258574

Hood Hinge

4

IR59274803

Rod End

5

IR59208736

SEAL TRIM 1275''

6

IR59208835

SEAL TRIM 1275''

7

IR54469390

GRAB HANDLE

8

IR13233242

LATCH

9

IR13236799

BACKING PLATE

10

IR13236831

KEEPER LATCH

11

IR13236906

NUT

12

IR96720974

BOLT

12

IR96727953

BOLT

15

IR95919254

BOLT

16

IR96712898

WASHER Was IR96741038 - A

17

IR96738554

washer

18

IR96704580

LOCKNUT

19

IR96704606

NUT

20

IR95922894

Nut

21

IR96714308

WASHER Was IR96741046 - A

22

IR59266551

BOLT

23

IR59269191

BACKING PLATE

24

IR59269829

PLATE strap mounting

25

IR13207055

HOOD STRAP

26

IR96702659

BOLT

27

IR95922183

WASHER

28

IR54651575

THREADED STUD

29

IR96711833

washer

30

IR59329649

Nut

31

IR96712674

Washer

32

IR13297775

TETHER PLATE

33

IR13298286

PIN lynch

34

IR59436741

CABLE

35

IR59214775

SLEEVE cable

36

IR96705587

BOLT

Выбрано товаров: 35
