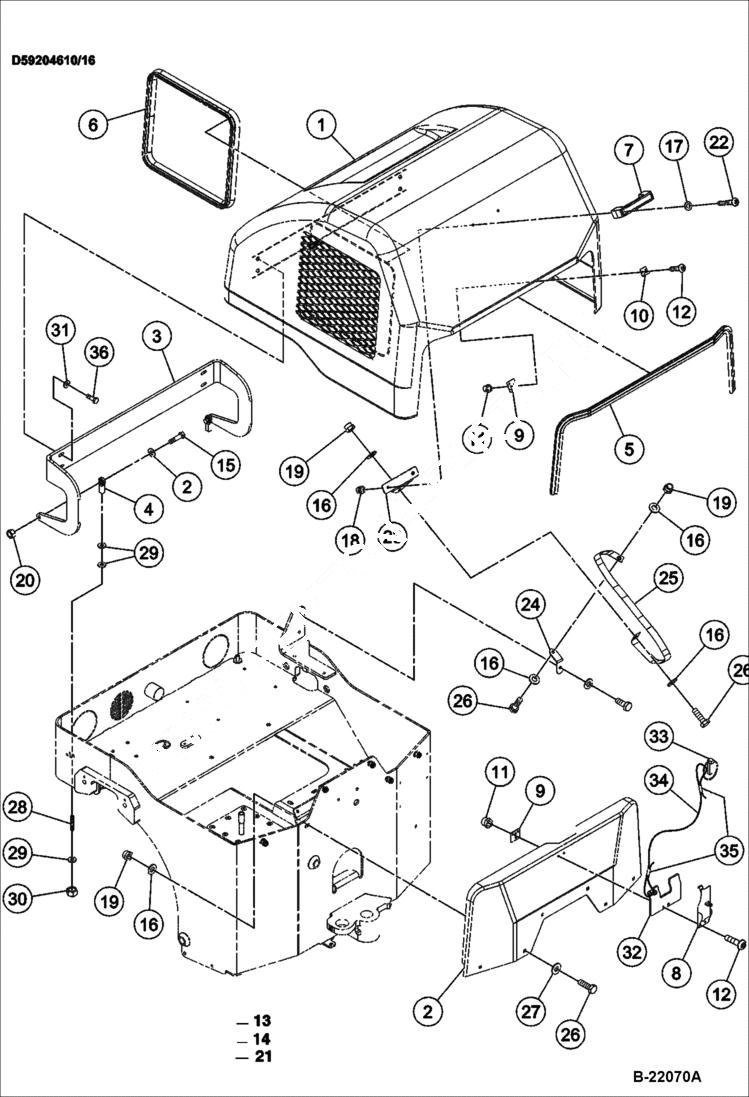

Запчасти Bobcat BCA14 HOOD & TRIM (S/N 4917 11050) MAIN FRAME

1

IR59208710

HOOD

2

IR59208728

FILLER PLATE

3

IR59258574

Hood Hinge

4

IR59274803

Rod End

5

IR59208736

SEAL TRIM 1275''

6

IR59208835

SEAL TRIM 1275''

7

IR54469390

GRAB HANDLE

8

IR59259010

LATCH

9

IR59259150

Backing Plate

10

IR59259127

Keeper Latch

11

IR59259143

Backing Plate

12

IR59266726

BOLT

13

IR96719224

BOLT

13

IR96702287

BOLT

14

IR95920799

SCREW

14

IR95992442

BOLT

15

IR95919254

BOLT

16

IR96712898

WASHER Was IR96741038 - A

17

IR96738554

washer

18

IR96704580

LOCKNUT

19

IR96704606

NUT

20

IR95922894

Nut

21

IR96714308

WASHER Was IR96741046 - A

22

IR59266551

BOLT

23

IR59269191

BACKING PLATE

24

IR59269829

PLATE strap mounting

25

IR13207055

HOOD STRAP

26

IR96702659

BOLT

27

IR95922183

WASHER

28

IR54651575

THREADED STUD

28

IR59298737

SPACER SLOTTED

29

IR96711833

washer

30

IR59329649

Nut

31

IR96712674

Washer

32

This item not used with this assembly

33

This item not used with this assembly

34

This item not used with this assembly

35

This item not used with this assembly

36

This item not used with this assembly
