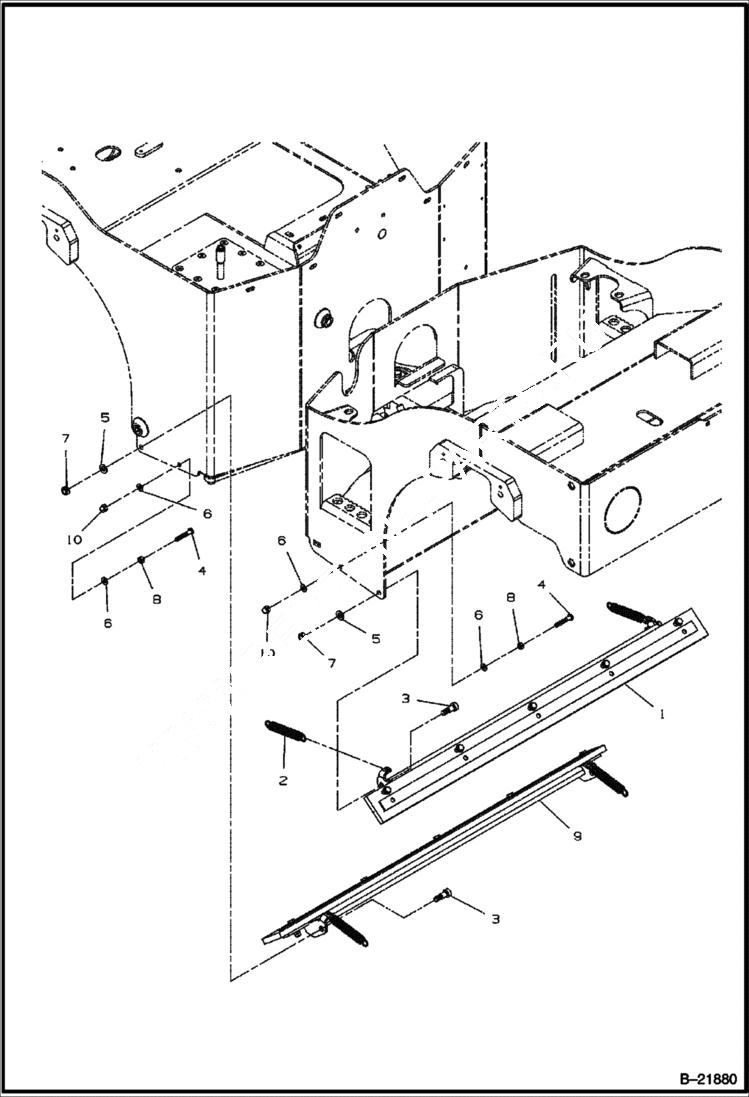

Запчасти Bobcat BCA12 INSIDE SCRAPER INSTALLATION (Optional) HYDRAULIC SYSTEM

1

Scraper Assy See Illustration REAR INSIDE SCRAPER ASSEMBLY/ B21881 - rear inside

2

IR54590831

Spring extension

3

IR96739594

Screw

4

IR96740030

BOLT

5

IR96714308

WASHER Was IR96741046 - A

6

IR96712898

WASHER Was IR96741038 - A

7

IR96704812

NUT

8

IR96701370

Nut

9

Scraper Assy See Illustration FRONT INSIDE SCRAPER ASSEMBLY/ B21882 FRONT INSIDE

10

IR96740055

NUT
