SCRAPER ASSEMBLY (Optional)

Запчасти Bobcat BCA12 SCRAPER ASSEMBLY (Optional) WATER SYSTEM

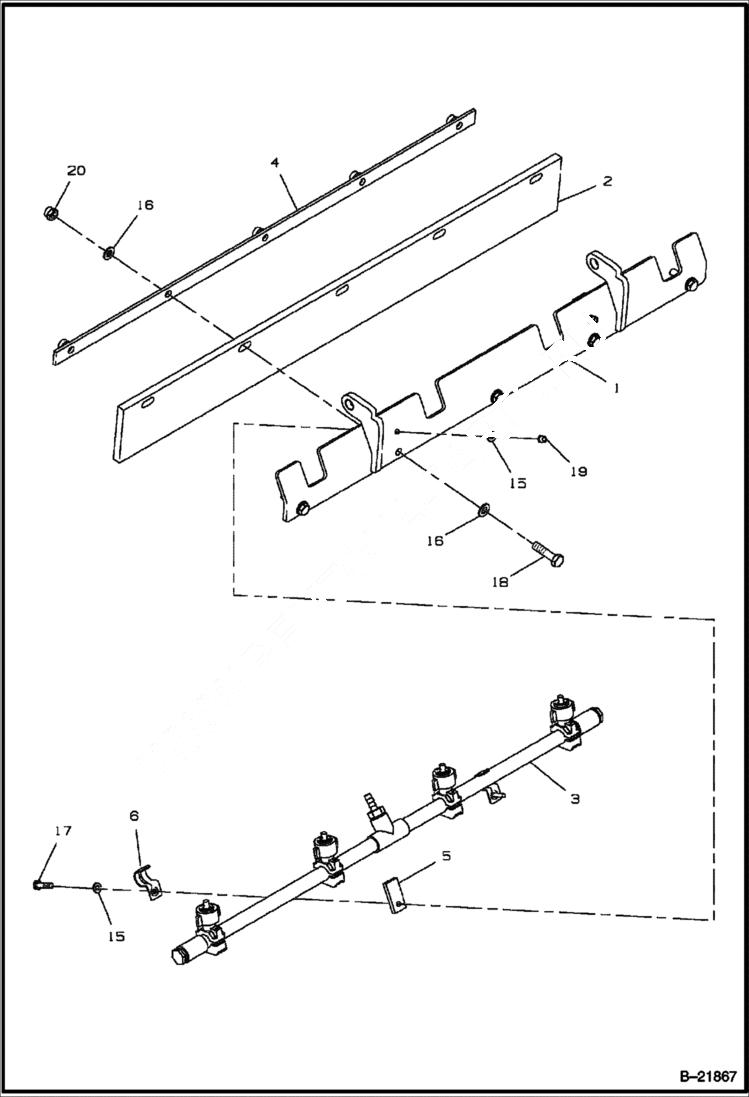

Схема запчастей Bobcat BCA12 - SCRAPER ASSEMBLY (Optional) WATER SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IR59271643

BRACKET scraper

2

IR59258525

Scraper rubber

2

IR13166962

Scraper urethane - optional

3

Tube Assy See Illustration SPRAY TUBE ASSEMBLY/ B21868 - spray

4

IR59271601

Backing Plate scraper

5

IR59225144

Rubber Pad

6

IR59225169

Pipe Clamp

15

IR96741053

WASHER

16

IR96714308

WASHER Was IR96741046 - A

17

IR96714258

SCREW Was IR96701461 - A

18

IR96713342

CAPSCREW Was IR96704358 - A

19

IR96704598

LOCKNUT

20

IR96712807

LOCKNUT Was IR96704614 - A
