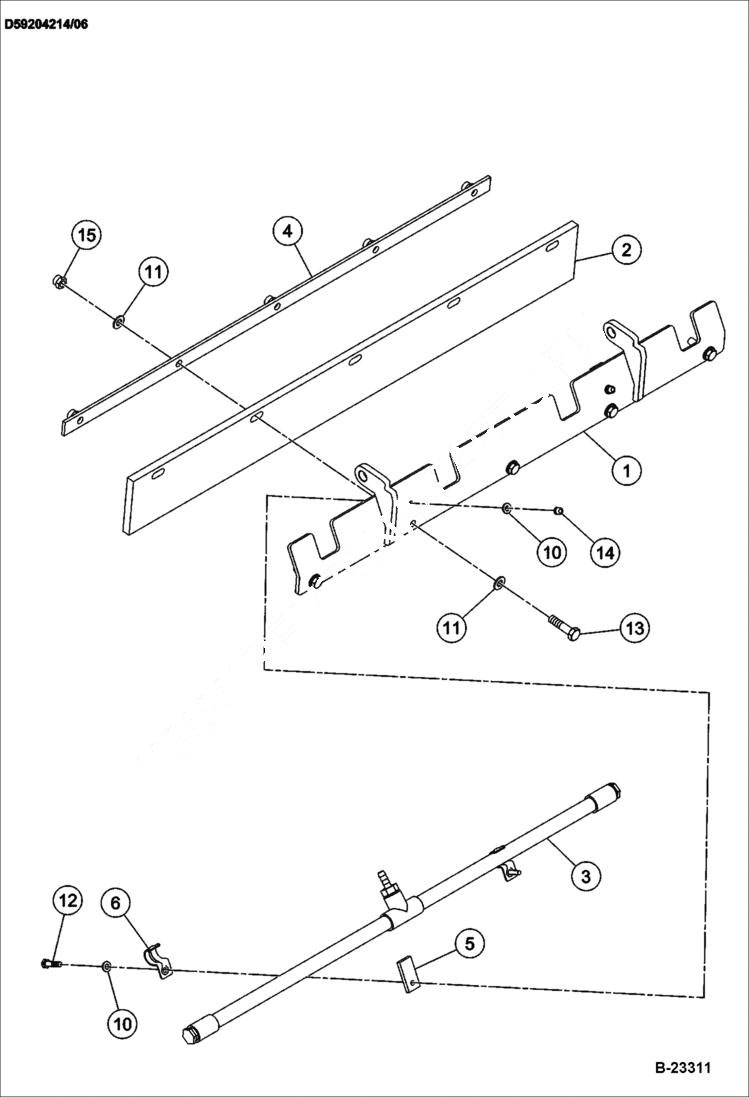

Запчасти Bobcat BCA12 SCRAPER ASSEMBLY WATER SYSTEM

1

IR59271643

BRACKET support

2

IR59258525

Scraper rubber

2

IR13166962

Scraper urethane - Optional

3

Drip Tube assy NSS

3

DRIP TUBE NSS - subassembly

3

IR59271619

Drip Tube NSS

3

IR59966556

Tee

3

IR59579573

ADAPTER

3

IR59579607

HOSE barb

3

IR59579599

PIPE PLUG pipe

4

IR59271601

Backing Plate

5

IR59225144

Rubber Pad

6

IR59225169

Pipe Clamp

10

IR96741053

WASHER

11

IR96714308

WASHER Was IR96741046 - A

12

IR96714258

SCREW Was IR96701461 - A

13

IR96713342

CAPSCREW Was IR96704358 - A

14

IR96704598

LOCKNUT

15

IR96712807

LOCKNUT Was IR96704614 - A
