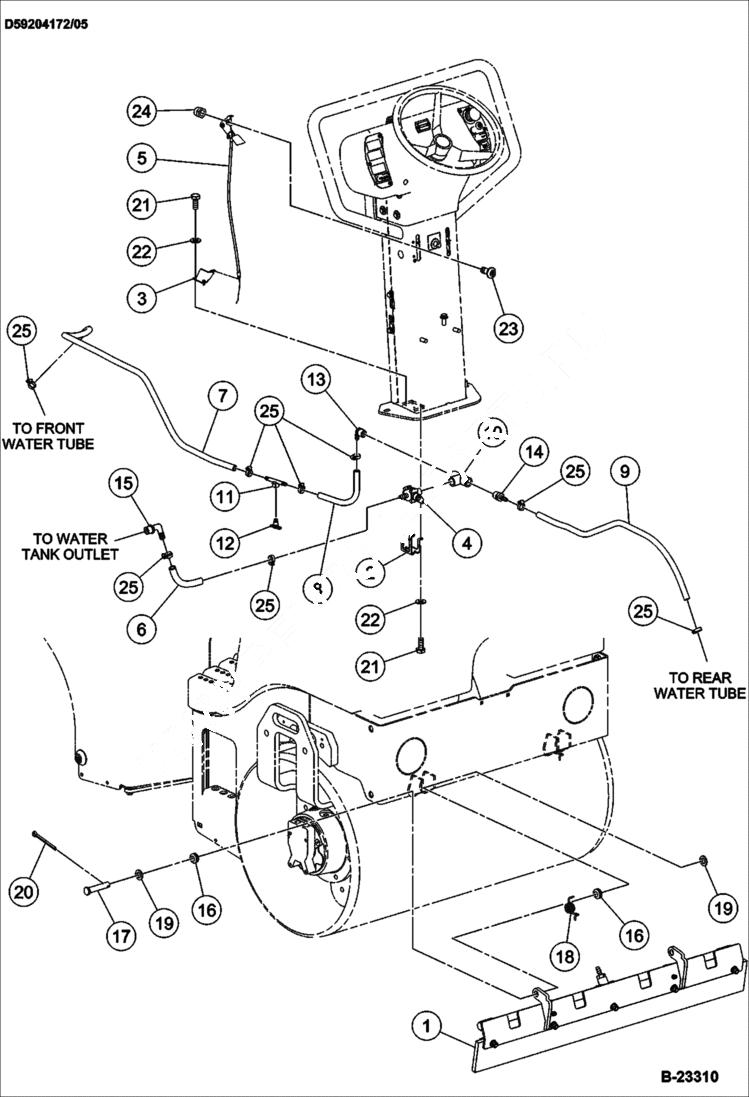

Запчасти Bobcat BCA12 WATER SYSTEM INSTALLATION WATER SYSTEM

1

Scraper Assy See Illustration SCRAPER ASSEMBLY/ B23311

2

IR59225227

Valve Strap

3

IR59225235

Bracket cable retaining

4

IR59225219

Valve plastic ball

5

IR59225284

Cable valve control

6

IR58754136

Hose 18.75''

7

IR59827691

HOSE 60''

8

IR59318204

HOSE ASSY 20''

9

IR59964601

Hose 40''

10

IR59642108

TEE

11

IR59572867

CONNECTOR hose

12

IR95250692

Drain

13

IR59118240

Elbow male

14

IR59579607

HOSE barb

15

IR59642090

ELBOW male

16

IR54494638

Grommet insulation

17

IR59259432

Clevis Pin

18

IR59478743

SPRING

19

IR96738612

washer

20

IR95923926

COTTER PIN

21

IR96702378

BOLT

22

IR96738547

washer

23

IR59148569

BOLT

24

IR96704580

LOCKNUT

25

IR59363259

HOSE CLAMP
