BEACON LAMP INSTALLATION (Bent ROPS) (Optional)

Запчасти Bobcat BCA12 BEACON LAMP INSTALLATION (Bent ROPS) (Optional) ELECTRICAL SYSTEM

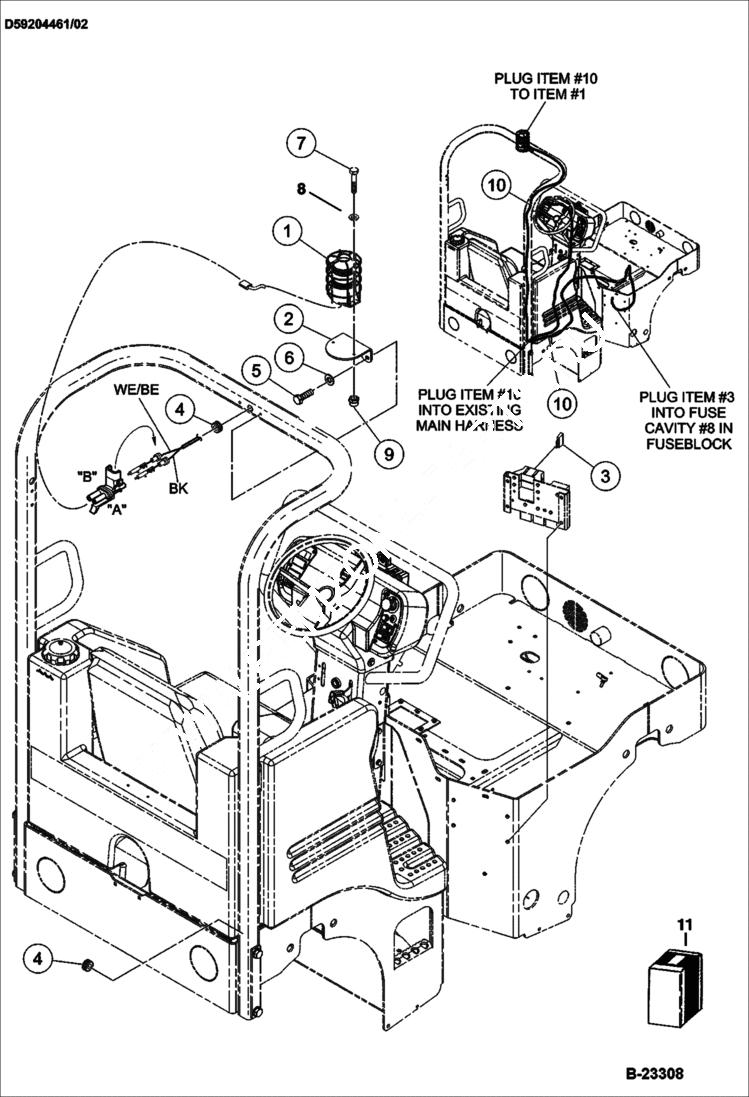

Схема запчастей Bobcat BCA12 - BEACON LAMP INSTALLATION (Bent ROPS) (Optional) ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IR59083105

BEACON LIGHT

1

IR59023077

LENS amber

1

IR59022871

Bulb

2

IR59272427

Bracket beacon light

3

IR59325712

Fuse 10 amp

4

IR54514716

GROMMET

5

IR96702659

BOLT

6

IR96712898

WASHER Was IR96741038 - A

7

IR96705744

BOLT

8

IR96738554

washer

9

IR96704580

LOCKNUT

10

IR59270256

ROPS HARNESS ROPS wire - Was IR59264614 - A

11

IR13222955

BEACON KIT installation
