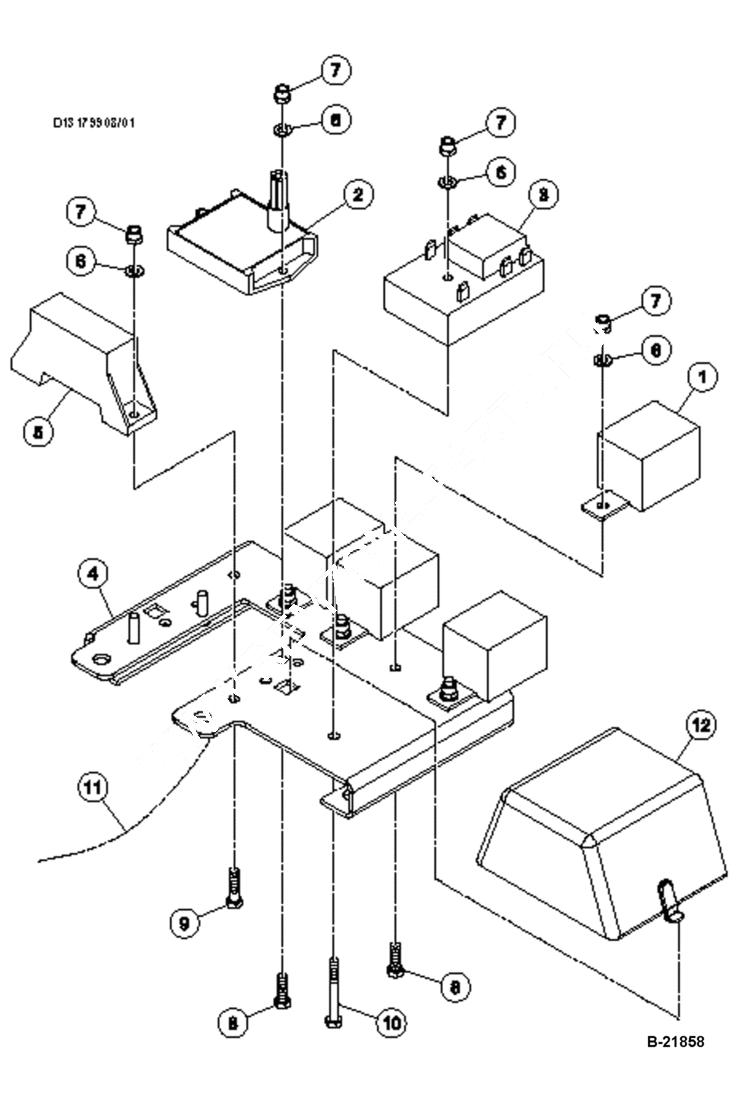

Запчасти Bobcat BCA12 MAIN WIRE HARNESS ASSEMBLY ELECTRICAL SYSTEM

1

IR58965377

RELAY power relay, starter relay & brake latching relay

2

IR54530415

Coil timer module pull coil

3

IR59151498

Timer Module

3

IR13349055

SEAT TIMER ASSEMBLY

3

IR13349923

SEAT TIMER

4

IR13289475

FUSE PLATE mounting - Was IR59274837 - D

5

IR59434290

FUSE BLOCK

5

IR59325712

Fuse 10 amp

6

IR96738554

washer

7

IR96702865

NUT

8

IR96705728

BOLT

9

IR96705736

BOLT

10

IR96705751

BOLT

11

IR13179916

Harness main wire

11

IR13470380

HARNESS main wire

12

IR59274811

Fuse Cover
